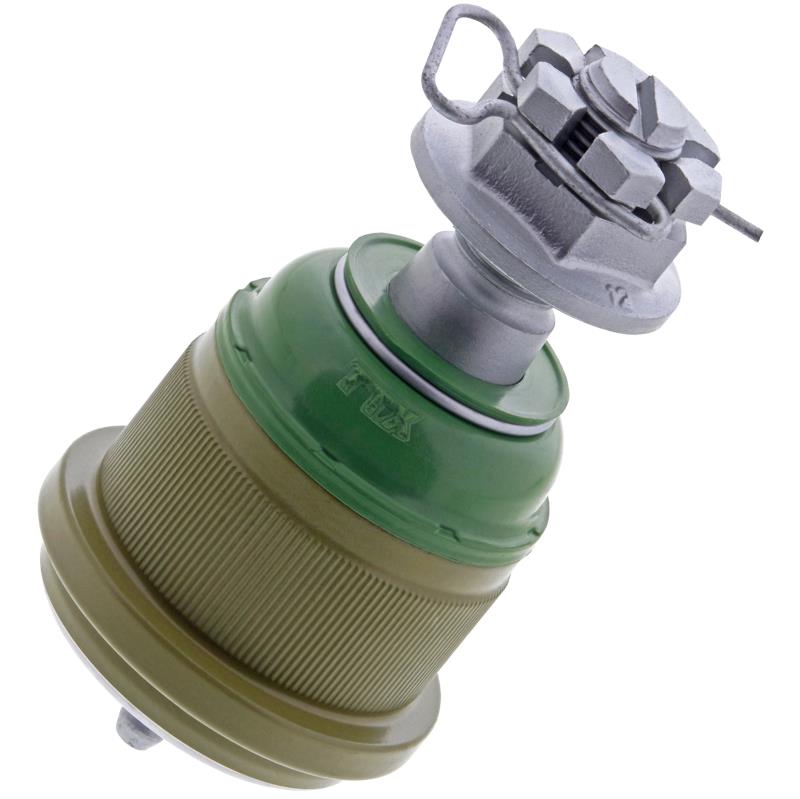

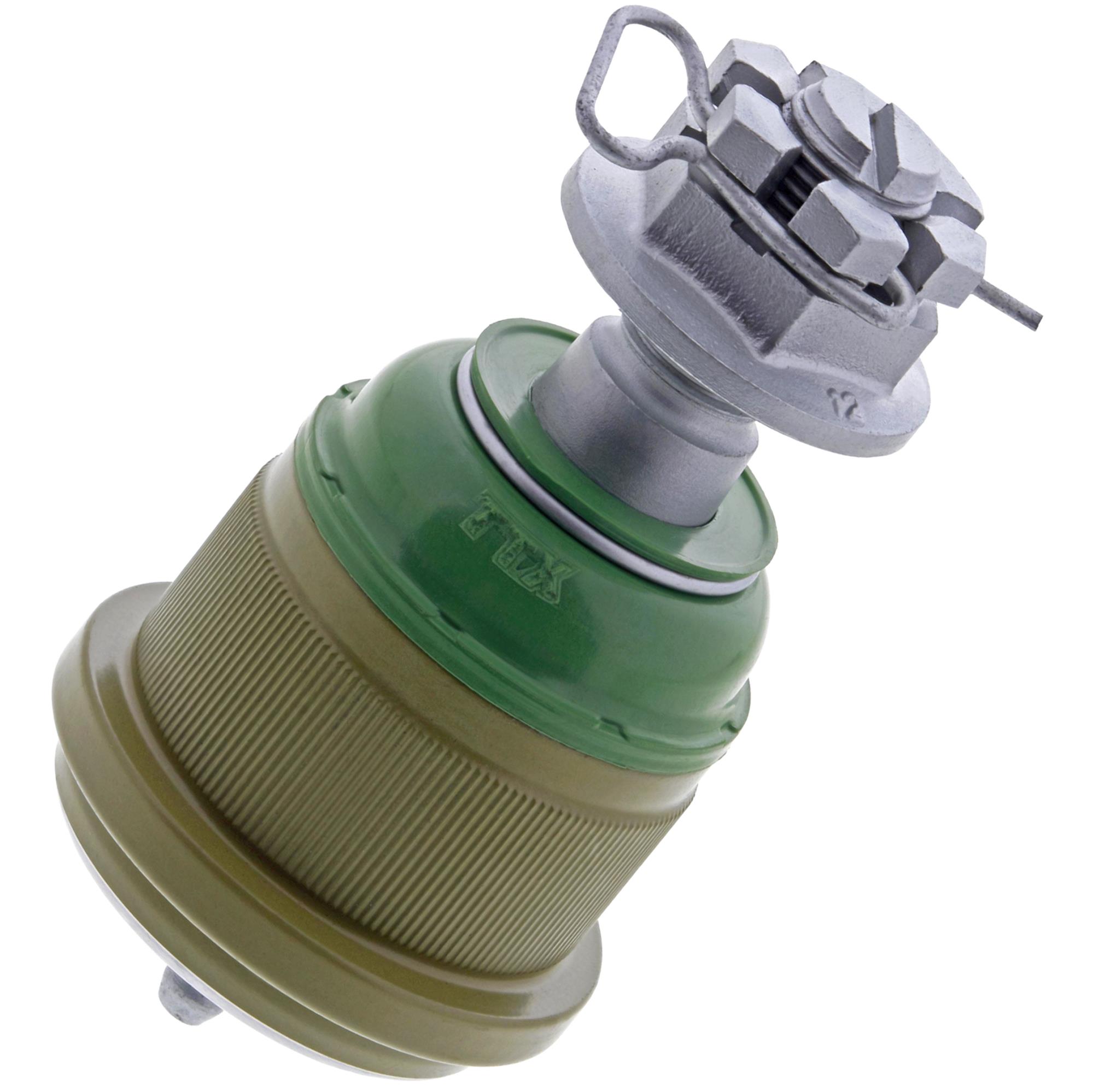

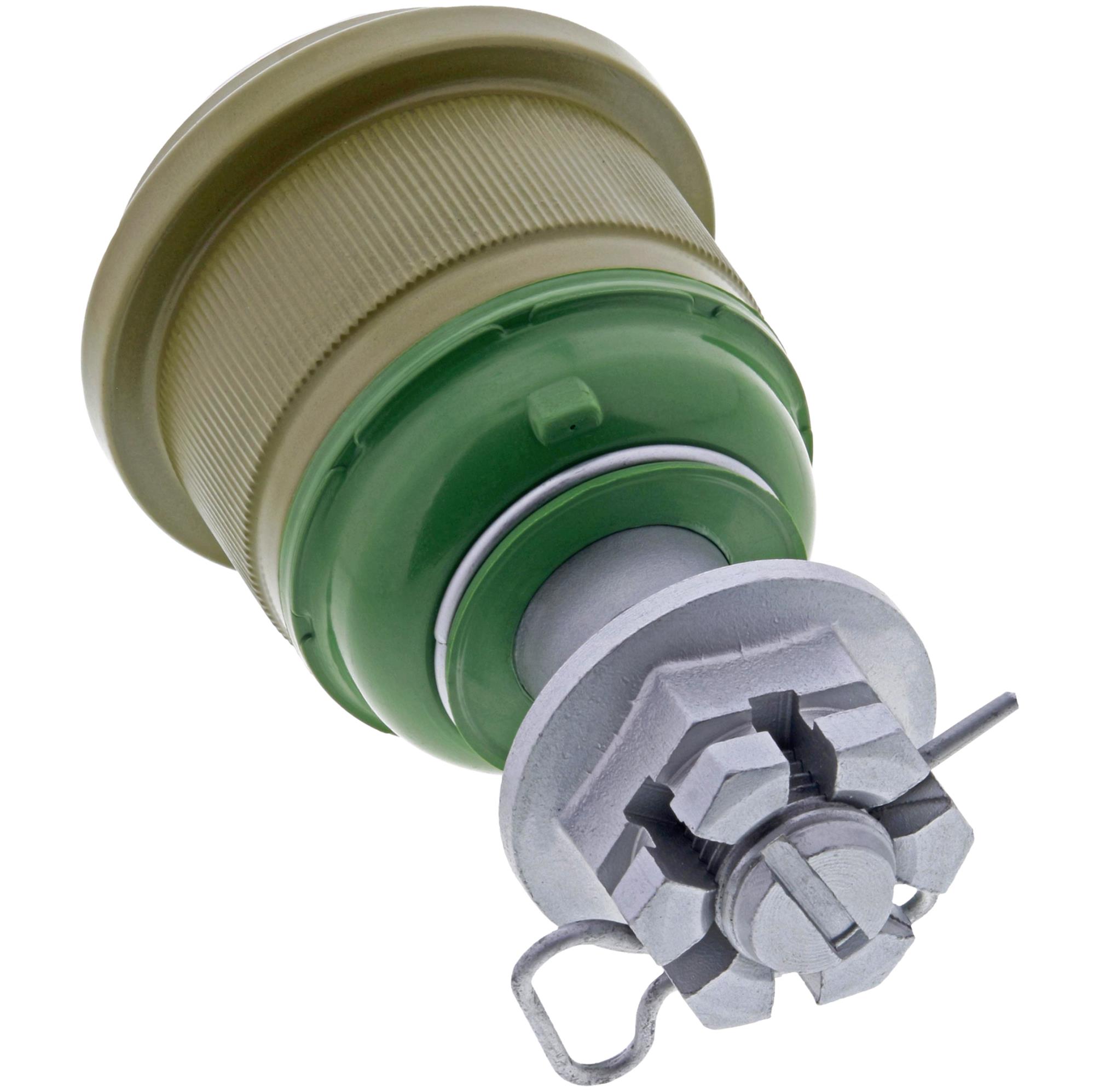

Part No: TXMS25506
Ball Joint
Mevotech TTX™ parts are engineered with cutting-edge technology to be the strongest, most durable parts on the market. Built for high-usage commercial and passenger vehicles, SUVs, fleets and working trucks, TTX™ ball joints deliver extreme performance. Plus, innovative Labor Saver™ designs, tools and hardware make installations faster and easier.
Details
- MAXIMUM TOUGHNESS: Get longer-lasting performance from patented sintered bearings.

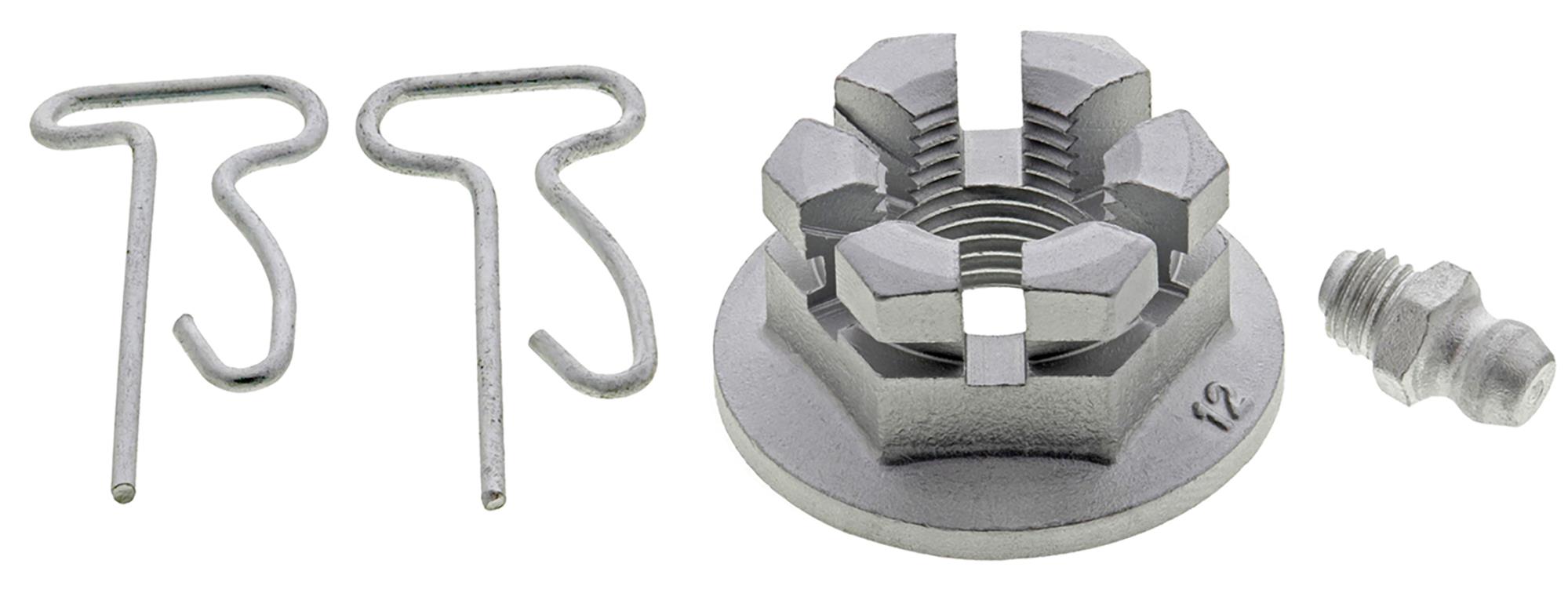

- QUICK AND EASY INSTALLATION: Simply secure ball joint to the vehicle with part specific slotted castle nut & easy snap cotter pin provided.

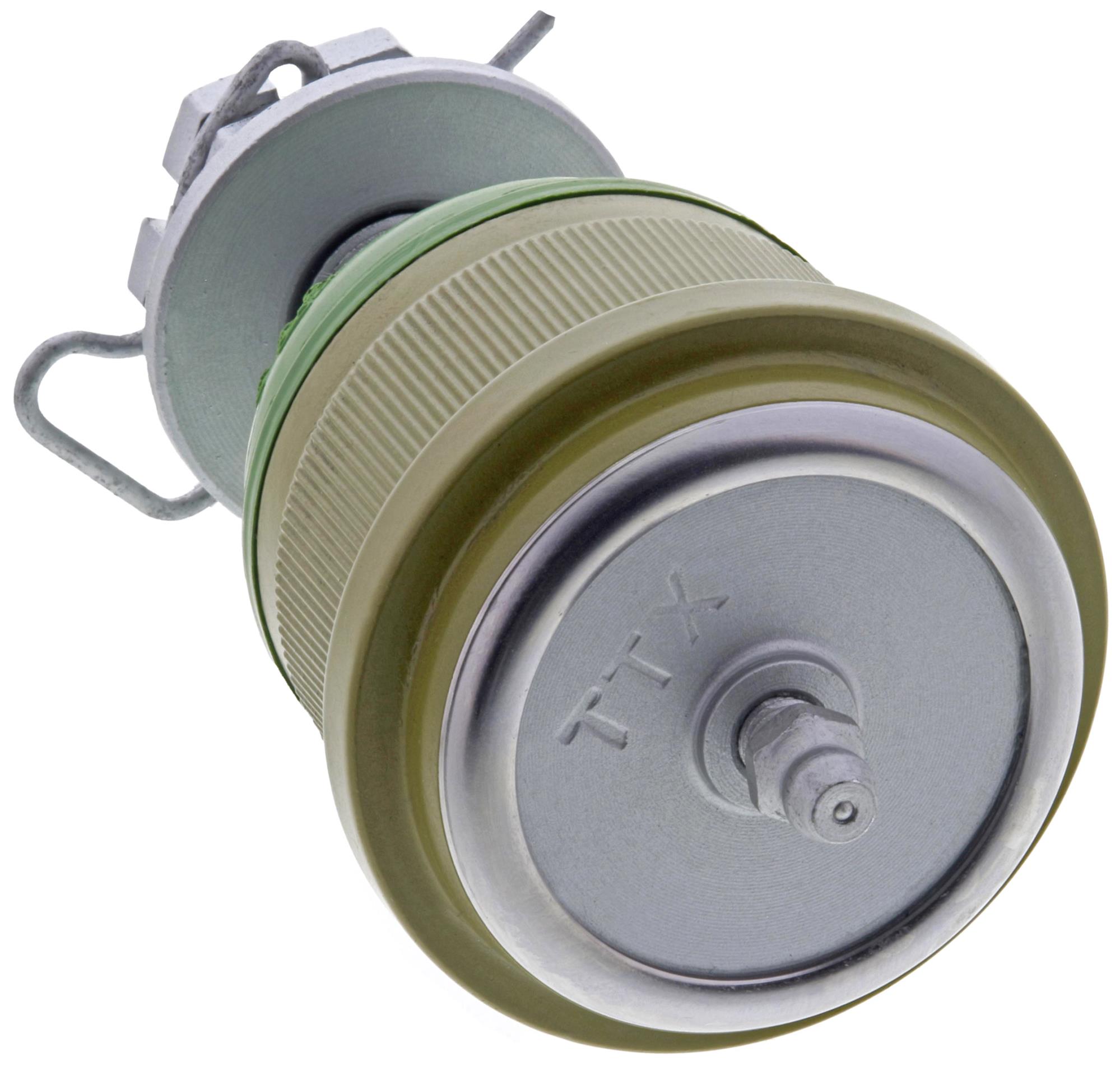

- SIMPLE TO SERVICE: Make servicing a snap with the 180 degree SAE grease fitting included.
- A STRONGER BOND: Keep fasteners secure and vibration resistant with pre-applied nylok thread adhesive.
- TIGHTER GRIP: Avoid distortion and corrosion with knurling that ensures a snugger fit between connecting points.
Product Specifications
- Ball Joint AssemblyYes
- Mounting TypePress-In
- Bearing TypeSintered Metal
- Pre-GreasedYes
- GreaseableYes
- Grease Fitting IncludedYes
- AdjustableNo
- Dust Boot IncludedYes
- Dust Boot MaterialNeoprene
- Boot ColorGreen
- Stud TypeThreaded
- Stud Thread SizeM16 – 1.5
- Mounting Hardware IncludedYes
- Castle Nut IncludedYes
- Cotter Pin IncludedYes
Product Fit Check
Buyers Guide
| Make | Model | Year Range | Position | Configuration | Application Notes | Vehicle QTY |
|---|---|---|---|---|---|---|
| Dodge | Ram 1500 | 2008-2006 | Front Upper | 4WD | Telescopic Ball Joint, with 8 Lug Wheels, Non-Adjustable Type, Improved Design | 2 |
| Dodge | Ram 2500 | 2010-2003 | Front Upper | 4WD | Telescopic Ball Joint, OE Type | 2 |
| Dodge | Ram 3500 | 2010-2003 | Front Upper | Telescopic Ball Joint, OE Type, Steering Type: Gear, Steering System: Power | 2 | |
| Ram | 2500 | 2014-2011 | Front Upper | 4WD | Telescopic Ball Joint, OE Type | 2 |
| Ram | 2500 | 2026-2014 | Front Upper | RWD | Telescopic Ball Joint | 2 |
| Ram | 2500 | 2026-2015 | Front Upper | 4WD | Telescopic Ball Joint | 2 |
| Ram | 3500 | 2012-2011 | Front Upper | Telescopic Ball Joint, OE Type, Steering Type: Gear, Steering System: Power | 2 | |
| Ram | 3500 | 2013 | Front Upper | Telescopic Ball Joint, OE Type, Num Doors: 2, Cab & Chassis | 2 | |
| Ram | 3500 | 2013 | Front Upper | Telescopic Ball Joint, OE Type, Num Doors: 4, Cab & Chassis | 2 | |
| Ram | 3500 | 2013 | Front Upper | 4WD | Telescopic Ball Joint, OE Type, Num Doors: 2, Standard Cab Pickup | 2 |
| Ram | 3500 | 2013 | Front Upper | 4WD | Telescopic Ball Joint, OE Type, Num Doors: 4, Crew Cab Pickup | 2 |
| Ram | 3500 | 2014 | Front Upper | Telescopic Ball Joint, OE Type | 2 | |
| Ram | 3500 | 2026-2015 | Front Upper | Telescopic Ball Joint | 2 |
