Part No: CTXMS251269

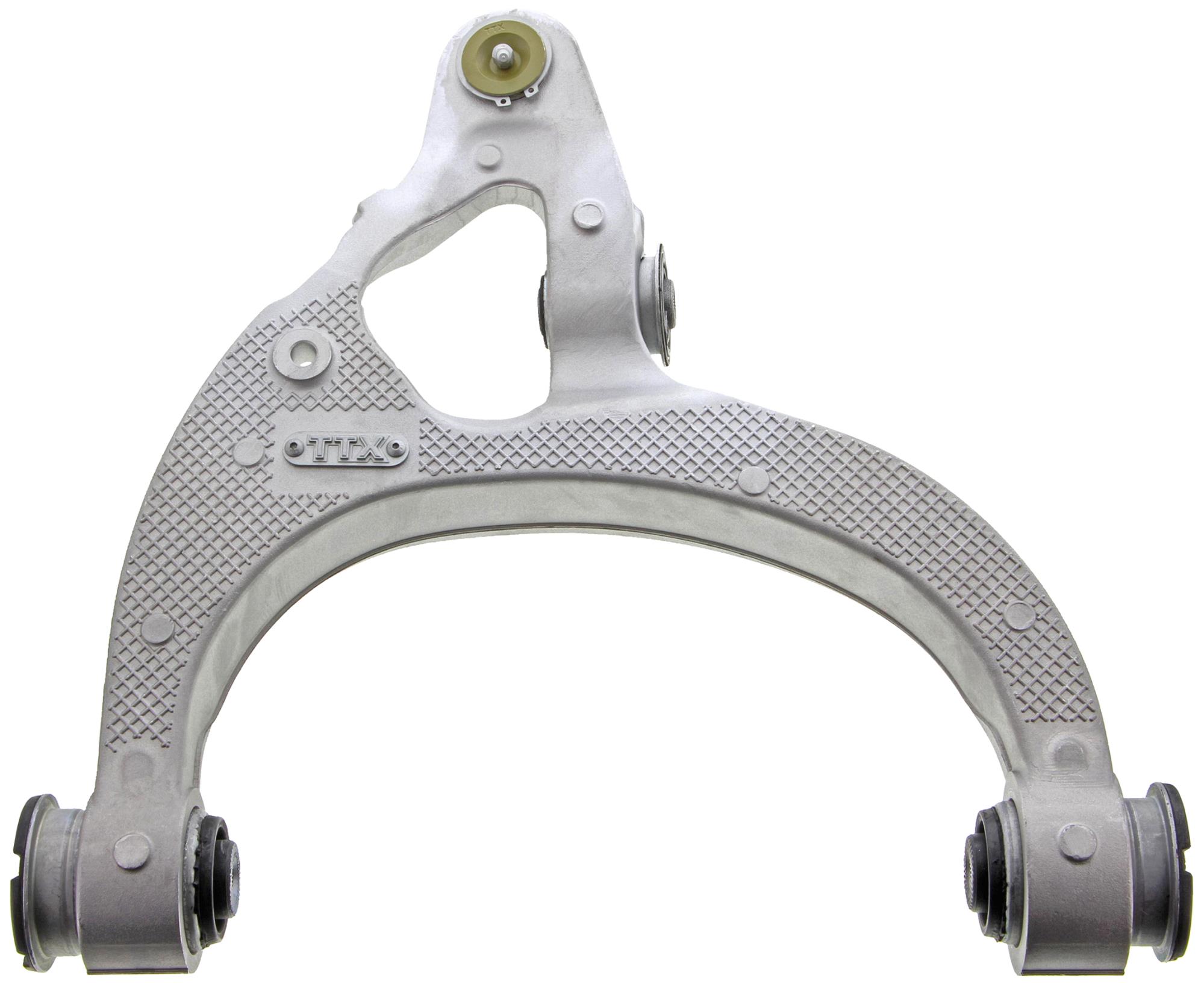

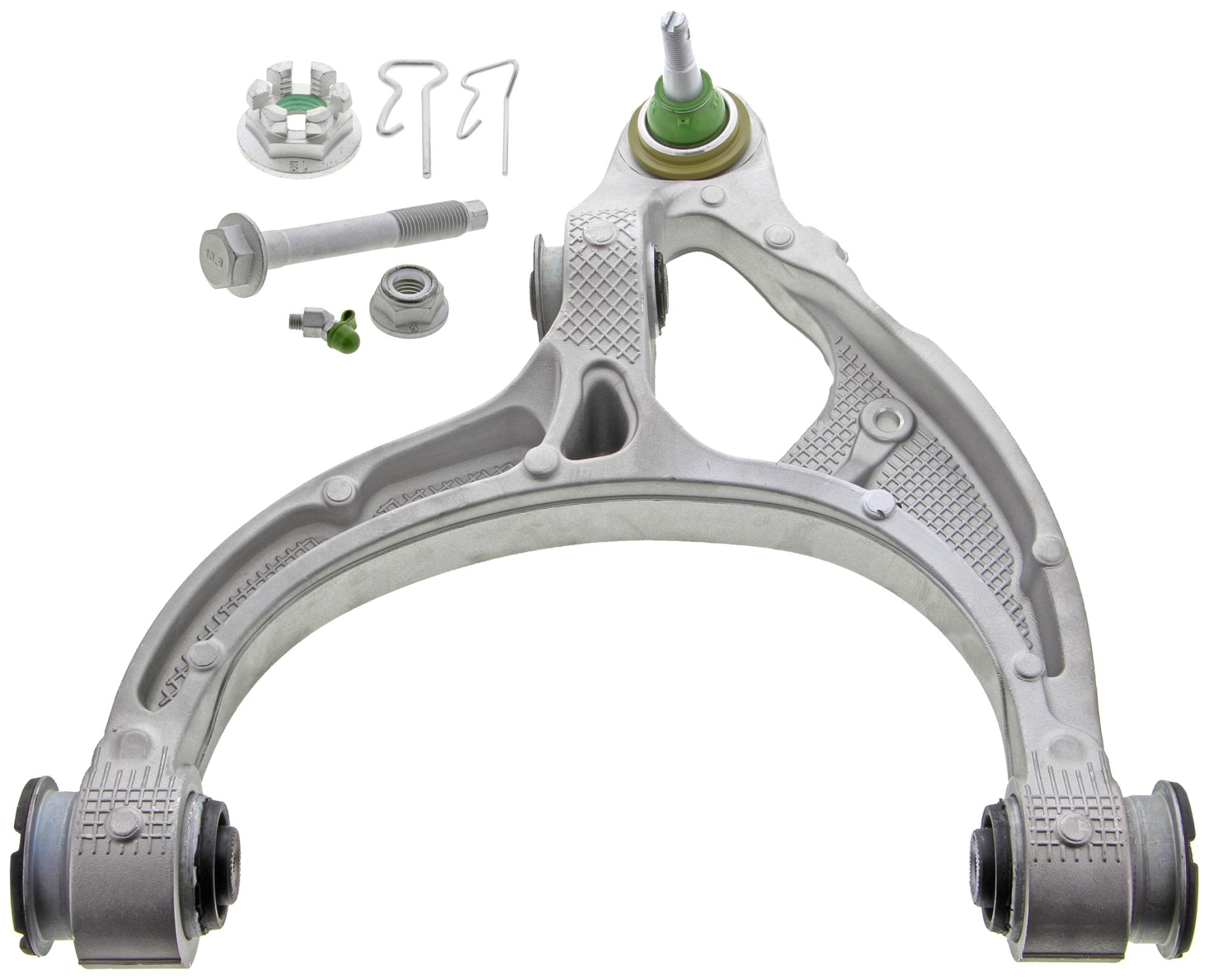

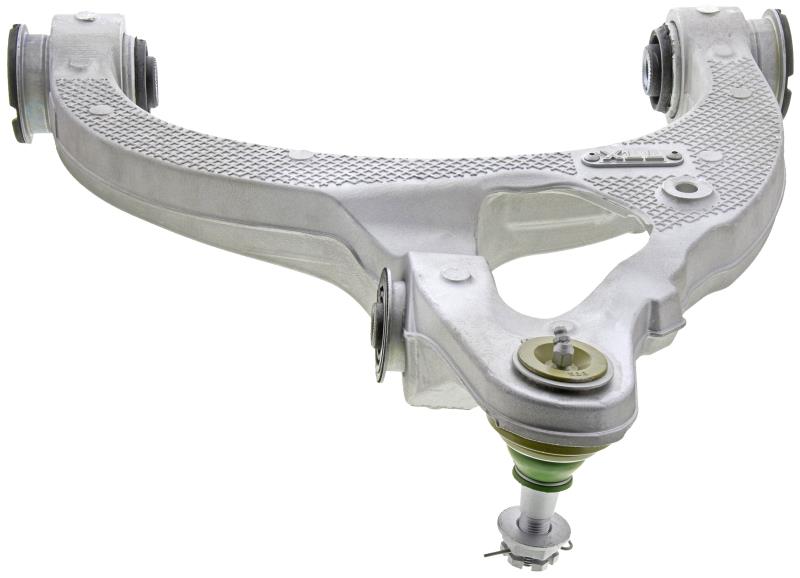

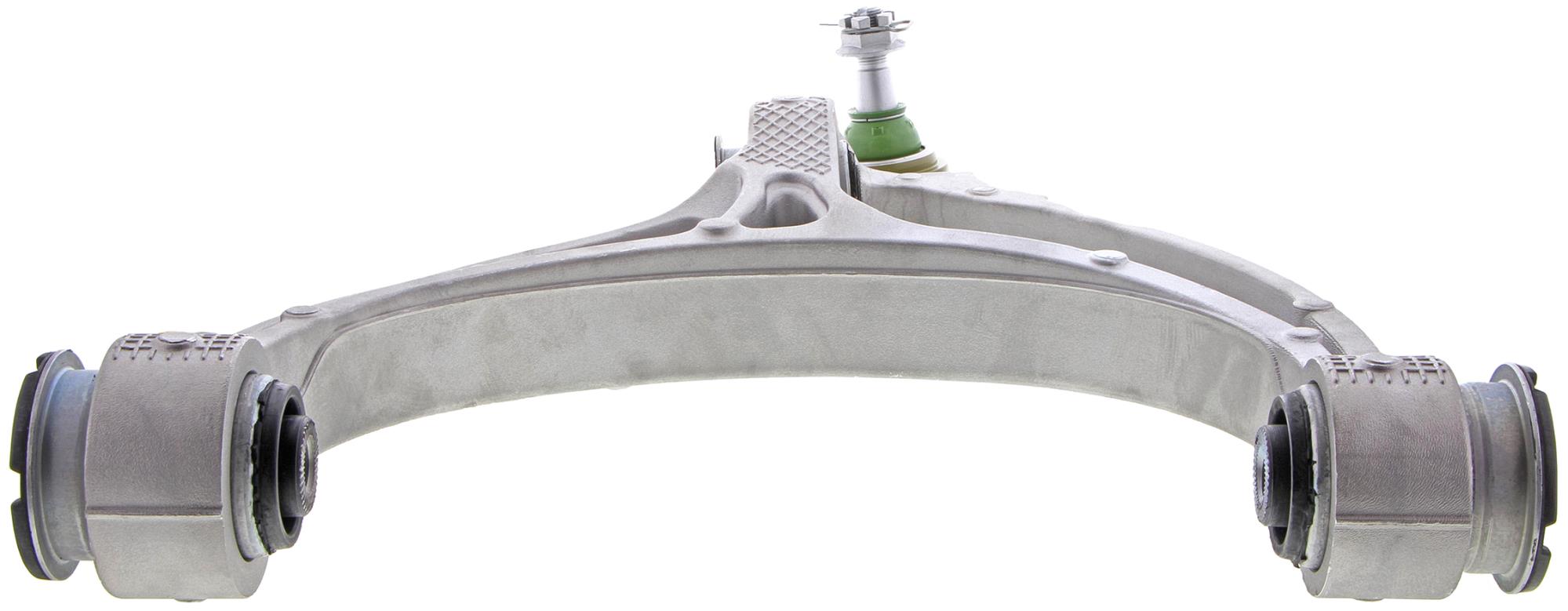

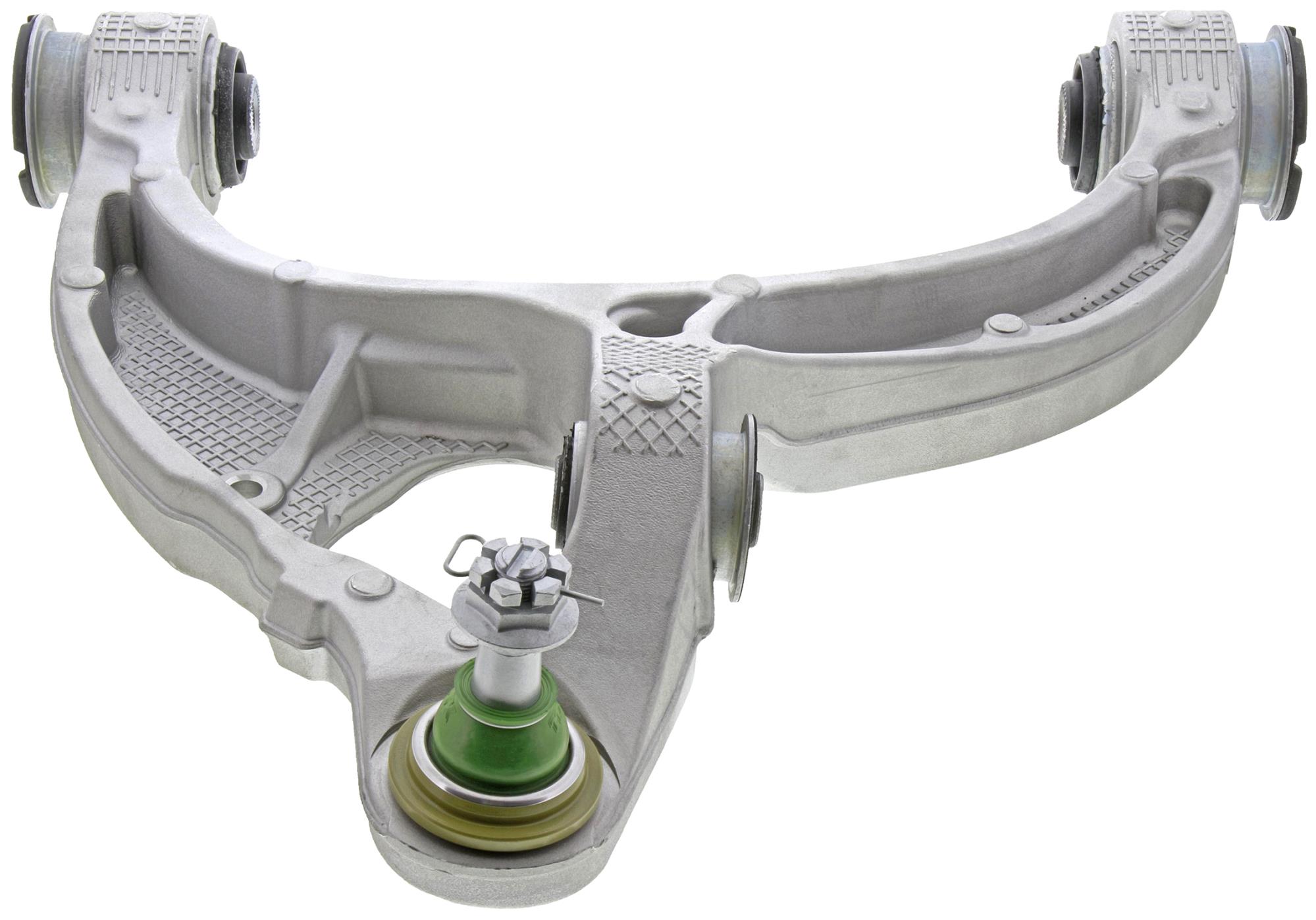

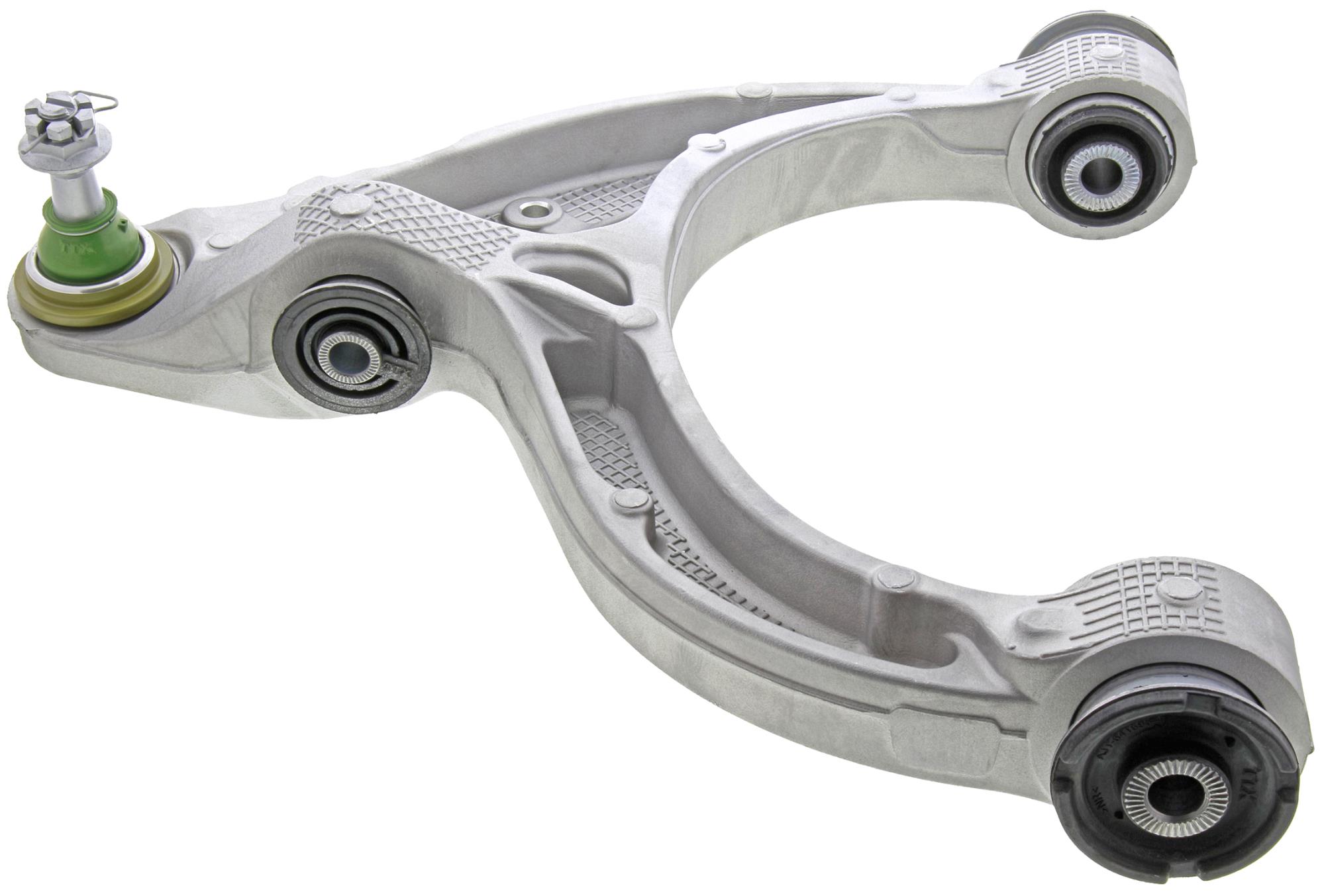

Control Arm and Ball Joint Assembly

Mevotech TTX™ parts are engineered with cutting-edge technology to be the strongest, most durable parts on the market. Built for high-usage commercial and passenger vehicles, SUVs, fleets and working trucks, TTX™ control arms deliver extreme performance. Plus, innovative Labor Saver™ designs, tools and hardware make installations faster and easier.

Details

  • MAXIMUM TOUGHNESS: Get longer-lasting performance from patented sintered bearings.
  • QUICK AND EASY INSTALLATION: Simply secure ball joint to the vehicle with part specific slotted castle nut & easy snap cotter pin provided.
  • TOUGHER RUST PROTECTION: Resist corrosion with additional Repel-TEK™ surface treatment on ball joint for a longer service life.
  • INCREASED STIFFNESS: Improve handling with bushings upgraded with a solid cross section & added knurling for increased stiffness and durability.
  • SUPERIOR SEAL: Lock out moisture and contaminants with Integri-Boot™ design built into the ball joint assembly.
  • SIMPLE TO SERVICE: Make servicing a snap with the 135 degree SAE grease fitting included.
  • LARGER SPHERE DESIGN: Optimize performance with an application-specific ball stud system with larger sphere.
  • EXCEPTIONAL FIT AND FUNCTION: Prevent deformation during installation with this ball joint designed with a thicker, stronger flange.
  • A STRONGER BOND: Keep fasteners secure and vibration resistant with pre-applied nylok thread adhesive.
  • OPTIMAL PERFORMANCE: Meet or exceed OE specifications with cast aluminium construction.

Product Specifications

  • Ball Joint IncludedYes
  • Ball Joint Mounting TypePress In
  • Bearing MaterialSintered Metal
  • Pre-GreasedYes
  • GreaseableYes
  • Grease Fitting IncludedYes
  • AdjustableNo
  • Control Arm MaterialAluminum
  • Control Arm ColorSilver
  • Bushing(s) IncludedYes
  • Bushing MaterialRubber
  • Ball Joint Stud TypeThreaded
  • Ball Joint Thread SizeM16 – 1.5

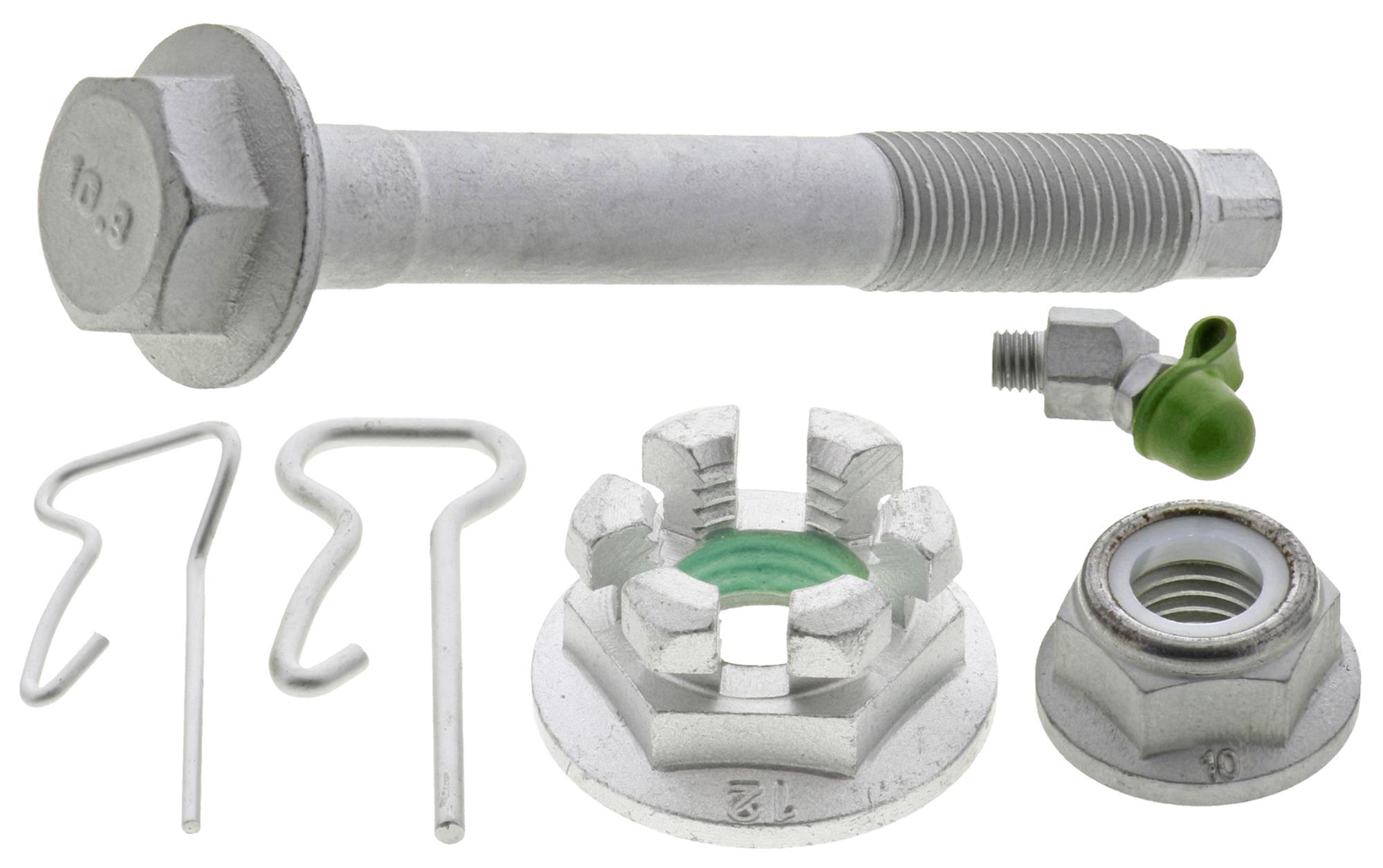

  • Mounting Hardware IncludedYes
  • Castle Nut IncludedYes
  • Cotter Pin IncludedYes
  • Dust Boot IncludedYes
  • Dust Boot MaterialNeoprene
  • Boot ColorGreen

Product Fit Check

Year / Make / Model

Buyers Guide
MakeModelYear RangePositionConfigurationApplication NotesVehicle QTY
JeepGrand Wagoneer2026-2022Front Left Lower1
JeepGrand Wagoneer L2026-2023Front Left Lower1
JeepWagoneer2025-2022Front Left Lower1
JeepWagoneer L2025-2023Front Left Lower1
Ram15002020-2019Front Left Lower4WD1
Ram15002021Front Left LowerLaramie Longhorn1
Ram15002021Front Left LowerLonghorn1
Ram15002021Front Left LowerSpecial Service1
Ram15002024-2021Front Left LowerHFE1
Ram15002025Front Left LowerTradesman HFE1
Ram15002026Front Left LowerSport S1
Ram15002026Front Left LowerLonghorn1
Ram15002026Front Left LowerExpress1
Ram15002026-2021Front Left LowerSport1
Ram15002026-2021Front Left LowerRebel1
Ram15002026-2021Front Left LowerLaramie1
Ram15002026-2021Front Left LowerLimited1
Ram15002026-2021Front Left LowerLimited Longhorn1
Ram15002026-2021Front Left LowerLone Star1
Ram15002026-2021Front Left LowerBig Horn1
Ram15002026-2021Front Left LowerTradesman1
Ram15002026-2025Front Left LowerTungsten1
Ram15002026-2025Front Left LowerWarlock1
Ram15002026-2025Front Left LowerSpecial Service1
TTX control arm and ball joint assembly: product features infographic
