Engineered with cutting-edge technology to excel in the most demanding operating environments.

Documents

Product Brochure

Part No: CTXMS401269

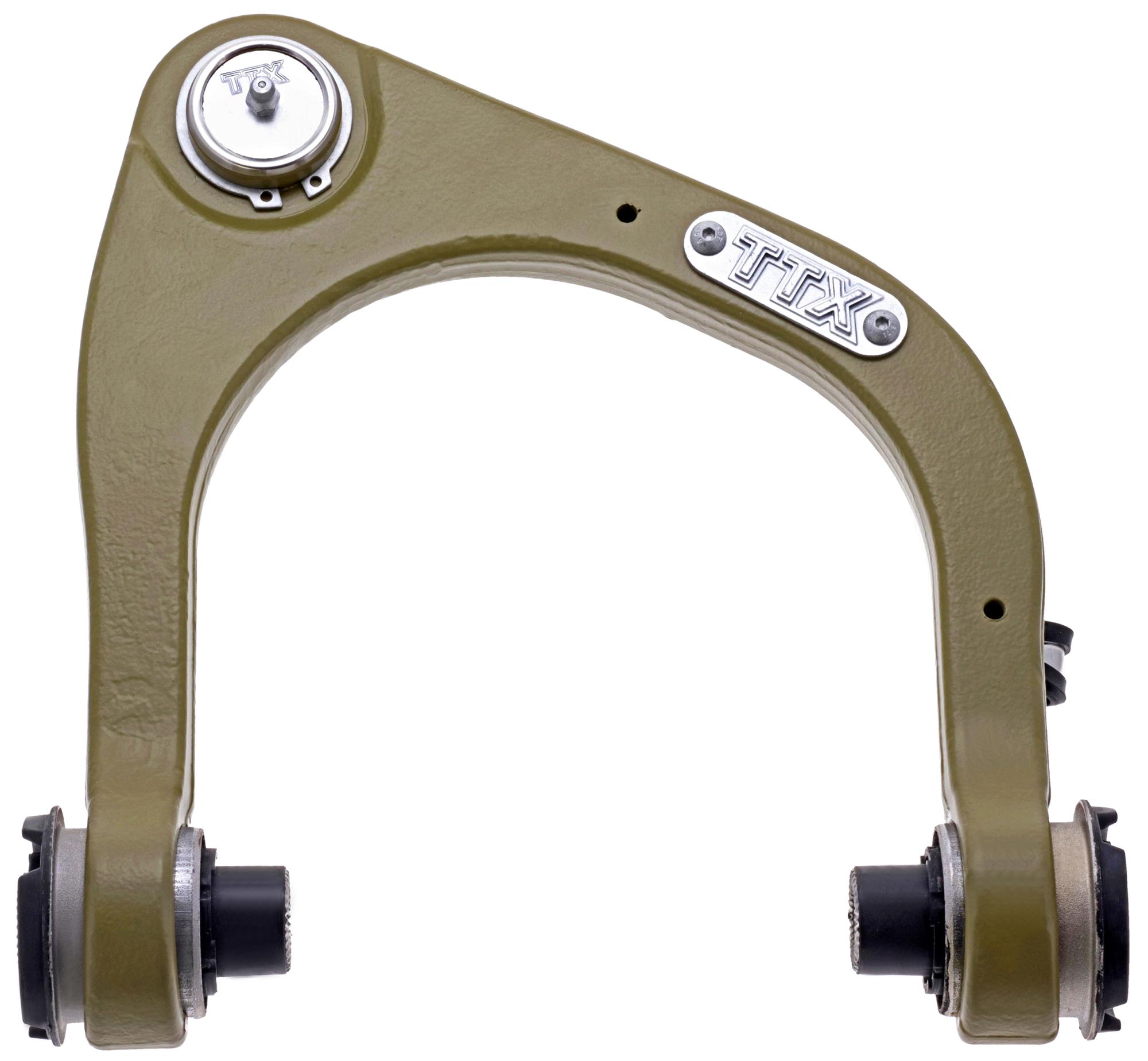

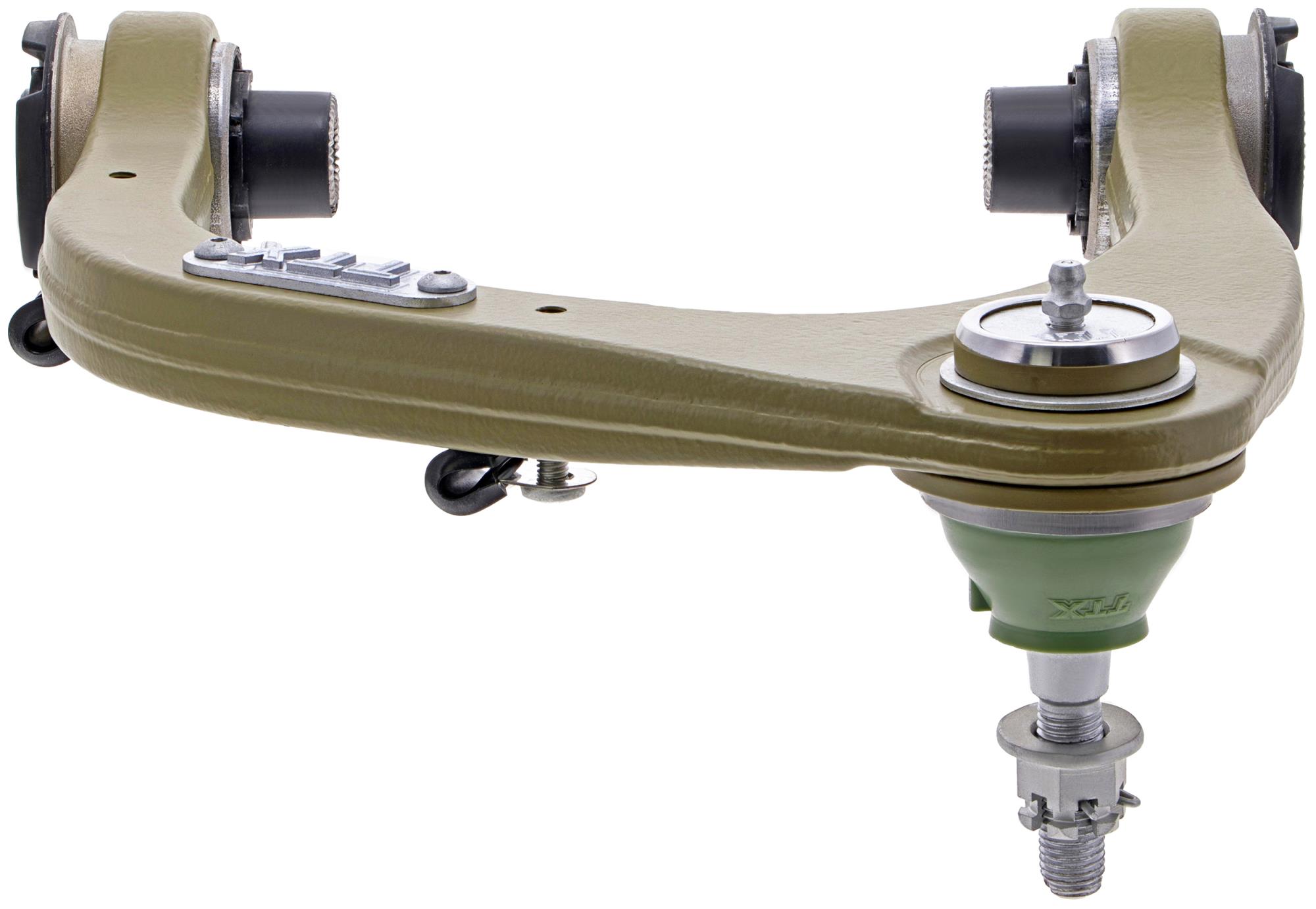

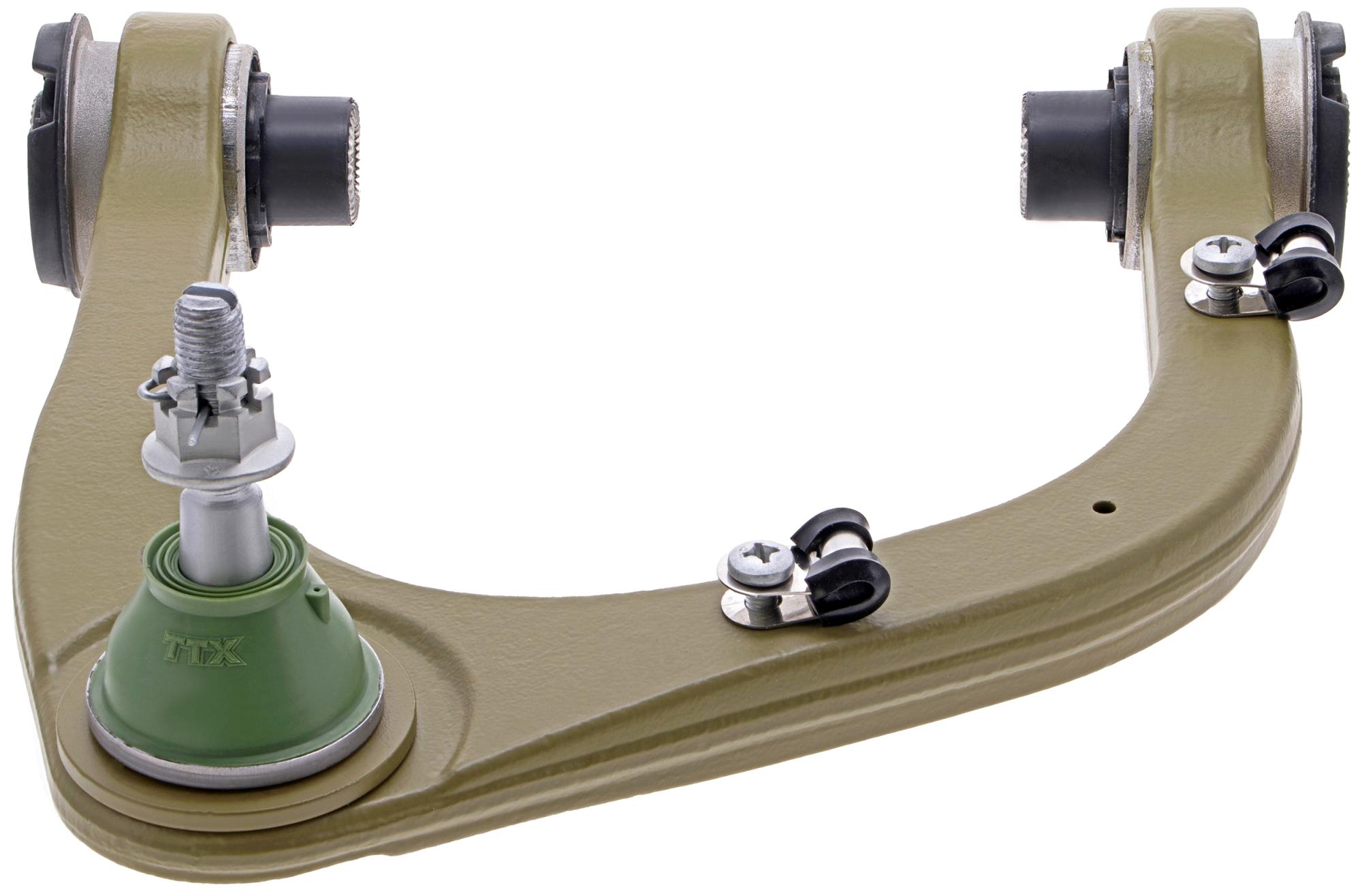

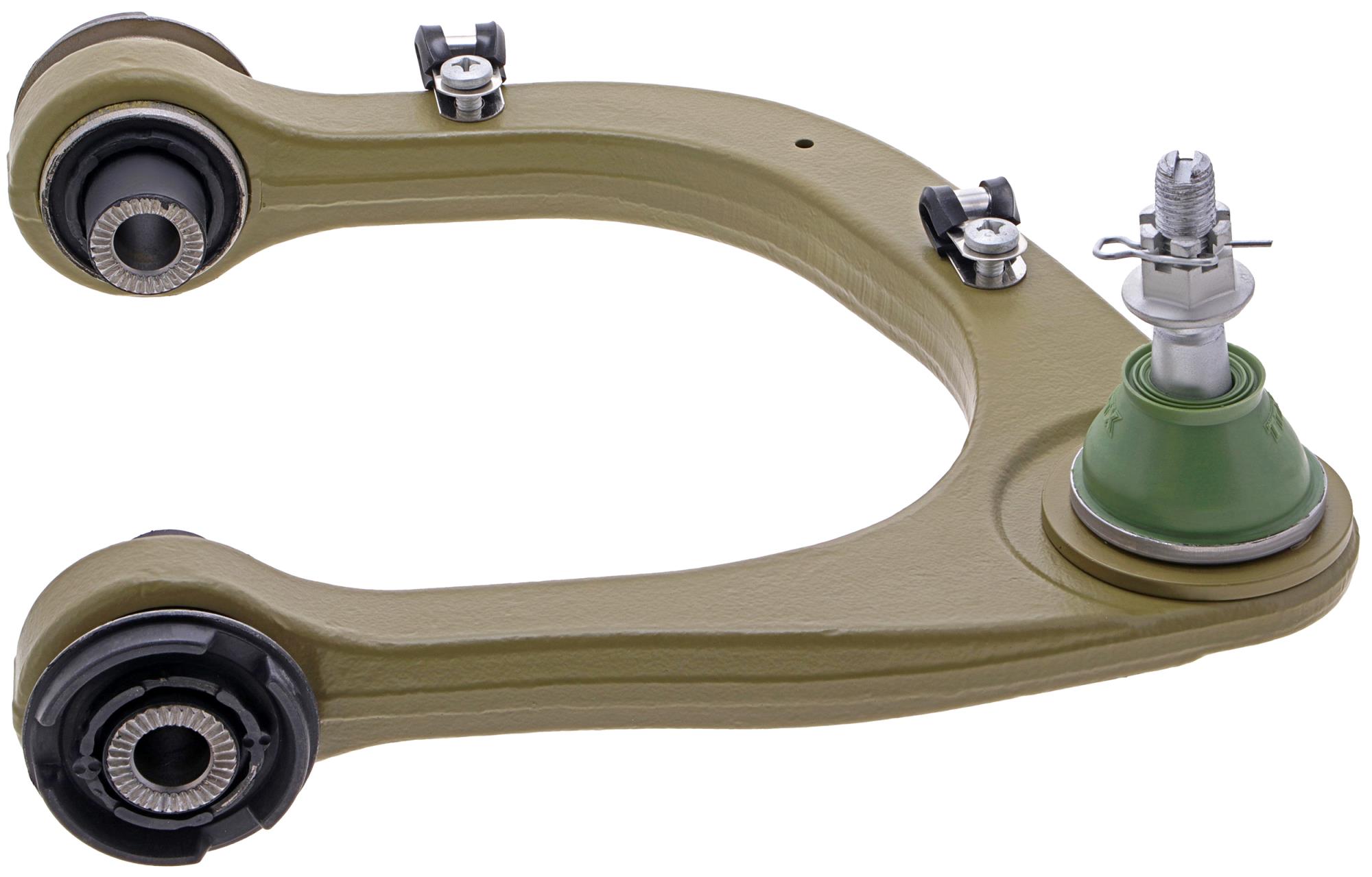

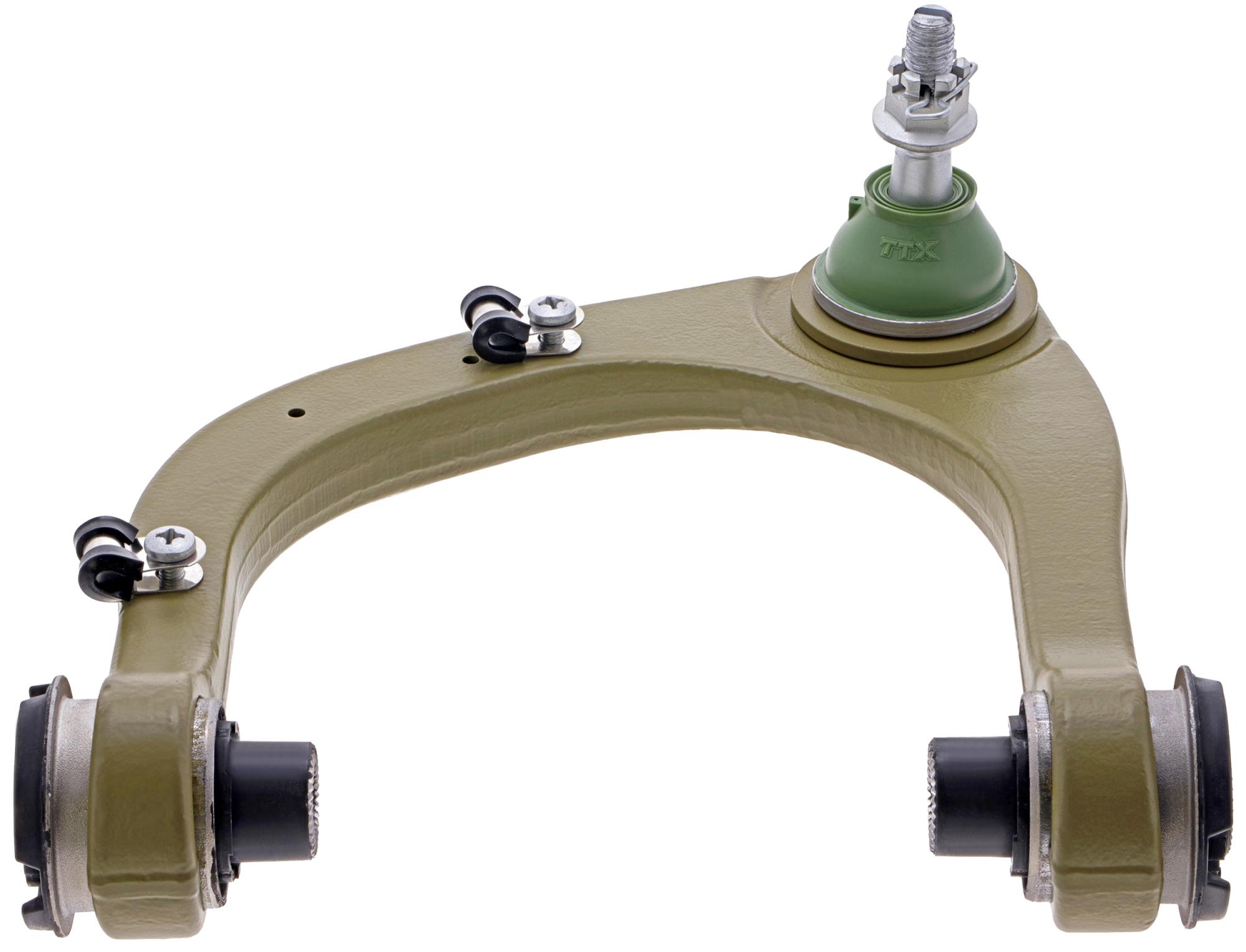

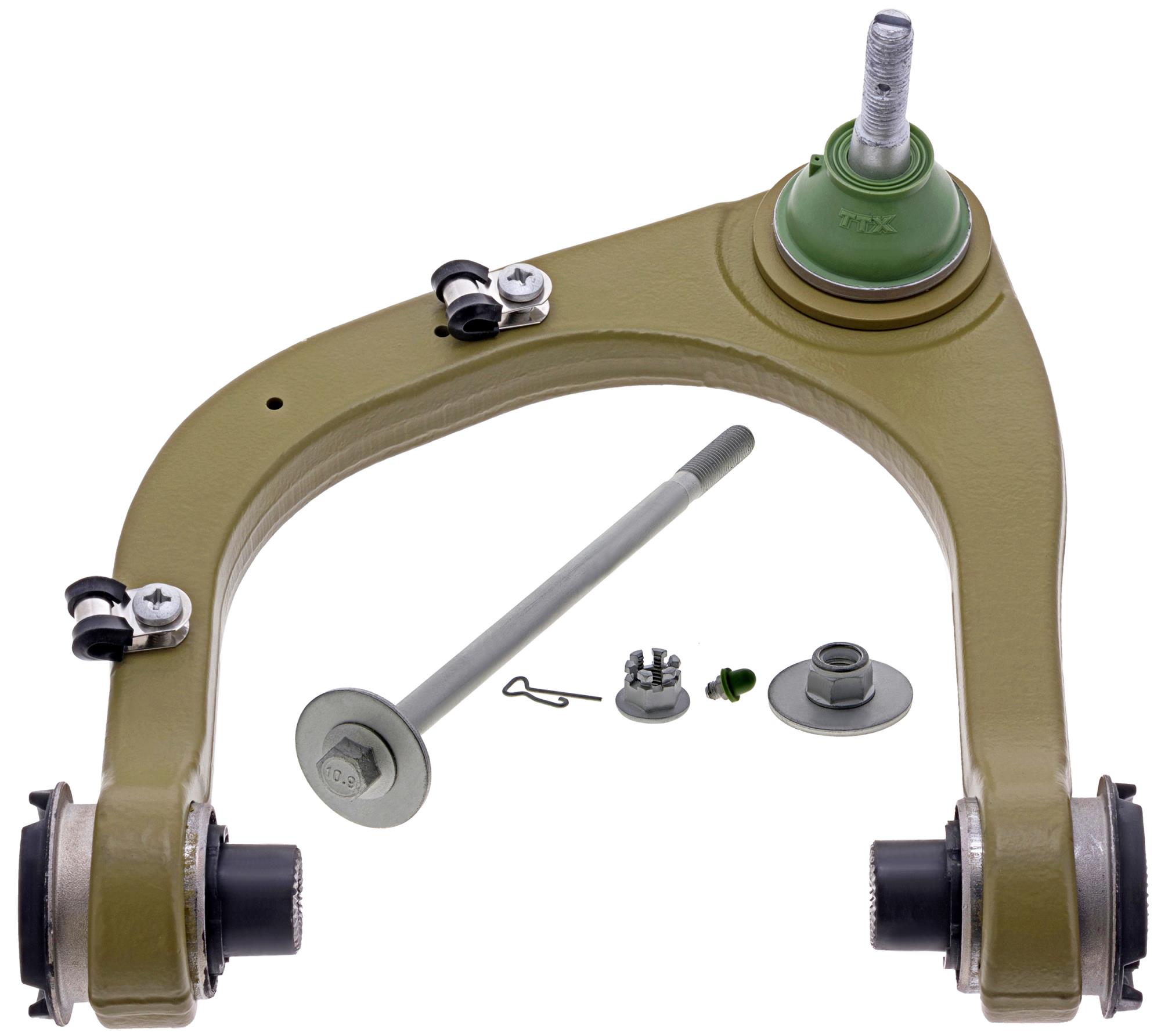

Control Arm and Ball Joint Assembly

Mevotech TTX™ parts are engineered with cutting-edge technology to be the strongest, most durable parts on the market. Built for high-usage commercial and passenger vehicles, SUVs, fleets and working trucks, TTX™ control arms deliver extreme performance. Plus, innovative Labor Saver™ designs, tools and hardware make installations faster and easier.

Details

  • MAXIMUM TOUGHNESS: Get longer-lasting performance from patented sintered bearings.
  • BEEFY AND DURABLE: Upgraded to forged steel construction with a structure change for increased durability.
  • LOCKS OUT CONTAMINANTS: Ensure a superior seal with a patented sealing ring that permanently locks the boot onto the ball joint housing.

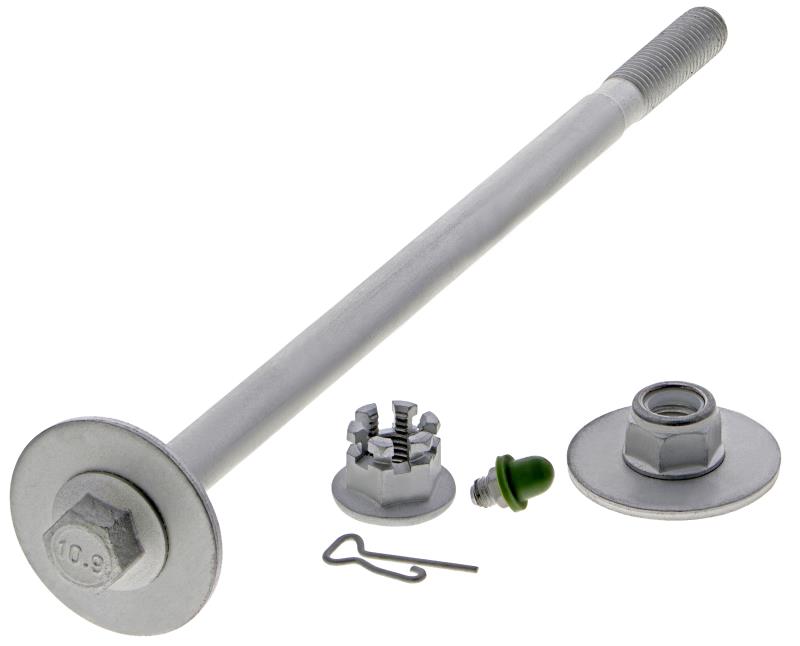

  • QUICK AND EASY INSTALLATION: Simply secure ball joint to the vehicle with part specific slotted castle nut & easy snap cotter pin provided.
  • SIMPLE TO SERVICE: Make servicing a snap with the 180 degree SAE grease fitting included.
  • THE ULTIMATE HIGH-PERFORMANCE DESIGN: Experience higher performance from upgraded rubber bushings with knurling that secures the control arm bushing to the sub-frame.
  • EXCEPTIONAL FIT AND FUNCTION: Prevent deformation during installation with this ball joint designed with a thicker, stronger flange.
  • LONGER SERVICE LIFE: Prevent rust build-up with Repel-TEK™ surface treatment for a longer life.

Product Specifications

  • Ball Joint IncludedYes
  • Ball Joint Mounting TypePress In
  • Bearing MaterialSintered Metal
  • Pre-GreasedYes
  • GreaseableYes
  • Grease Fitting IncludedYes
  • AdjustableNo
  • Control Arm MaterialSteel
  • Control Arm ColorGold
  • Bushings IncludedYes
  • Bushing MaterialRubber
  • Ball Joint Stud TypeThreaded
  • Mounting Hardware IncludedYes
  • Castle Nut IncludedYes
  • Cotter Pin IncludedYes
  • Dust Boot IncludedYes
  • Dust Boot MaterialNeoprene
  • Boot ColorGreen

Product Fit Check

Check Again

Year

Make

Model

Sub Model - Drive Type

Search

Buyers Guide

Make Model Year Range Position Configuration Application Notes Vehicle QTY
Ford Ranger 2022-2019 Front Left Upper with Aluminum Steering Knuckles 1
