Part No: TXMS25669

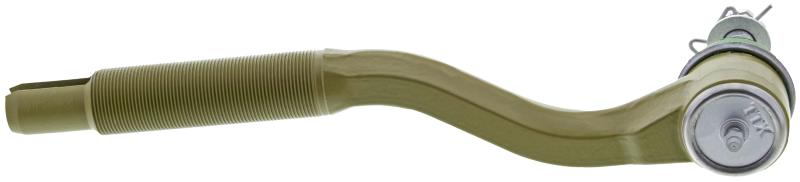

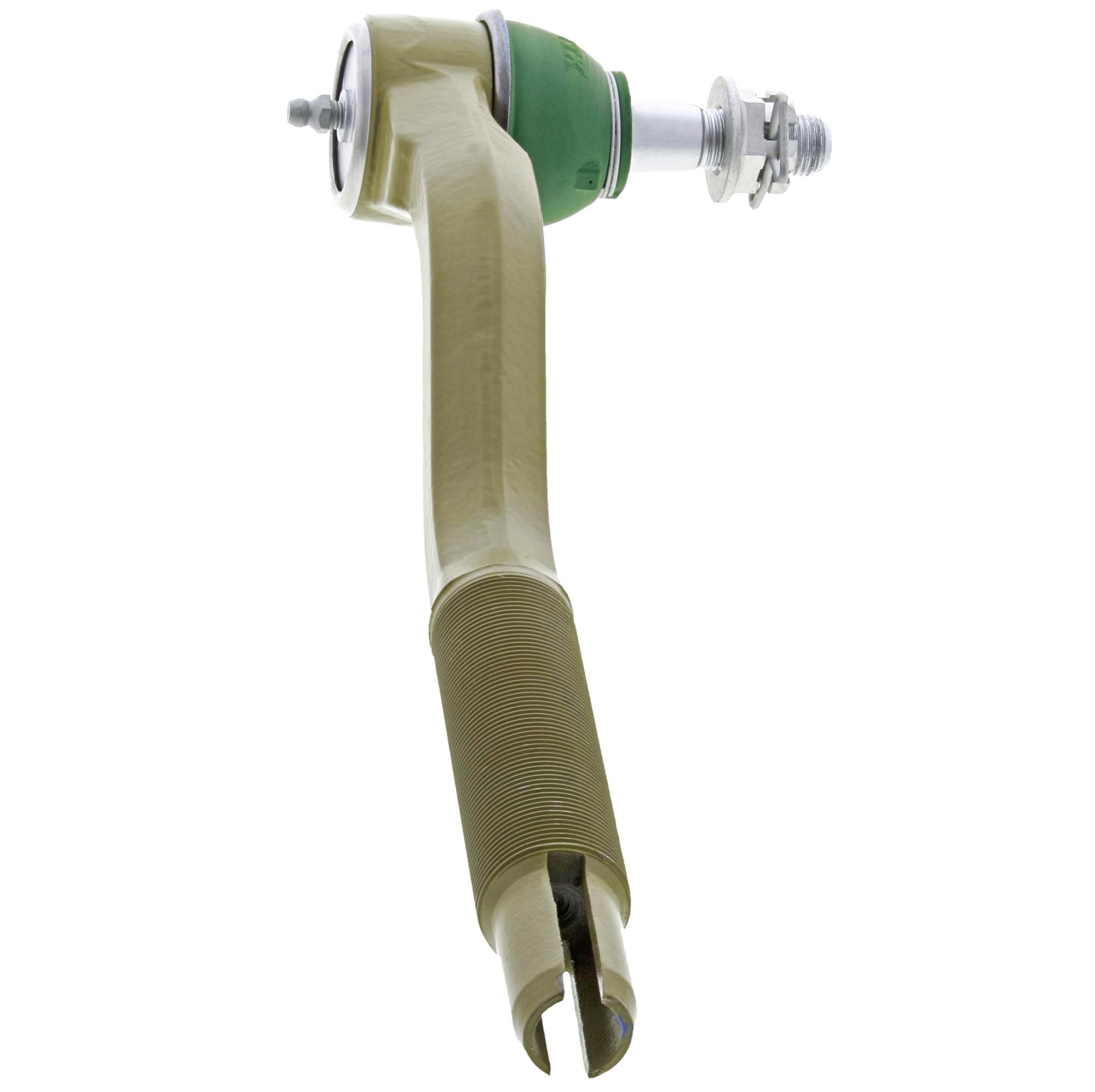

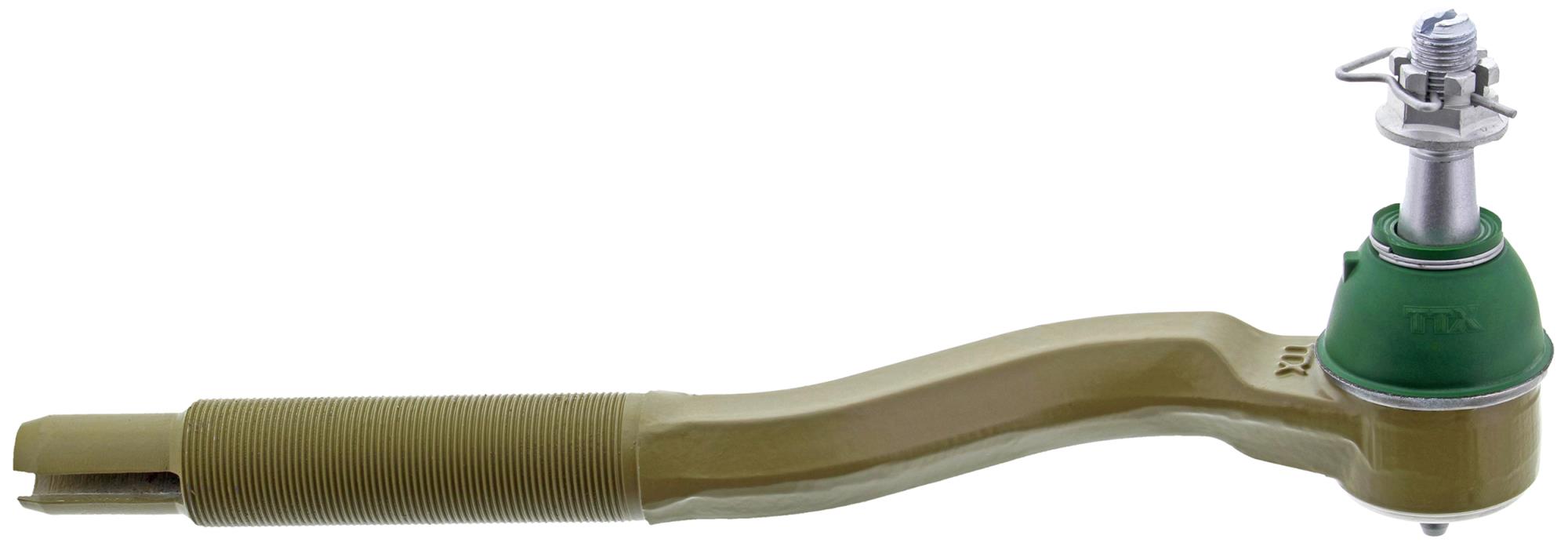

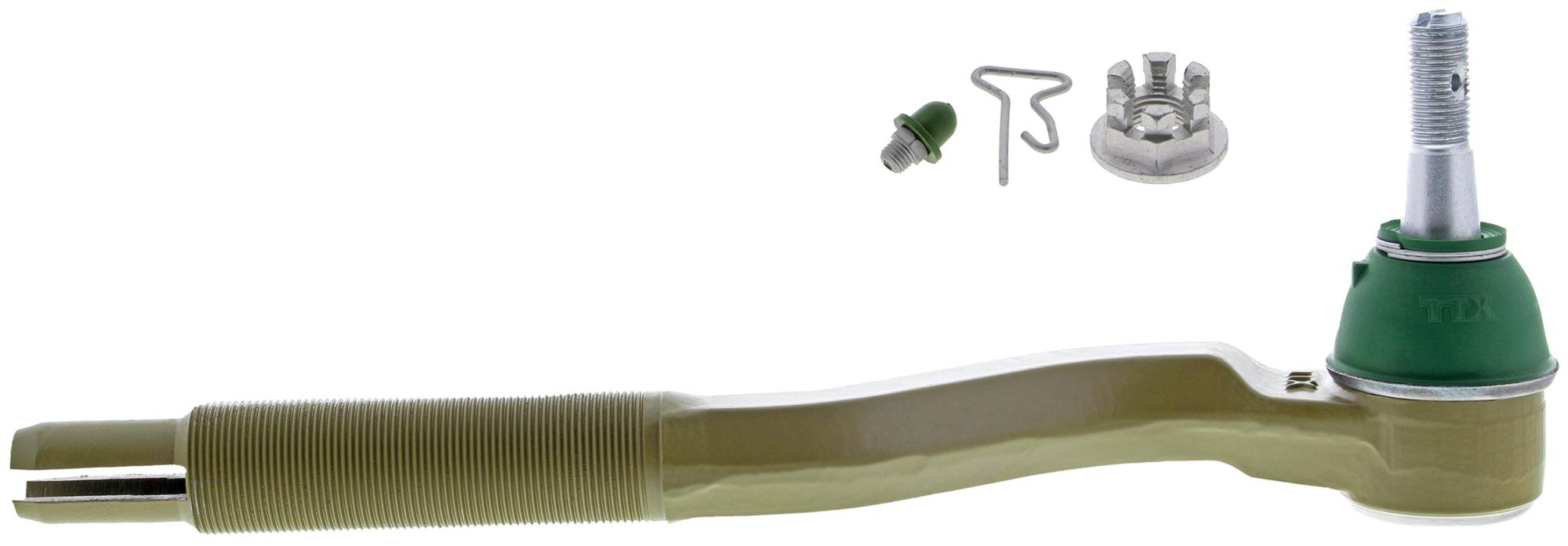

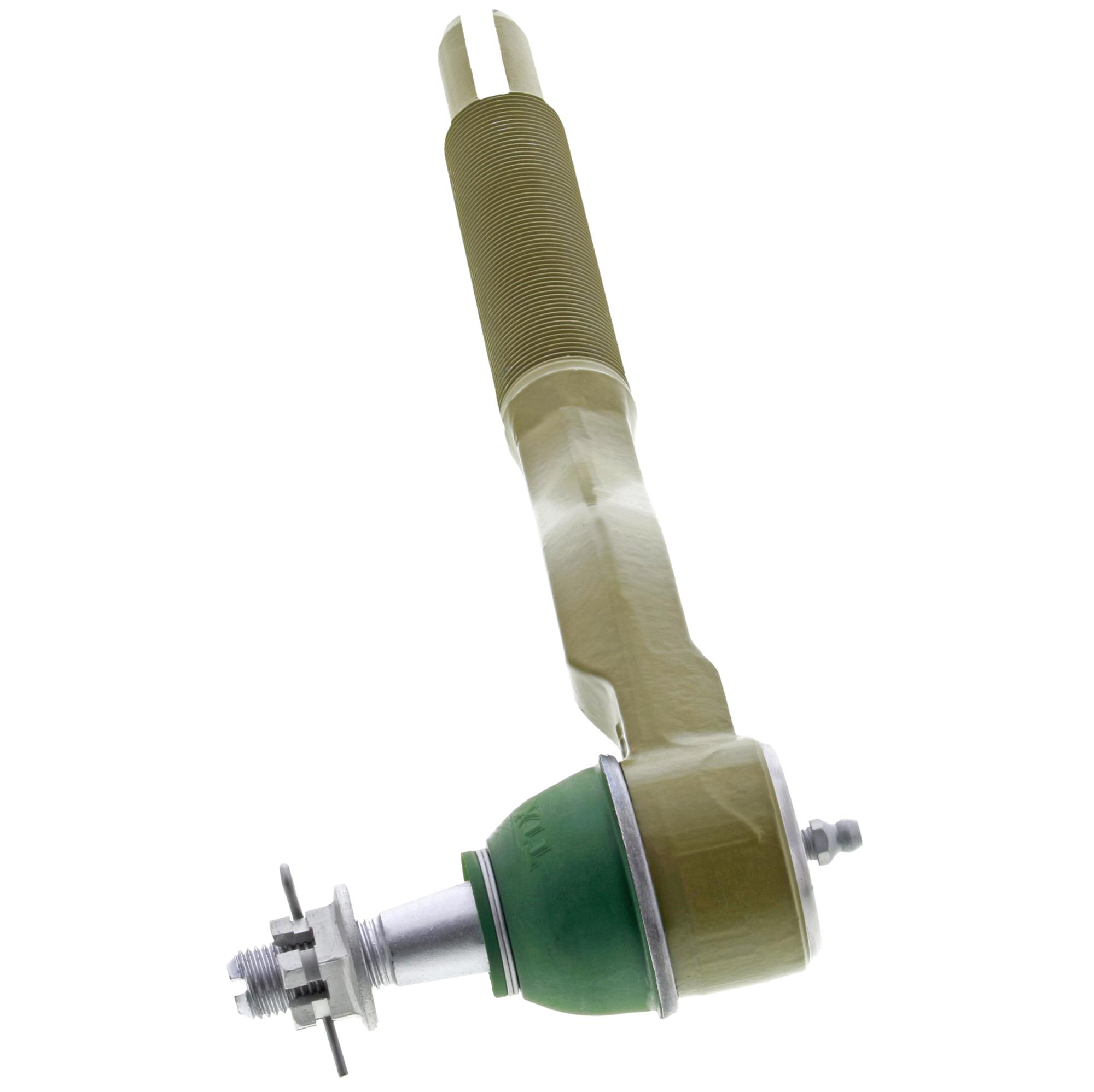

Tie Rod End

Mevotech TTX™ parts are engineered with cutting-edge technology to be the strongest, most durable parts on the market. Built for high-usage commercial and passenger vehicles, SUVs, fleets and working trucks, TTX™ tie rod ends deliver extreme performance. Plus, innovative Labor Saver™ designs, tools and hardware make installations faster and easier.

Details

  • SUPERIOR TOUGHNESS: Get longer-lasting performance from patented sintered bearings.
  • LOCKS OUT CONTAMINANTS: Ensure a superior seal with a patented sealing ring that permanently locks the boot onto the ball joint housing.

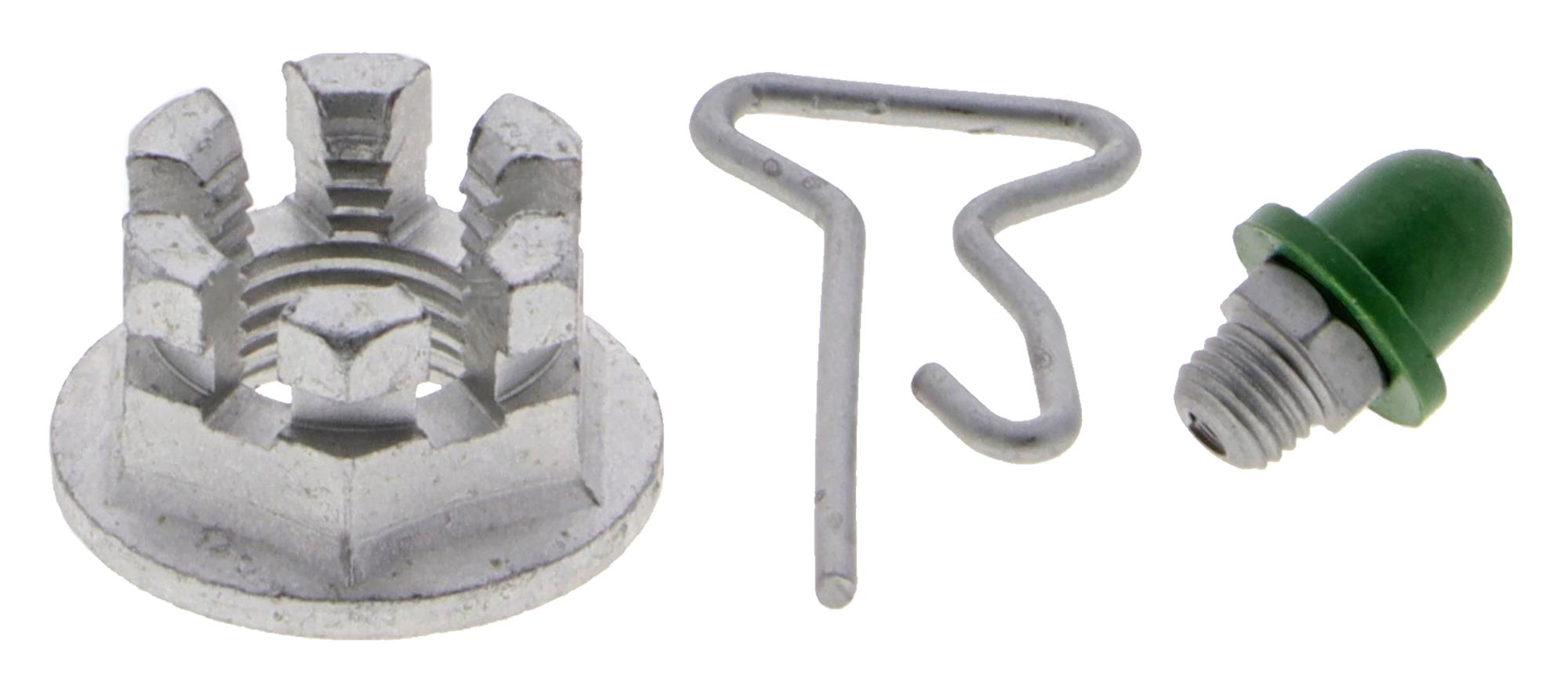

  • QUICK AND EASY INSTALLATION: Simply secure ball joint to the vehicle with part specific slotted castle nut & easy snap cotter pin provided.
  • SIMPLE TO SERVICE: Make servicing a snap with the 180 degree SAE grease fitting included.
  • LARGER SPHERE DESIGN: Optimize performance with an application-specific ball stud system with larger sphere.

Product Specifications

  • Tie Rod End TypeOuter
  • Bearing TypeSintered Metal
  • Pre-GreasedYes
  • GreaseableYes
  • Grease Fitting IncludedYes
  • AdjustableNo
  • Stud TypeThreaded
  • Ball Stud Thread SizeM14 x 1.5
  • Mounting Hardware IncludedYes
  • Castle Nut IncludedYes
  • Cotter Pin IncludedYes
  • Washer IncludedYes
  • Dust Boot IncludedYes
  • Dust Boot MaterialNeoprene
  • Dust Boot ColorGreen
  • End 2 GenderMale
  • End 1 GenderMale

Product Fit Check

Check Again

Year

Make

Model

Sub Model - Drive Type

Buyers Guide

Make Model Year Range Position Configuration Application Notes Vehicle QTY
Jeep Gladiator 2021-2020 Front Left Outer 1
Jeep Wrangler 2021-2018 Front Left Outer 1
