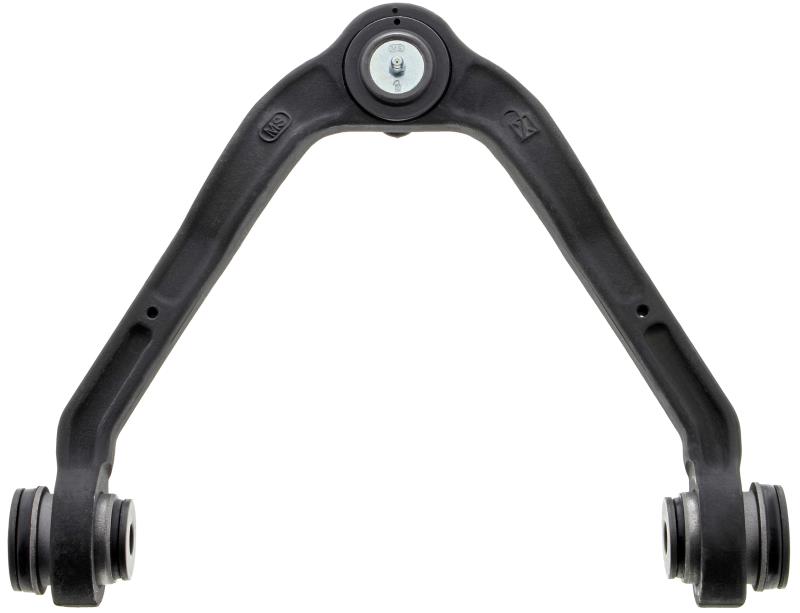

Part No: CMS20268

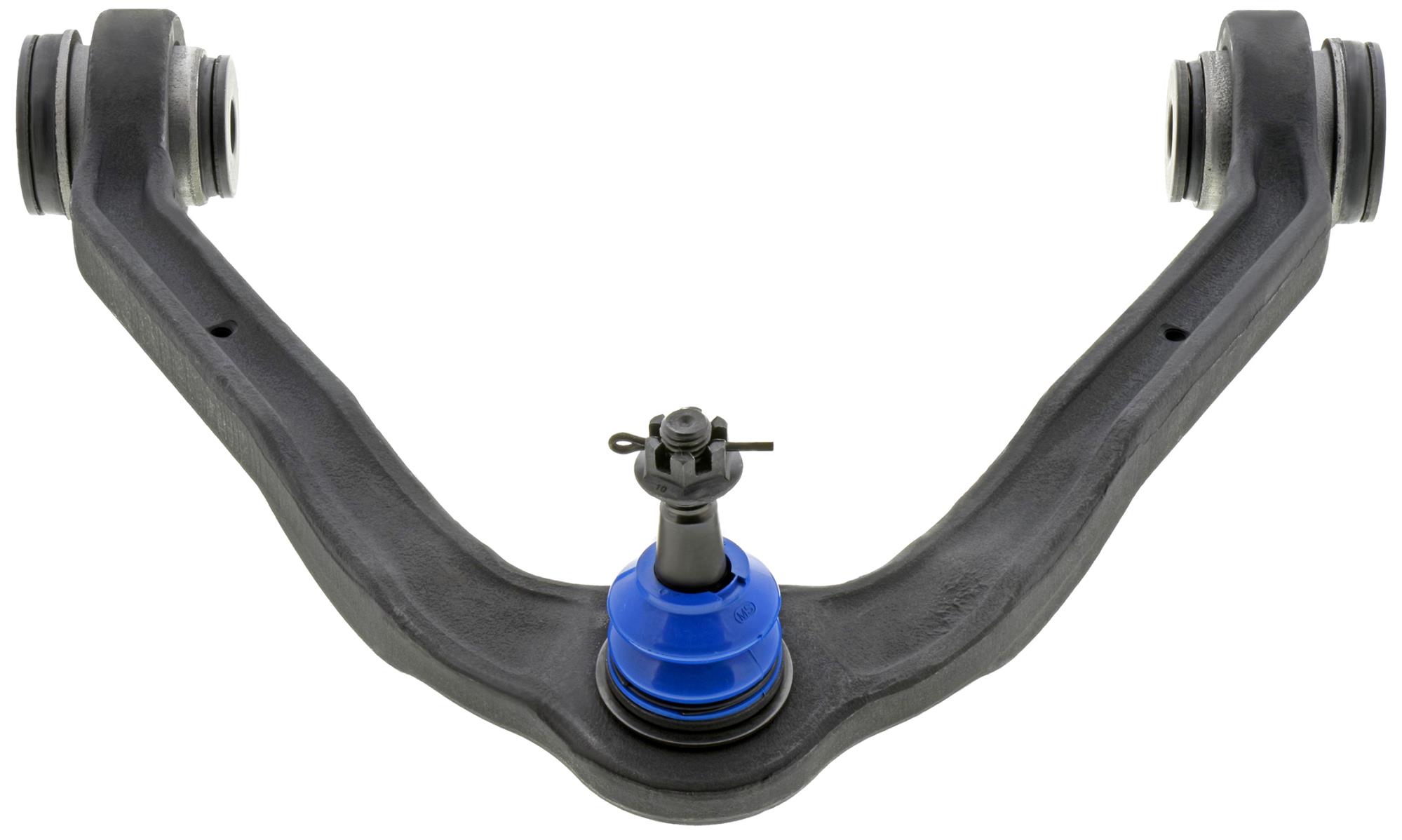

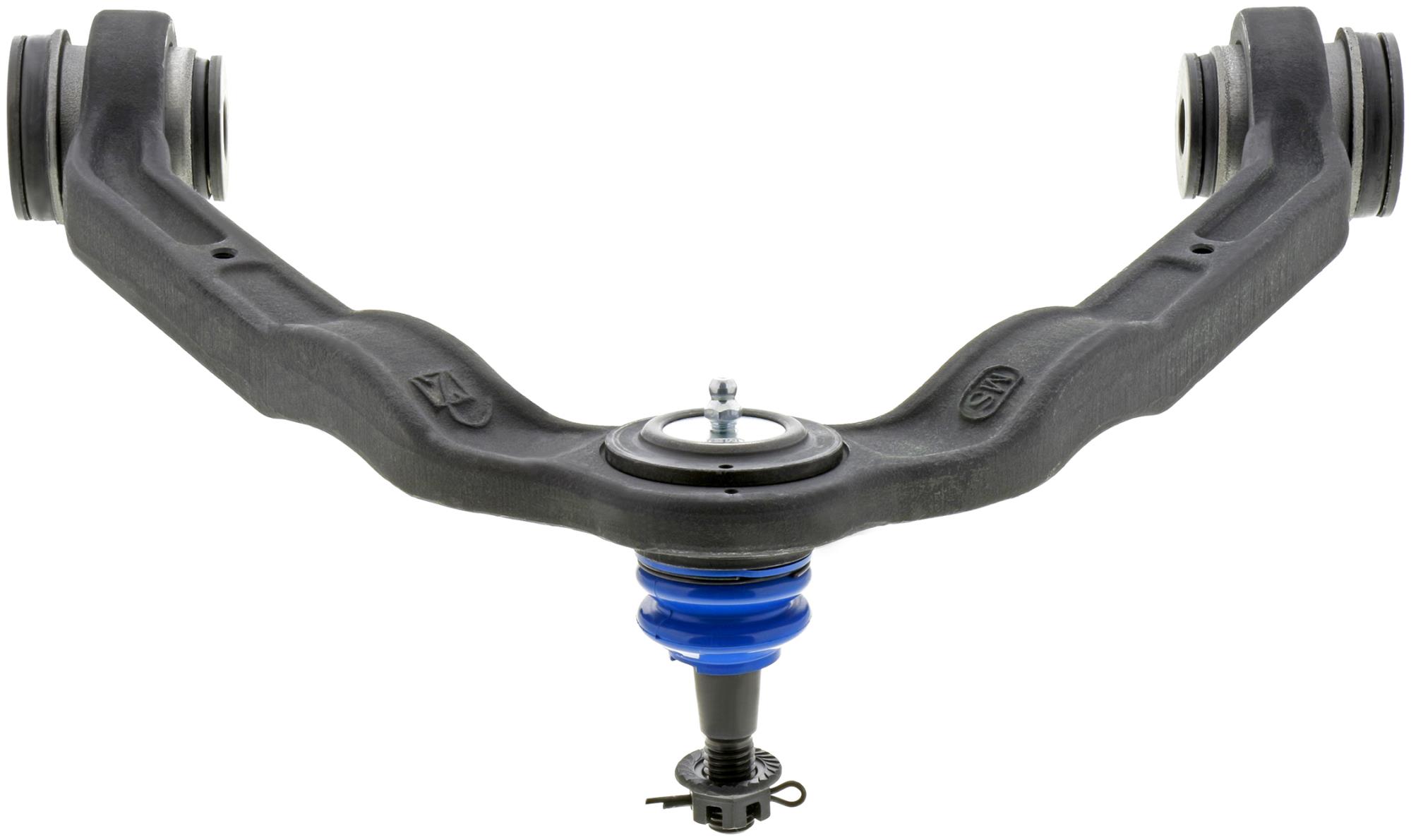

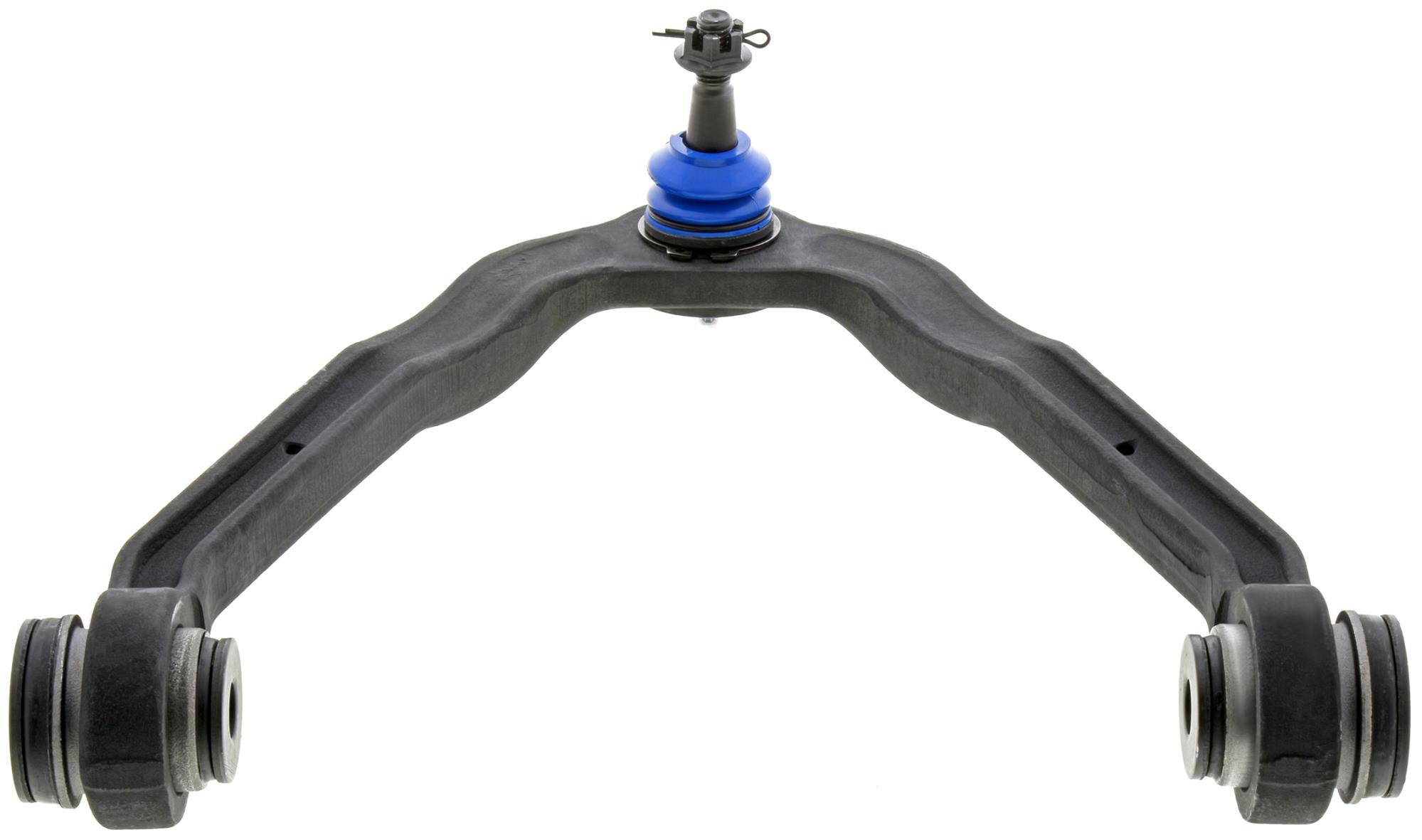

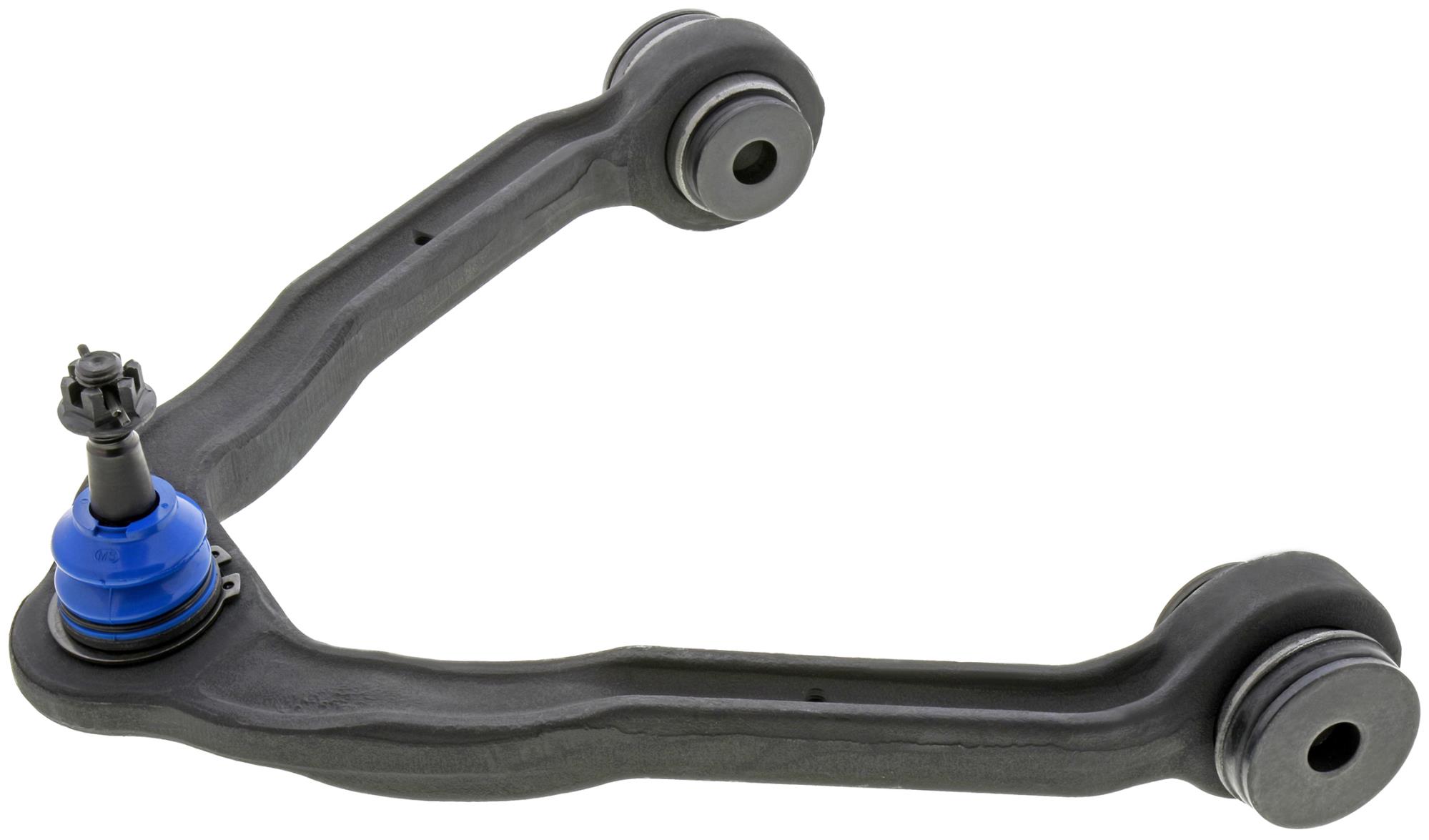

Control Arm and Ball Joint Assembly
Mevotech Supreme Parts™ are engineered in-house, with application-specific upgrades for increased durability and performance. Mevotech Supreme control arms are built for high-usage commercial and passenger vehicles, SUVs, fleets and working trucks. Plus, innovative Labor Saver™ designs, tools and hardware make installations faster and easier.
Details

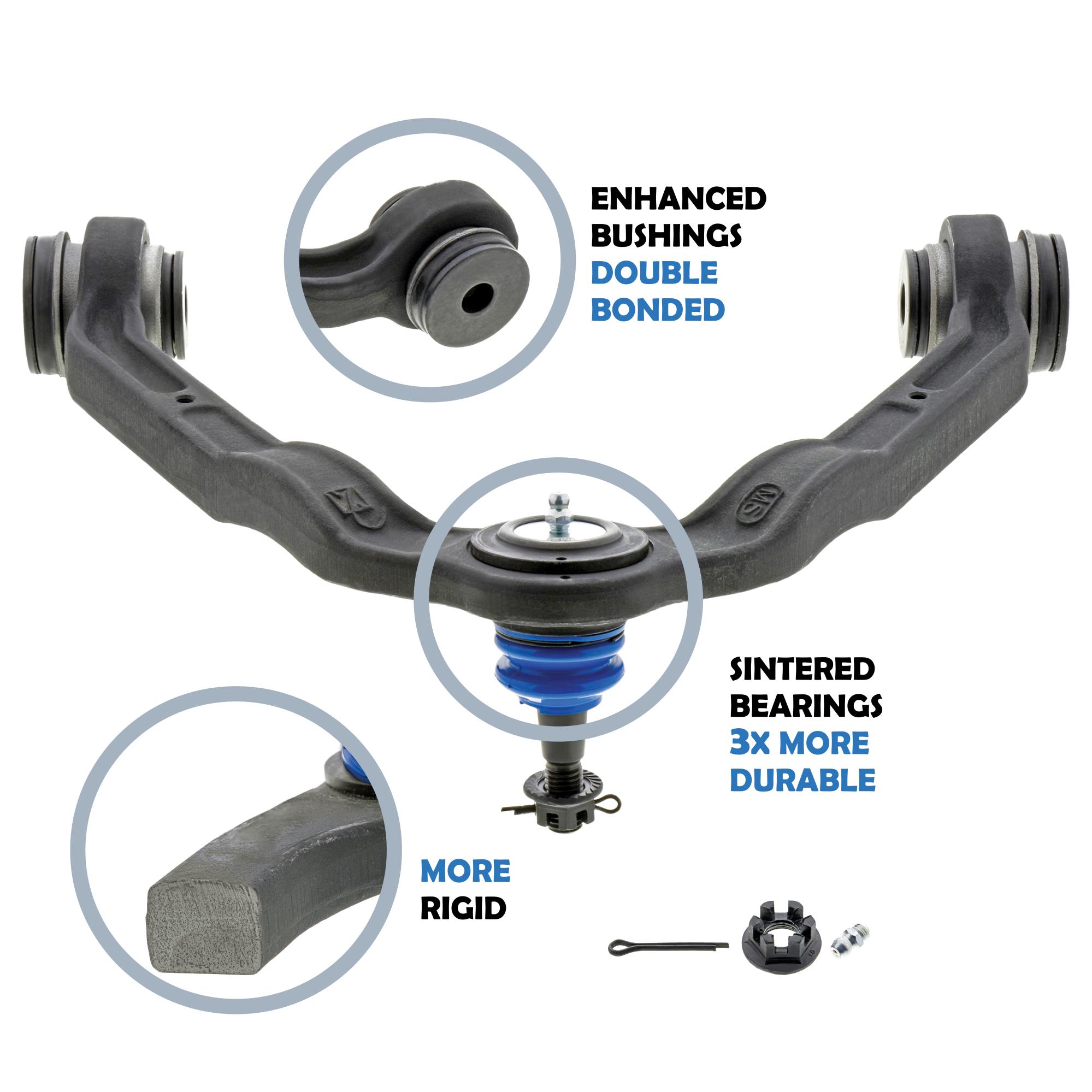

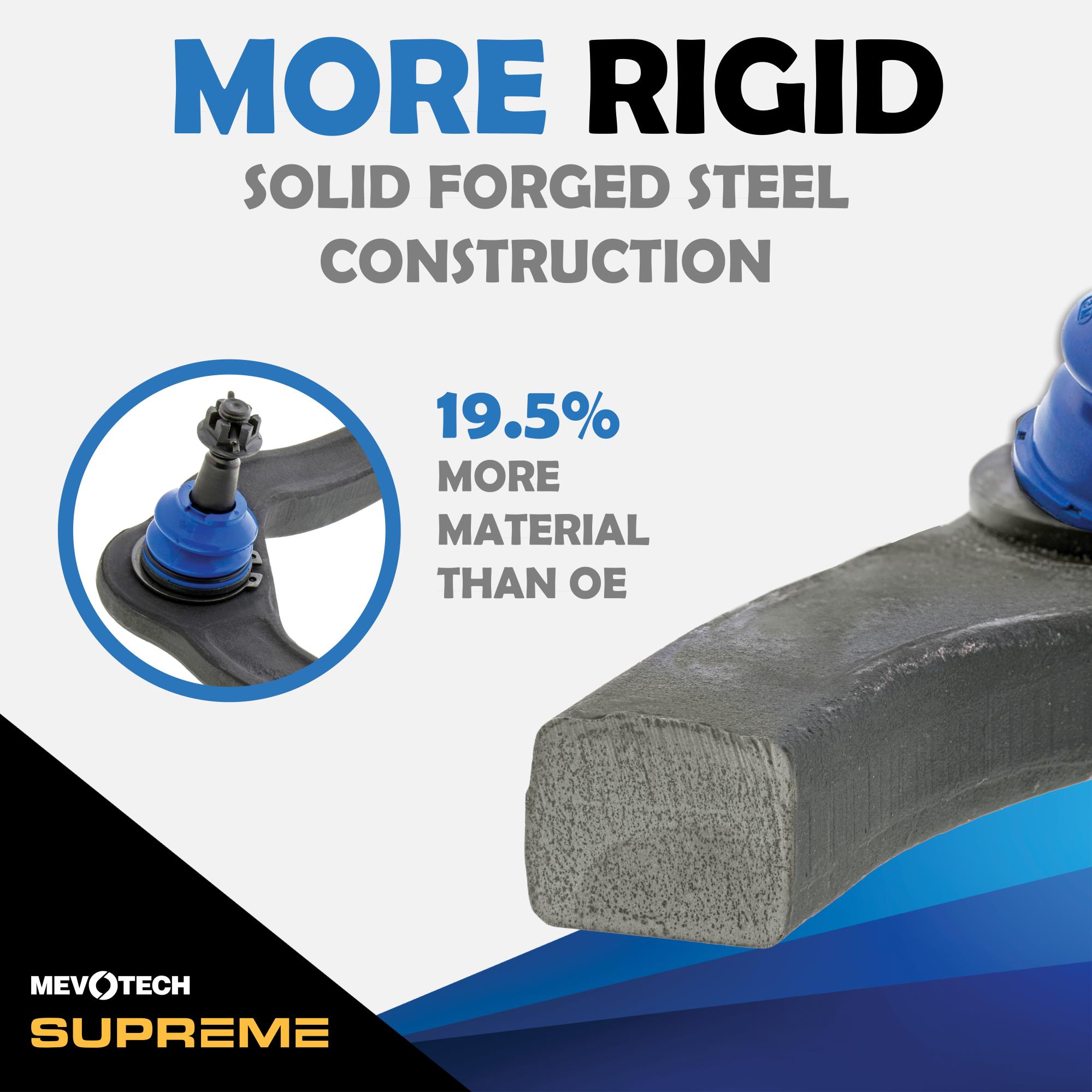

- STRONGER BUILD: Rely on superior strength with a forged steel control arm with a thicker cross section for added durability.

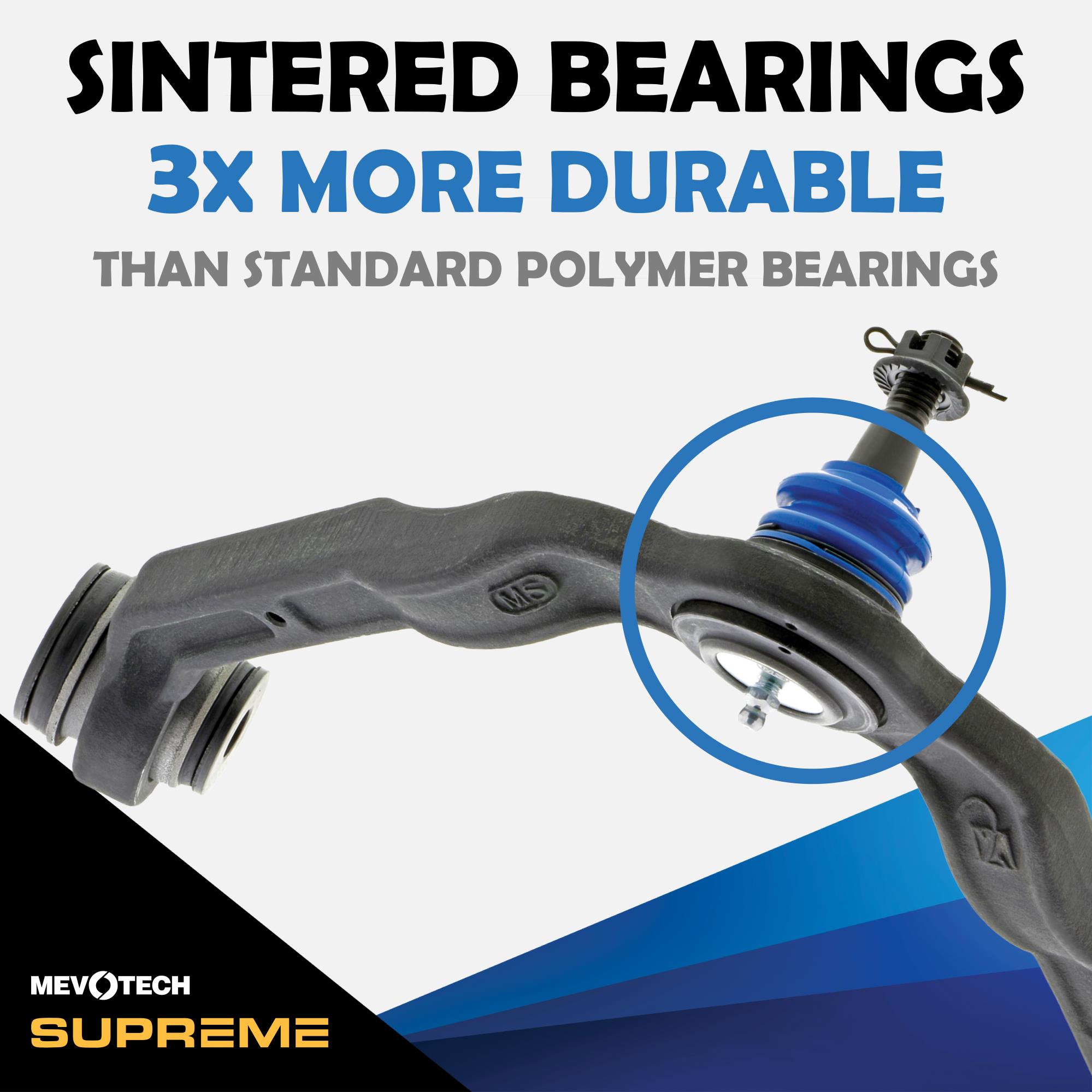

- SUPERIOR TOUGHNESS: Get longer-lasting performance from sintered bearings.

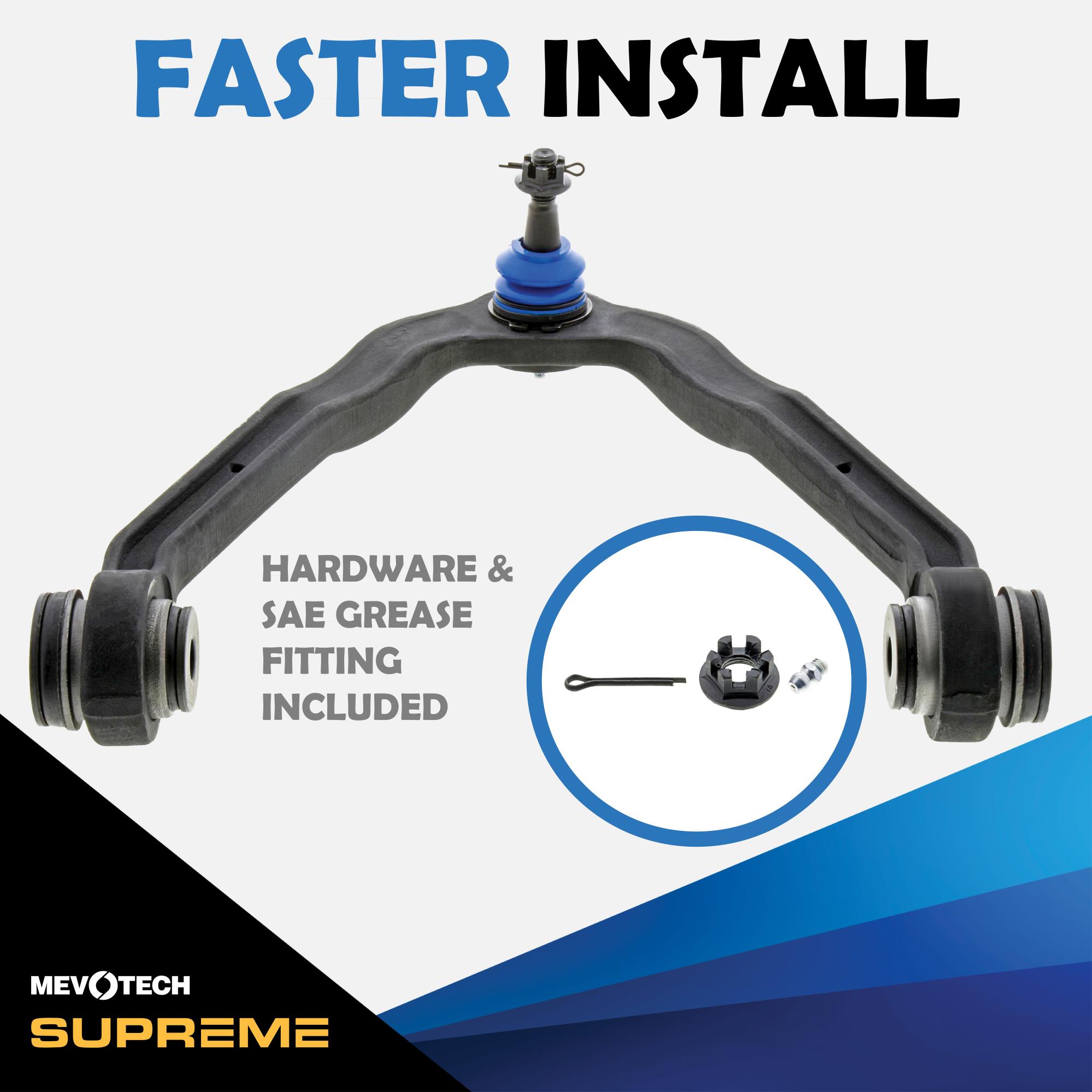

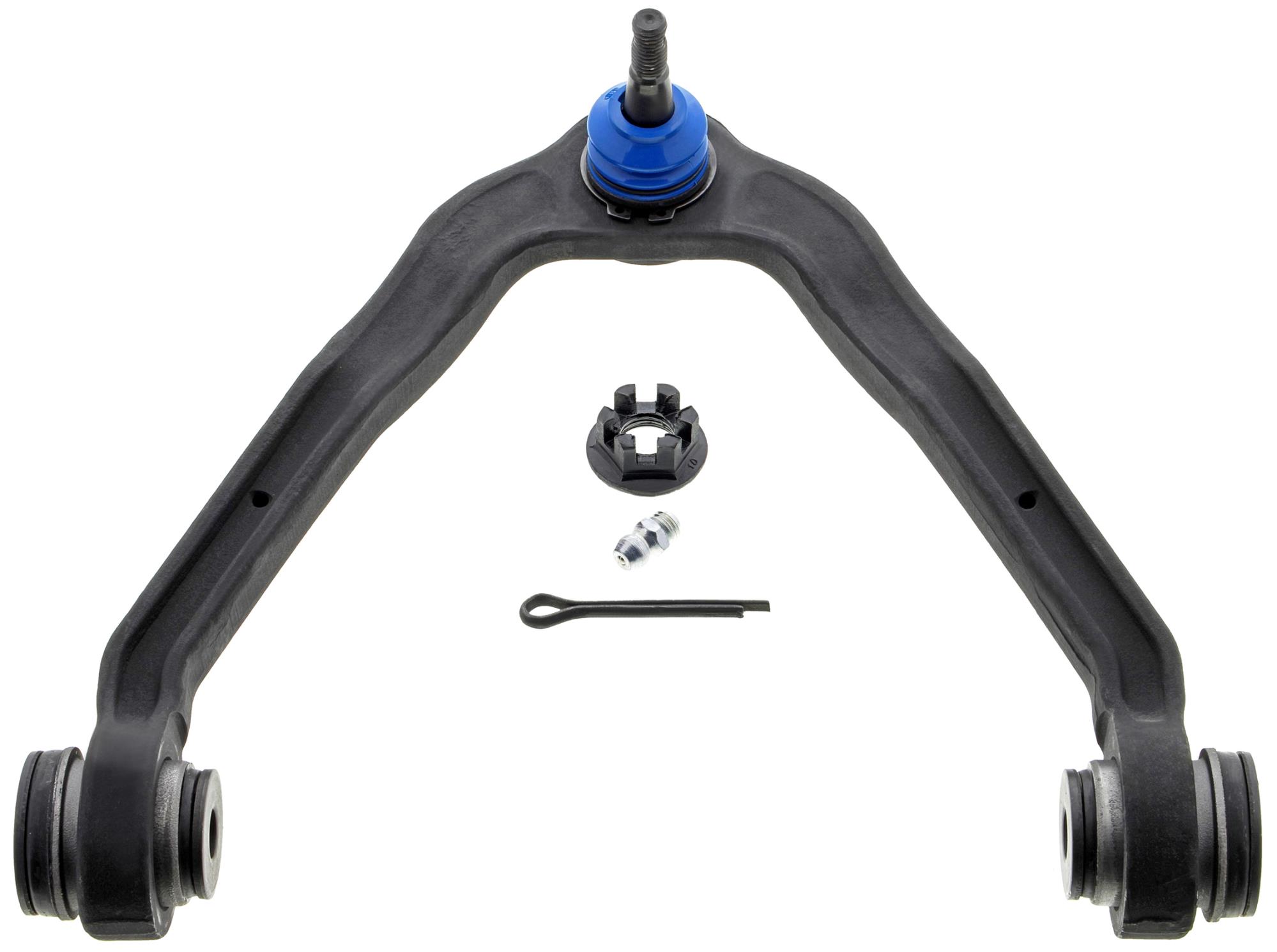

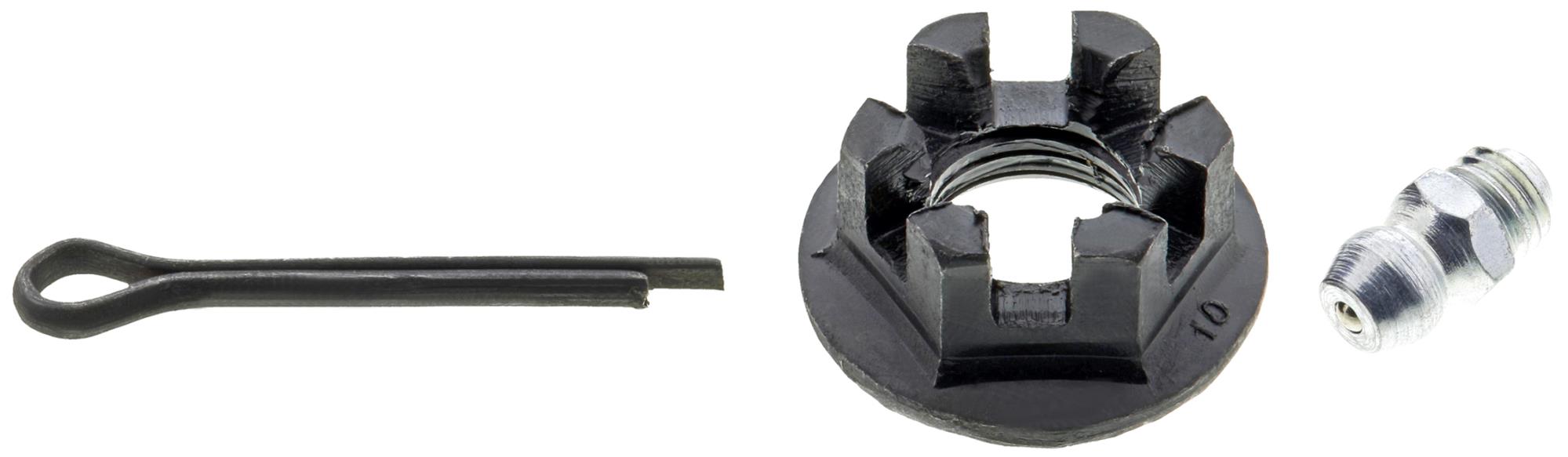

- QUICK AND EASY INSTALLATION: Simply secure ball joint to the vehicle with part specific castle nut & cotter pin provided.
- SIMPLE TO SERVICE: Make servicing a snap with the 180 degree SAE grease fitting included.
- LARGER SPHERE DESIGN: Optimize performance with an application-specific ball stud system with larger sphere.
- RESISTS CORROSION: Prevent rust build up and increase longevity with protective surface treatment.
Product Specifications
- Ball Joint IncludedYes
- Bearing MaterialSintered Metal
- Pre-GreasedYes
- GreaseableYes
- Grease Fitting IncludedYes
- AdjustableNo
- Control Arm MaterialSteel
- Control Arm ColorBlack

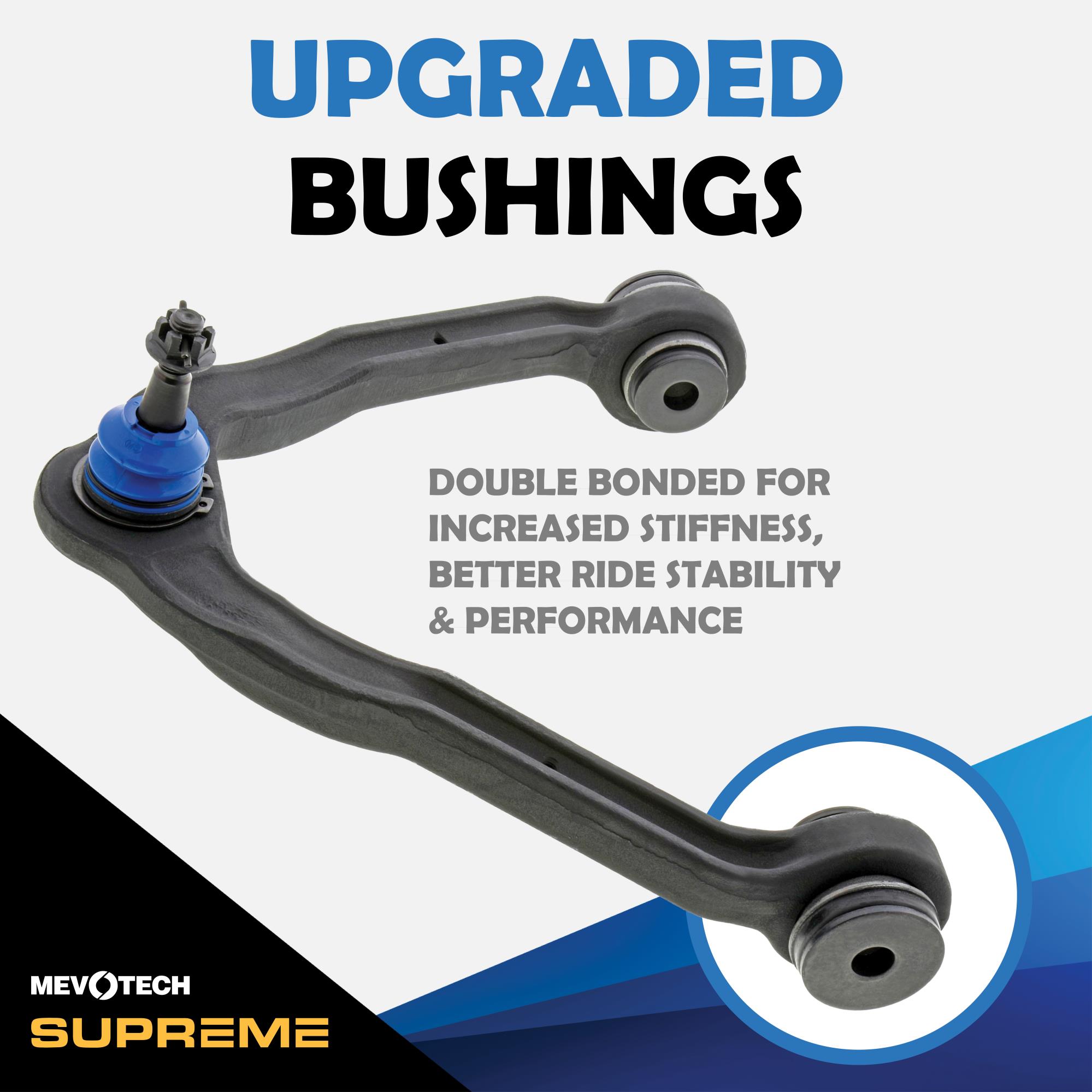

- Bushings IncludedYes
- Bushing MaterialRubber
- Ball Joint Stud TypeThreaded
- Mounting Hardware IncludedYes
- Dust Boot IncludedYes
- Dust Boot MaterialNeoprene
- Boot ColorBlue
Product Fit Check
Check Again
Year
Make
Model
Sub Model - Drive Type
| Make | Model | Year Range | Position | Configuration | Application Notes | Vehicle QTY |
| Cadillac | Escalade | 2006-2002 | Front Upper | Non-Adjustable Type | 2 | |
| Cadillac | Escalade ESV | 2006-2003 | Front Upper | Non-Adjustable Type | 2 | |
| Cadillac | Escalade EXT | 2006-2002 | Front Upper | Non-Adjustable Type | 2 | |
| Chevrolet | Avalanche 1500 | 2006-2002 | Front Upper | Non-Adjustable Type | 2 | |
| Chevrolet | Express 1500 | 2014-2003 | Front Upper | Non-Adjustable Type | 2 | |
| Chevrolet | Express 2500 | 2005-2003 | Front Upper | AWD | Non-Adjustable Type | 2 |
| Chevrolet | Express 2500 | 2005-2003 | Front Upper | RWD | Non-Adjustable Type, Under 7400lb Gross Vehicle Weight (GVW) | 2 |
| Chevrolet | Express 2500 | 2016-2006 | Front Upper | Non-Adjustable Type, Under 7500lb Gross Vehicle Weight (GVW) | 2 | |
| Chevrolet | Silverado 1500 | 2006-1999 | Front Upper | Non-Adjustable Type | 2 | |
| Chevrolet | Silverado 1500 Classic | 2007 | Front Upper | Non-Adjustable Type | 2 | |
| Chevrolet | Suburban 1500 | 2006-2000 | Front Upper | Non-Adjustable Type | 2 | |
| Chevrolet | Tahoe | 2006-2000 | Front Upper | Non-Adjustable Type | 2 | |
| GMC | Savana 1500 | 2014-2003 | Front Upper | Non-Adjustable Type | 2 | |
| GMC | Savana 2500 | 2005-2003 | Front Upper | RWD | Non-Adjustable Type | 2 |
| GMC | Savana 2500 | 2005-2003 | Front Upper | AWD | Non-Adjustable Type | 2 |
| GMC | Savana 2500 | 2016-2006 | Front Upper | Non-Adjustable Type, Under 7500lb Gross Vehicle Weight (GVW) | 2 | |
| GMC | Sierra 1500 | 2006-1999 | Front Upper | Non-Adjustable Type | 2 | |
| GMC | Sierra 1500 Classic | 2007 | Front Upper | Non-Adjustable Type | 2 | |
| GMC | Yukon | 2006-2000 | Front Upper | Non-Adjustable Type | 2 | |
| GMC | Yukon XL 1500 | 2000 | Front Upper | RWD | Non-Adjustable Type | 2 |
| GMC | Yukon XL 1500 | 2006-2001 | Front Upper | Non-Adjustable Type | 2 |
