Designed to meet or exceed OE specs for fit, form and function.
Documents
Technical Bulletins

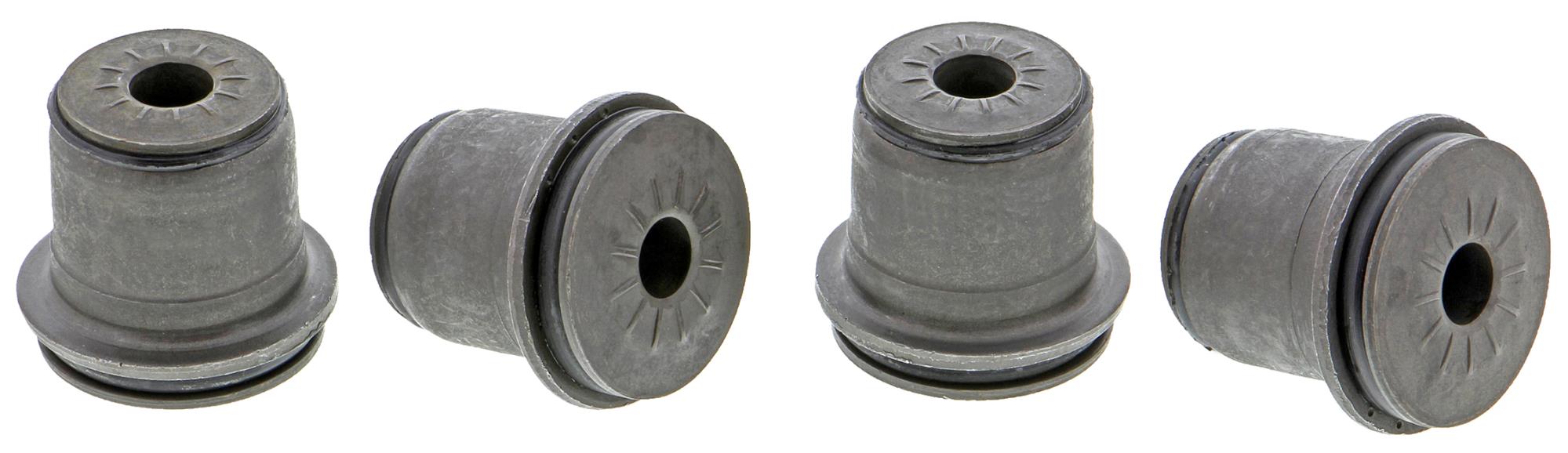

Part No: GK6417
Control Arm Bushing
Details
- HIGH DURABILITY: Manufactured with high grade natural rubber construction for maximum strength and durability.
- PRECISION ENGINEERED: Designed to match the fit and performance of original components.
Product Specifications
- MaterialNatural Rubber
- ColorGrey
- Inside Diameter0.563
- Outside Diameter1.72
- Wall Thickness0.58
- Bushing Quantity4
Product Fit Check
Check Again
Year
Make
Model
Sub Model - Drive Type
| Make | Model | Year Range | Position | Configuration | Application Notes | Vehicle QTY |
| Cadillac | Escalade | 2000-1999 | Front Upper | Both Upper Arms Service Replacement | 1 | |
| Chevrolet | Astro | 2005-1990 | Front Upper | AWD | Both Upper Arms Service Replacement | 1 |
| Chevrolet | Blazer | 1994-1992 | Front Upper | Both Upper Arms Service Replacement, 43mm Outside Diameter | 1 | |
| Chevrolet | C1500 | 1995 | Front Upper | Both Upper Arms Service Replacement, 43mm Outside Diameter | 1 | |
| Chevrolet | C1500 | 1999-1996 | Front Upper | Both Upper Arms Service Replacement | 1 | |
| Chevrolet | C1500 Suburban | 1995 | Front Upper | Both Upper Arms Service Replacement, 43mm Outside Diameter | 1 | |
| Chevrolet | C1500 Suburban | 1999-1996 | Front Upper | Both Upper Arms Service Replacement | 1 | |
| Chevrolet | C2500 | 1994-1989 | Front Upper | Both Upper Arms Service Replacement, with 8600lb Gross Vehicle Weight (GVW) | 1 | |
| Chevrolet | C2500 | 1995 | Front Upper | Both Upper Arms Service Replacement, 43mm Outside Diameter, with 7200lb or 8600lb Gross Vehicle Weight (GVW) | 1 | |
| Chevrolet | C2500 | 2000-1996 | Front Upper | Both Upper Arms Service Replacement | 1 | |
| Chevrolet | C2500 Suburban | 1999-1992 | Front Upper | Both Upper Arms Service Replacement | 1 | |
| Chevrolet | C3500 | 1989 | Front Upper | Both Upper Arms Service Replacement, 43mm Outside Diameter, with Independent Front Suspension | 1 | |
| Chevrolet | C3500 | 2000-1990 | Front Upper | Both Upper Arms Service Replacement, with Independent Front Suspension | 1 | |
| Chevrolet | Express 2500 | 2002-1996 | Front Upper | Both Upper Arms Service Replacement, with 8600lb Gross Vehicle Weight (GVW) | 1 | |
| Chevrolet | Express 3500 | 2002-1996 | Front Upper | Both Upper Arms Service Replacement | 1 | |
| Chevrolet | K1500 | 1989 | Front Upper | Both Upper Arms Service Replacement, 43mm Outside Diameter | 1 | |
| Chevrolet | K1500 | 1999-1990 | Front Upper | Both Upper Arms Service Replacement | 1 | |
| Chevrolet | K1500 Suburban | 1999-1992 | Front Upper | Both Upper Arms Service Replacement | 1 | |
| Chevrolet | K2500 | 1989 | Front Upper | Both Upper Arms Service Replacement, 43mm Outside Diameter | 1 | |
| Chevrolet | K2500 | 2000-1990 | Front Upper | Both Upper Arms Service Replacement | 1 | |
| Chevrolet | K2500 Suburban | 1999-1992 | Front Upper | Both Upper Arms Service Replacement | 1 | |
| Chevrolet | K3500 | 1989 | Front Upper | Both Upper Arms Service Replacement, 43mm Outside Diameter | 1 | |
| Chevrolet | K3500 | 2000-1990 | Front Upper | Both Upper Arms Service Replacement | 1 | |
| Chevrolet | Tahoe | 1995 | Front Upper | 4WD | Both Upper Arms Service Replacement | 1 |
| Chevrolet | Tahoe | 1995 | Front Upper | RWD | Both Upper Arms Service Replacement, 43mm Outside Diameter | 1 |
| Chevrolet | Tahoe | 1999-1996 | Front Upper | Both Upper Arms Service Replacement | 1 | |
| Chevrolet | Tahoe | 2000 | Front Upper | 5.7L, V8 | Both Upper Arms Service Replacement, V8 5.7L, Engine CC: -, Engine CID: 350 | 1 |
| GMC | 1000 Series | 1965-1963 | Front Upper | Both Upper Arms Service Replacement | 1 | |
| GMC | C1500 | 1995 | Front Upper | Both Upper Arms Service Replacement, 43mm Outside Diameter | 1 | |
| GMC | C1500 | 1999-1996 | Front Upper | Both Upper Arms Service Replacement | 1 | |
| GMC | C1500 Suburban | 1995 | Front Upper | Both Upper Arms Service Replacement, 43mm Outside Diameter | 1 | |
| GMC | C1500 Suburban | 1999-1996 | Front Upper | Both Upper Arms Service Replacement | 1 | |
| GMC | C2500 | 1994-1989 | Front Upper | Both Upper Arms Service Replacement, with 8600lb Gross Vehicle Weight (GVW) | 1 | |
| GMC | C2500 | 1995 | Front Upper | Both Upper Arms Service Replacement, 43mm Outside Diameter, with 7200lb or 8600lb Gross Vehicle Weight (GVW) | 1 | |
| GMC | C2500 | 2000-1996 | Front Upper | Both Upper Arms Service Replacement | 1 | |
| GMC | C2500 Suburban | 1999-1992 | Front Upper | Both Upper Arms Service Replacement | 1 | |
| GMC | C3500 | 1989 | Front Upper | Both Upper Arms Service Replacement, 43mm Outside Diameter, with Independent Front Suspension | 1 | |
| GMC | C3500 | 2000-1990 | Front Upper | Both Upper Arms Service Replacement, with Independent Front Suspension | 1 | |
| GMC | K1500 | 1989 | Front Upper | Both Upper Arms Service Replacement, 43mm Outside Diameter | 1 | |
| GMC | K1500 | 1999-1990 | Front Upper | Both Upper Arms Service Replacement | 1 | |
| GMC | K1500 Suburban | 1999-1992 | Front Upper | Both Upper Arms Service Replacement | 1 | |
| GMC | K2500 | 1989 | Front Upper | Both Upper Arms Service Replacement, 43mm Outside Diameter | 1 | |
| GMC | K2500 | 2000-1990 | Front Upper | Both Upper Arms Service Replacement | 1 | |
| GMC | K2500 Suburban | 1999-1992 | Front Upper | Both Upper Arms Service Replacement | 1 | |
| GMC | K3500 | 1989 | Front Upper | Both Upper Arms Service Replacement, 43mm Outside Diameter | 1 | |
| GMC | K3500 | 2000-1990 | Front Upper | Both Upper Arms Service Replacement | 1 | |
| GMC | Safari | 2005-1990 | Front Upper | AWD | Both Upper Arms Service Replacement | 1 |
| GMC | Savana 2500 | 2002-1996 | Front Upper | Both Upper Arms Service Replacement, with 8600lb Gross Vehicle Weight (GVW) | 1 | |
| GMC | Savana 3500 | 2002-1999 | Front Upper | Both Upper Arms Service Replacement | 1 | |
| GMC | Yukon | 1994-1992 | Front Upper | Both Upper Arms Service Replacement | 1 | |
| GMC | Yukon | 1995 | Front Upper | 4WD | Both Upper Arms Service Replacement | 1 |
| GMC | Yukon | 1995 | Front Upper | RWD | Both Upper Arms Service Replacement, 43mm Outside Diameter | 1 |
| GMC | Yukon | 1999-1996 | Front Upper | Both Upper Arms Service Replacement | 1 |
