Part No: TXBPM1490

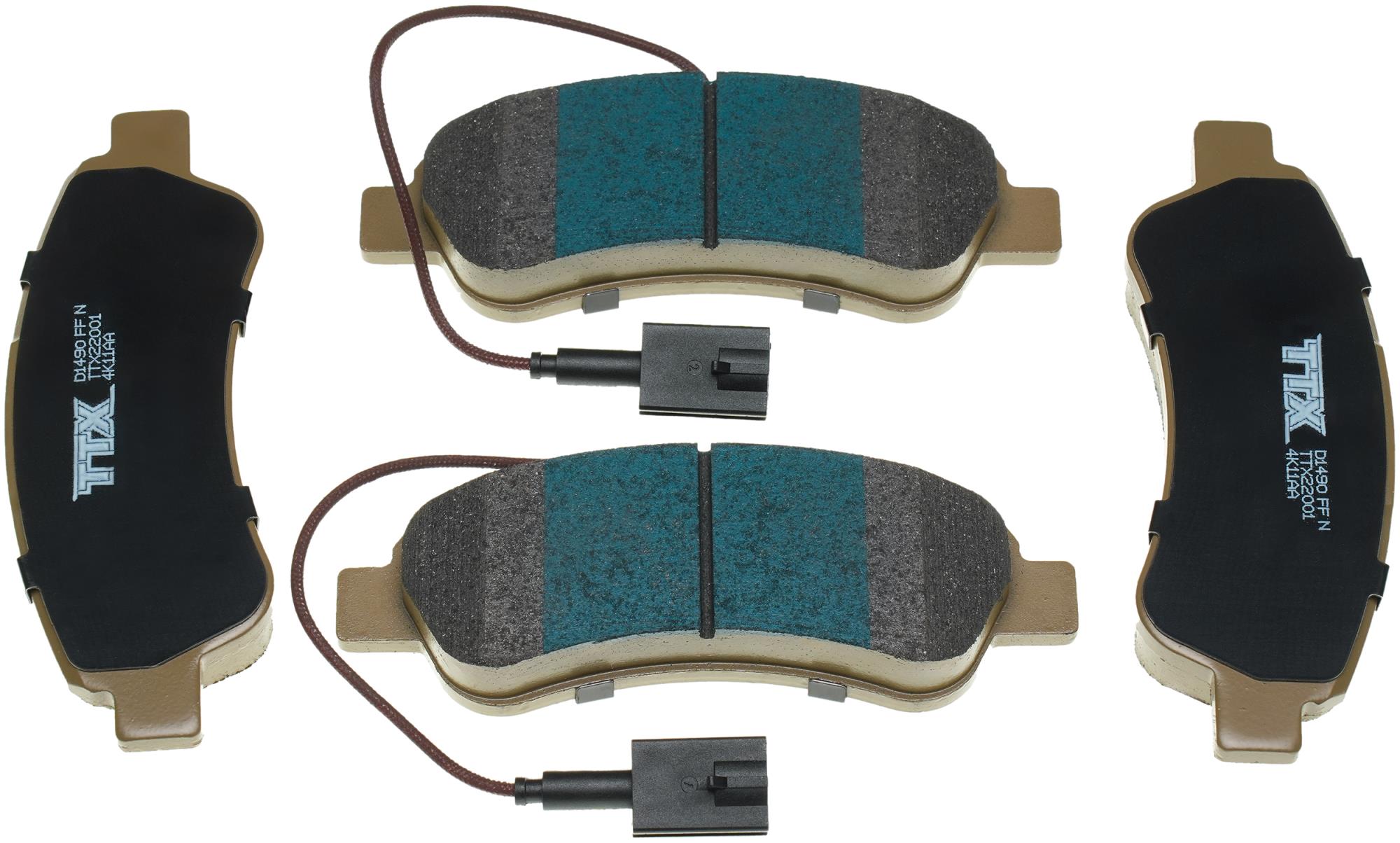

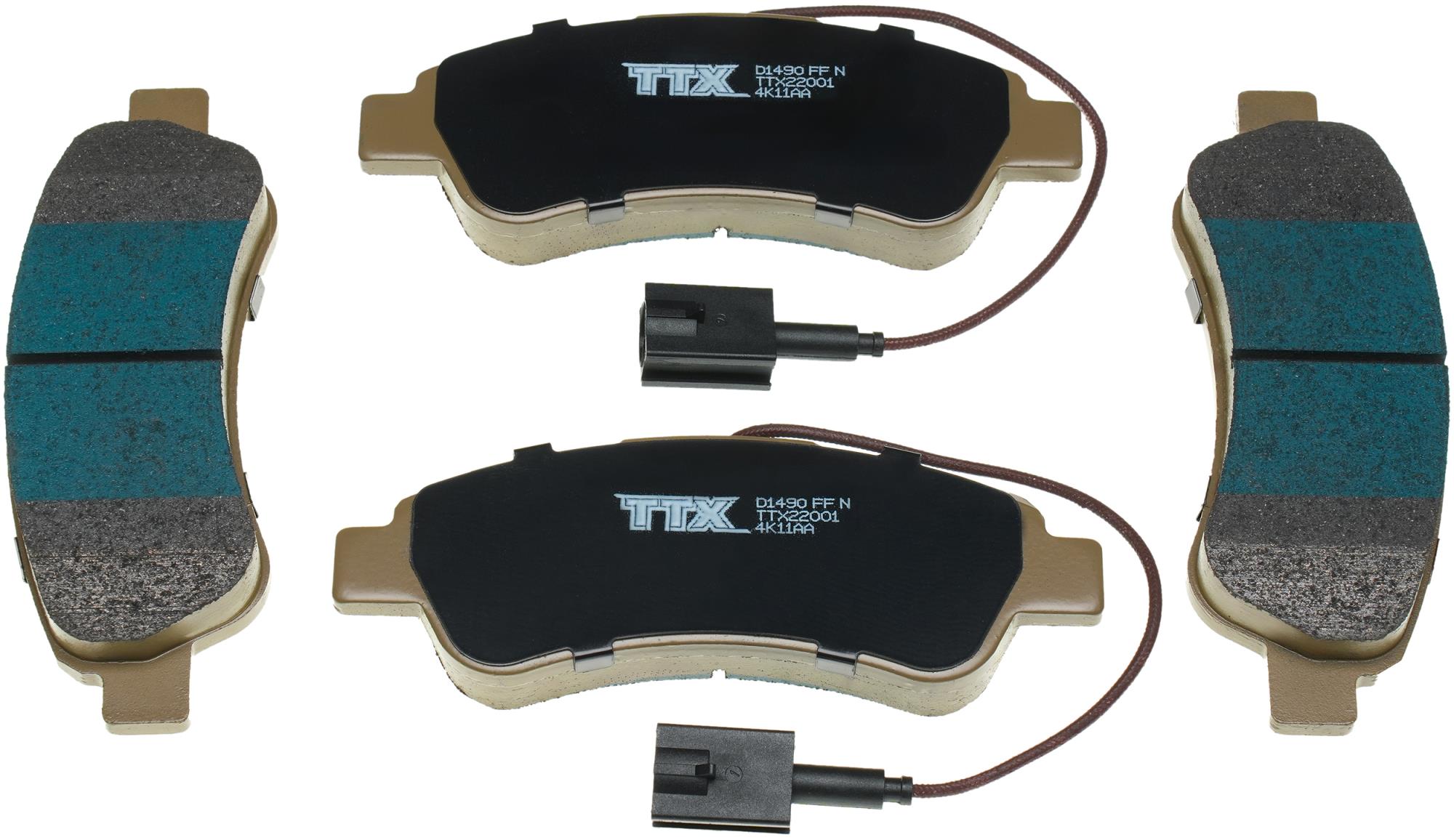

Brake Pads Set w/ Hardware

When braking performance takes precedence over noise and dust, Premium Met™ brakes are specifically engineered for on-road usage in severe driving conditions. Suitable for higher payloads and towing, they have excellent fade resistance and stopping power, along with high performance in all weather conditions.

Details

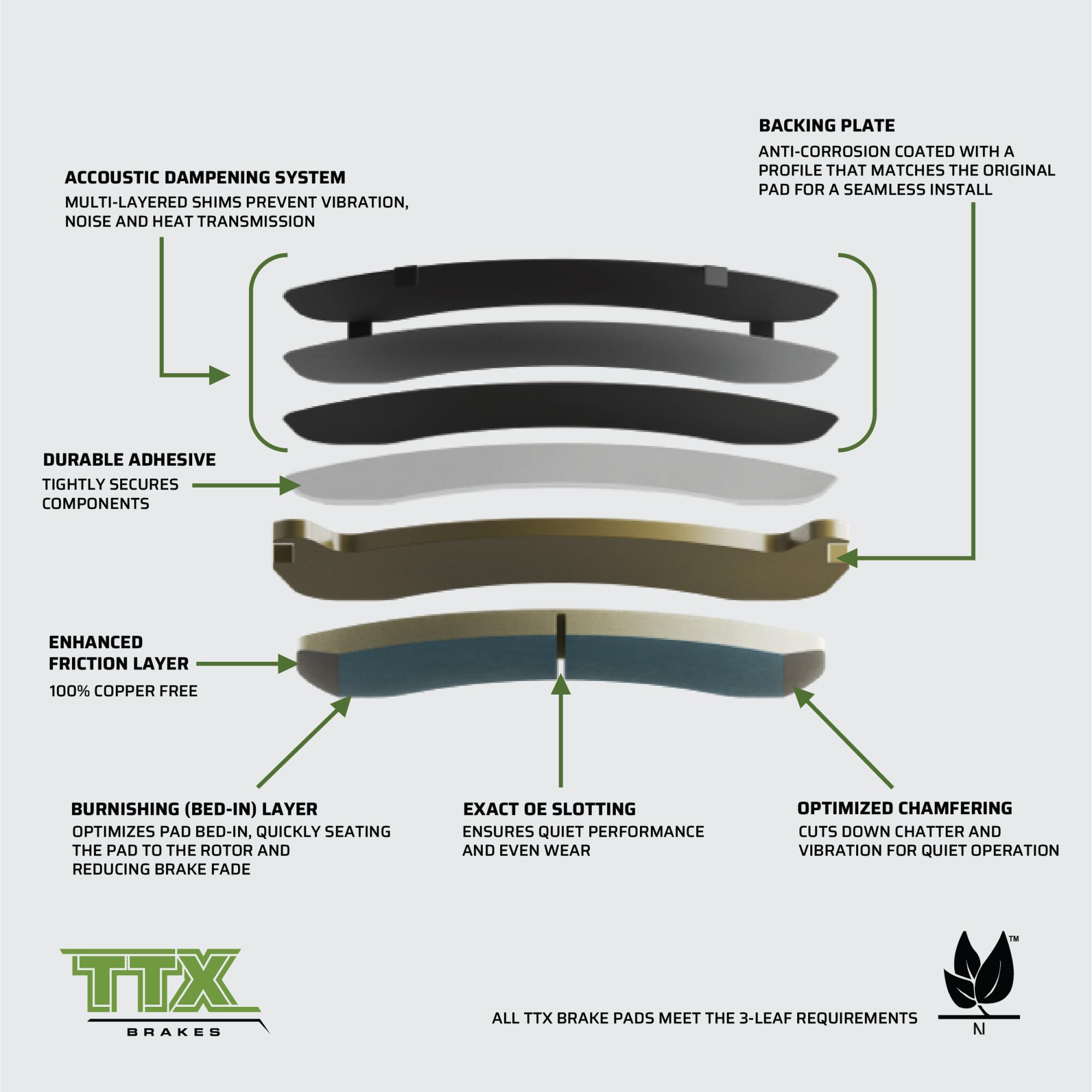

  • CORROSION-RESISTANT COATING: Helps shield pads from rust and extends service life.
  • POST CURING PROCESS: Delivers consistent pad performance and reduces brake fade.
  • POSITIVE MOLD TECHNOLOGY: Ensures consistent friction density for even wear and reliable performance.

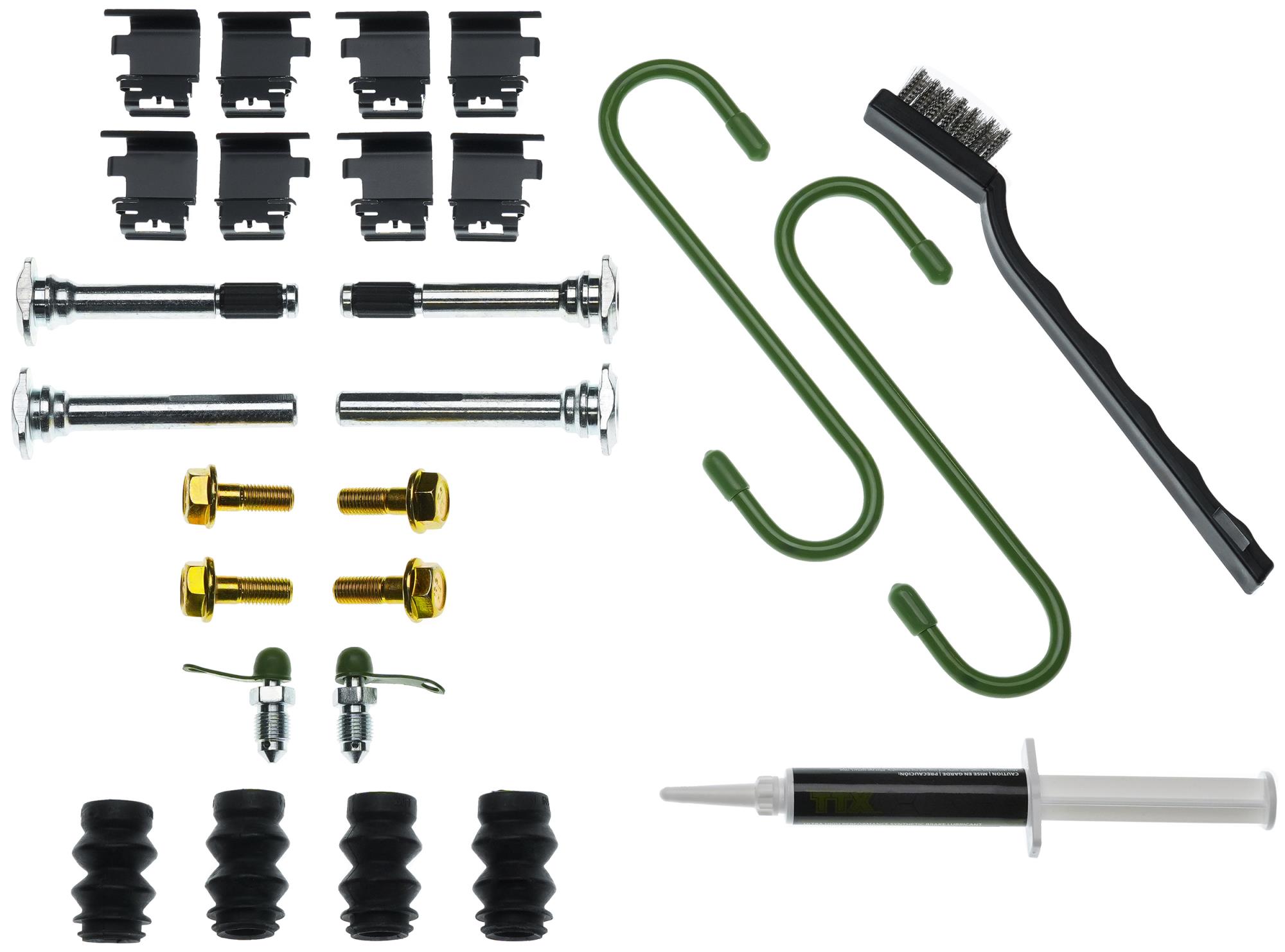

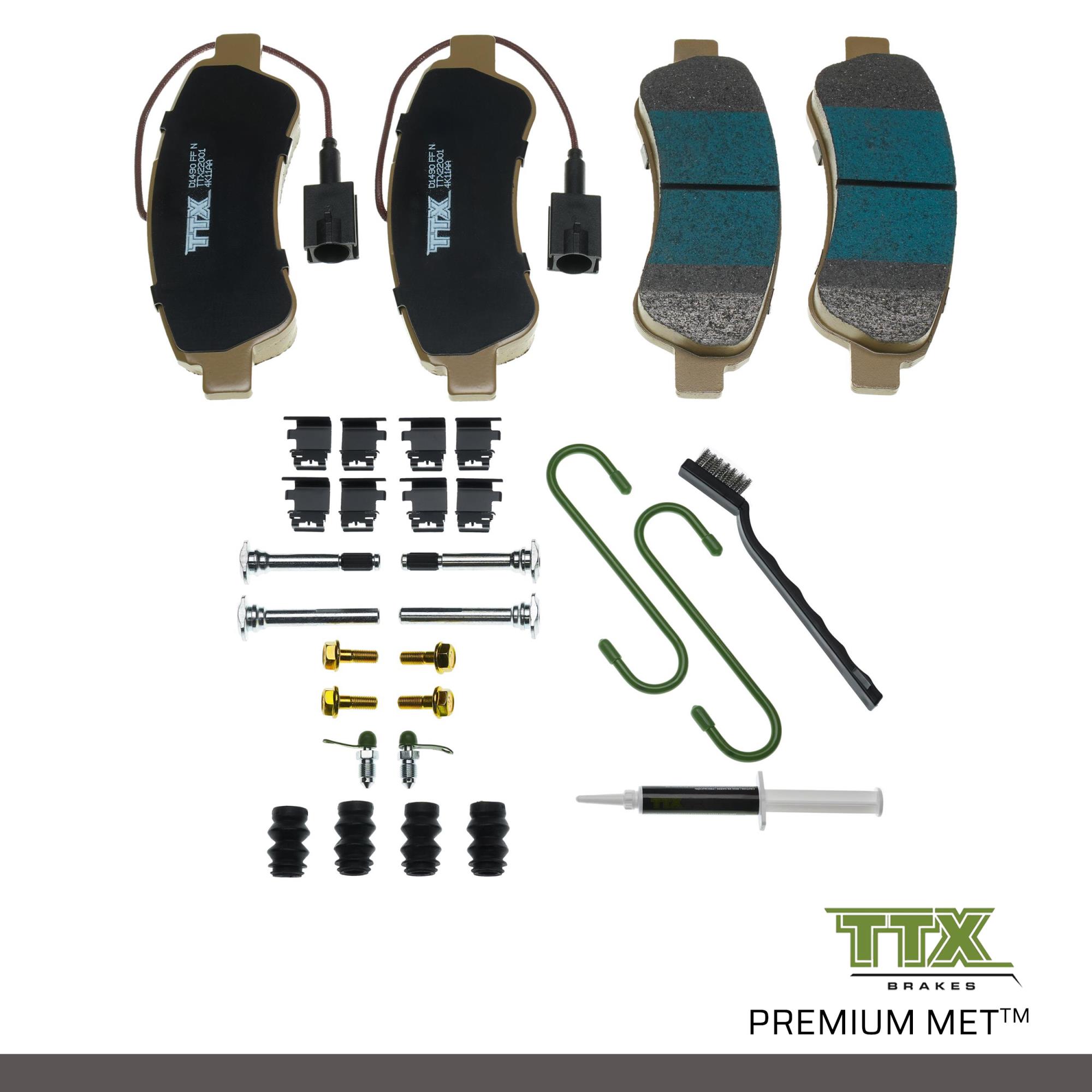

  • COMPLETE BRAKE PAD INSTALL KIT: Includes abutment clips, caliper hangers, bleeder screws, boots, bracket bolts, slide pins, anti-rattle springs, brake pad wear sensors, indicator, wire brush, and lubricant (varies by application).
  • EXACT OE SLOTTING & OPTIMIZED CHAMFERING: Cuts-down chatter, vibration and ensures quiet performance and even wear.
  • BURNISHING BED-IN LAYER: Optimizes pad bed-in, quickly seating the pad to the rotor and minimizes brake fade.
  • MECHANICAL PAD LOCKING SYSTEM: Secures friction material to the backing plate, preventing delamination under high loads.
  • PREMIUM LUBRICATION: OE-grade PTFE formula ensures smooth pad movement, reduced brake noise, and even wear.

Product Specifications

  • Abutment Clips IncludedYes
  • Adhesive Backed Pad ShimYes
  • Backing MaterialSteel
  • Backing Plate ColorArmy Green
  • Bolts IncludedYes
  • Brake Lubricant IncludedYes
  • Chamfered EdgesYes
  • FMSI NumberD1490-9017
  • Friction Material AttachmentBonded
  • Friction Material CompositionLow-Metallic
  • Friction Surface ScorchedYes
  • Grade TypePremium
  • Mounting Hardware IncludedYes
  • Inner Pad Friction Material Thickness12.8
  • Inner Pad Height49.3
  • Inner Pad Overall Thickness18.2
  • Inner Pad Width136.9
  • Outer Pad Friction Material Thickness12.8
  • Outer Pad Height49.3
  • Outer Pad Overall Thickness18.2
  • Outer Pad Width136.9
  • Pad Quantity4
  • Pad Shims IncludedYes
  • Pad Shim Material4 Layer Design
  • Pad Shim ColorBlack
  • Prepared For Pad Wear SensorYes
  • Pad Wear Sensor IncludedYes
  • Pad Wear Sensor TypeElectronic
  • SlottedYes
  • Wear Indicator AttachedYes
  • Wire BrushYes
  • Caliper HangerYes
  • Bleeder Screw CapYes

Product Fit Check

Check Again

Year

Make

Model

Sub Model - Drive Type

Search

Buyers Guide

Make Model Year Range Position Configuration Application Notes Vehicle QTY
Ram ProMaster 1500 2021-2014 Rear with Solid Rear Rotors 1
Ram ProMaster 2500 2016-2014 Rear without Heavy Duty Brakes 1
Ram ProMaster 2500 2021-2017 Rear with Solid Rear Rotors 1
Ram ProMaster 3500 2016-2014 Rear without Heavy Duty Brakes 1
Ram ProMaster 3500 2021-2017 Rear with Solid Rear Rotors 1
