Part No: CTXK80670

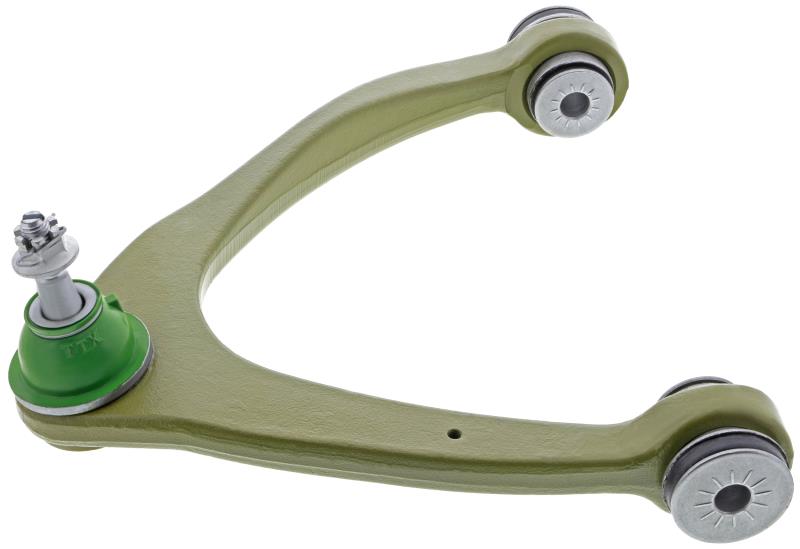

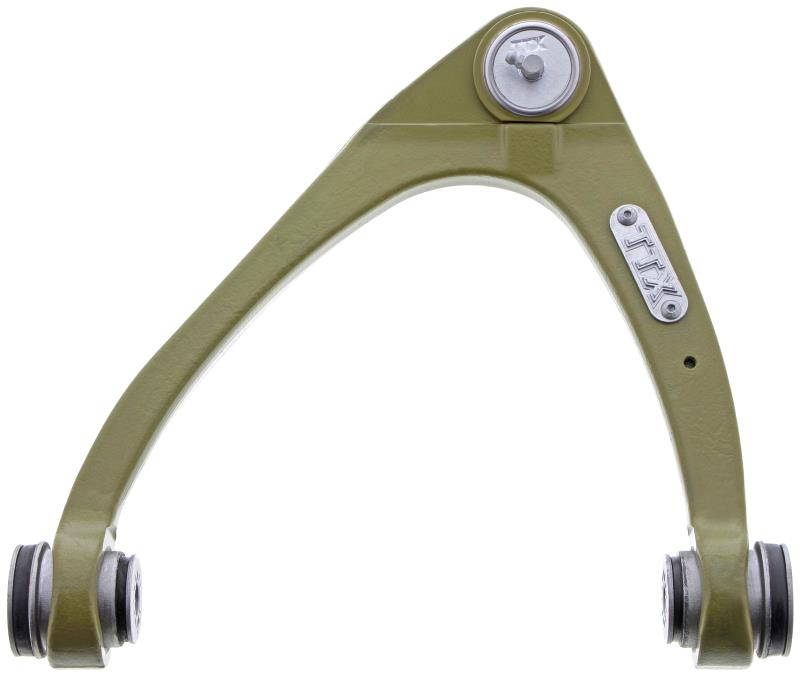

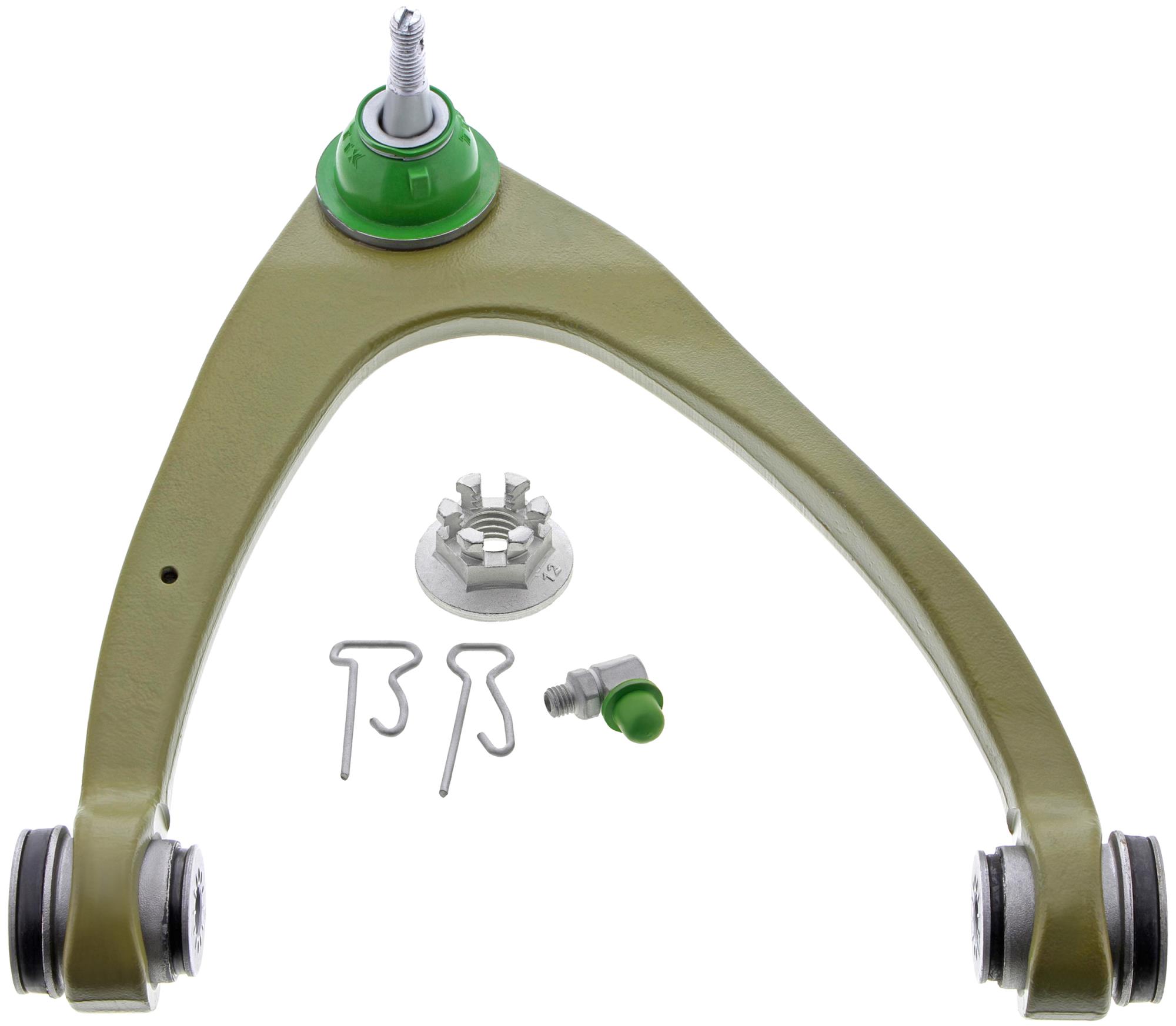

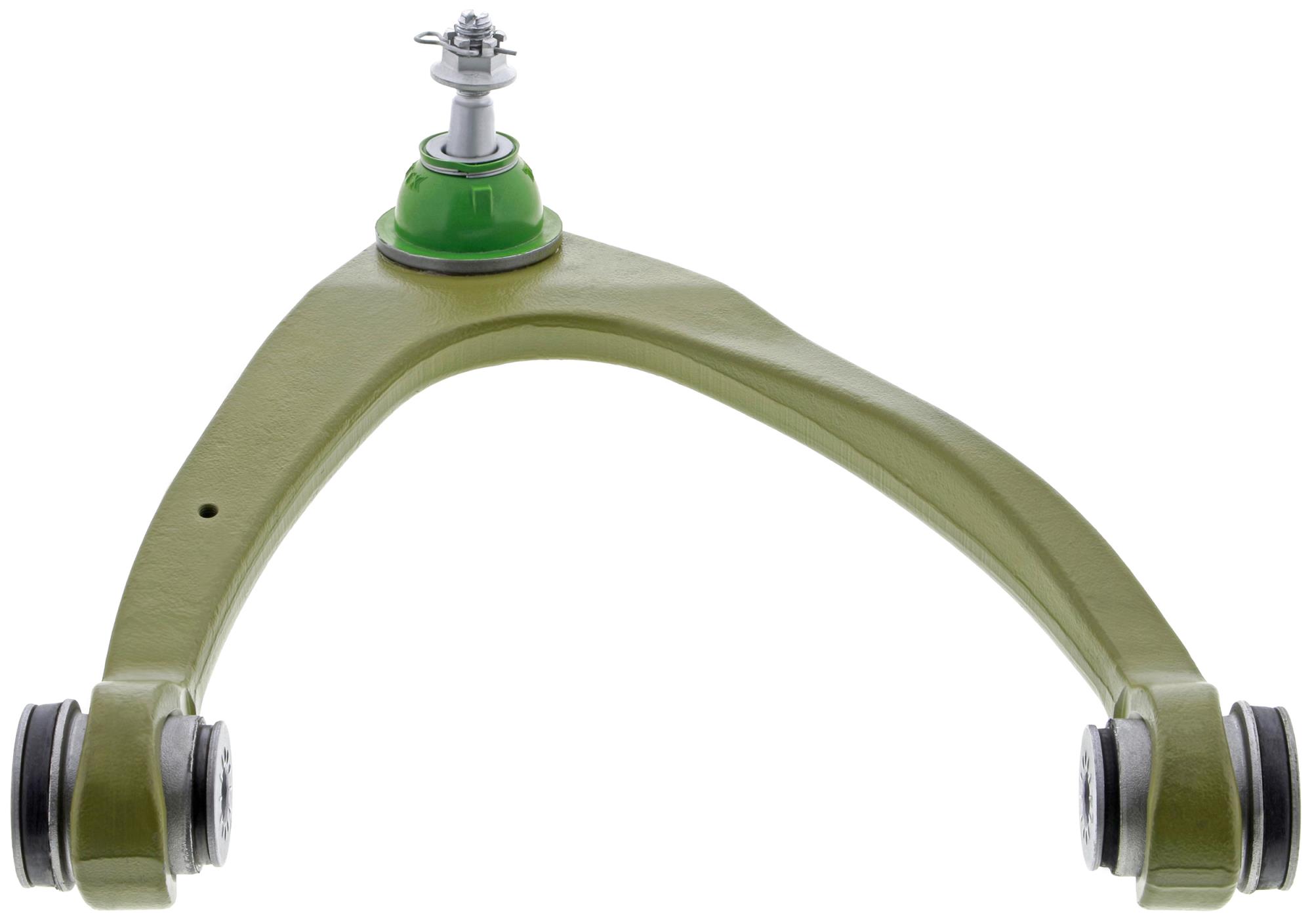

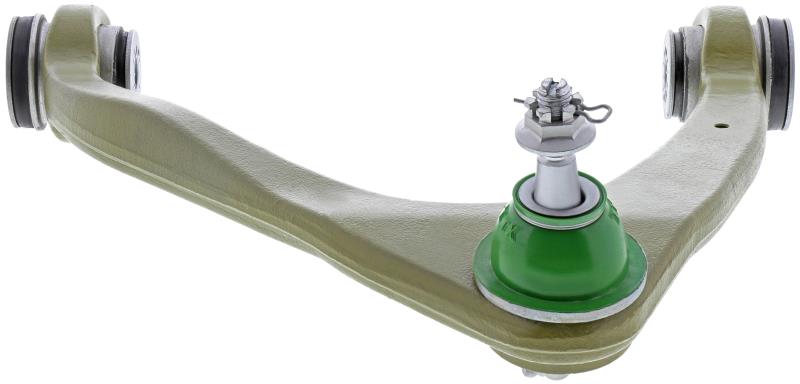

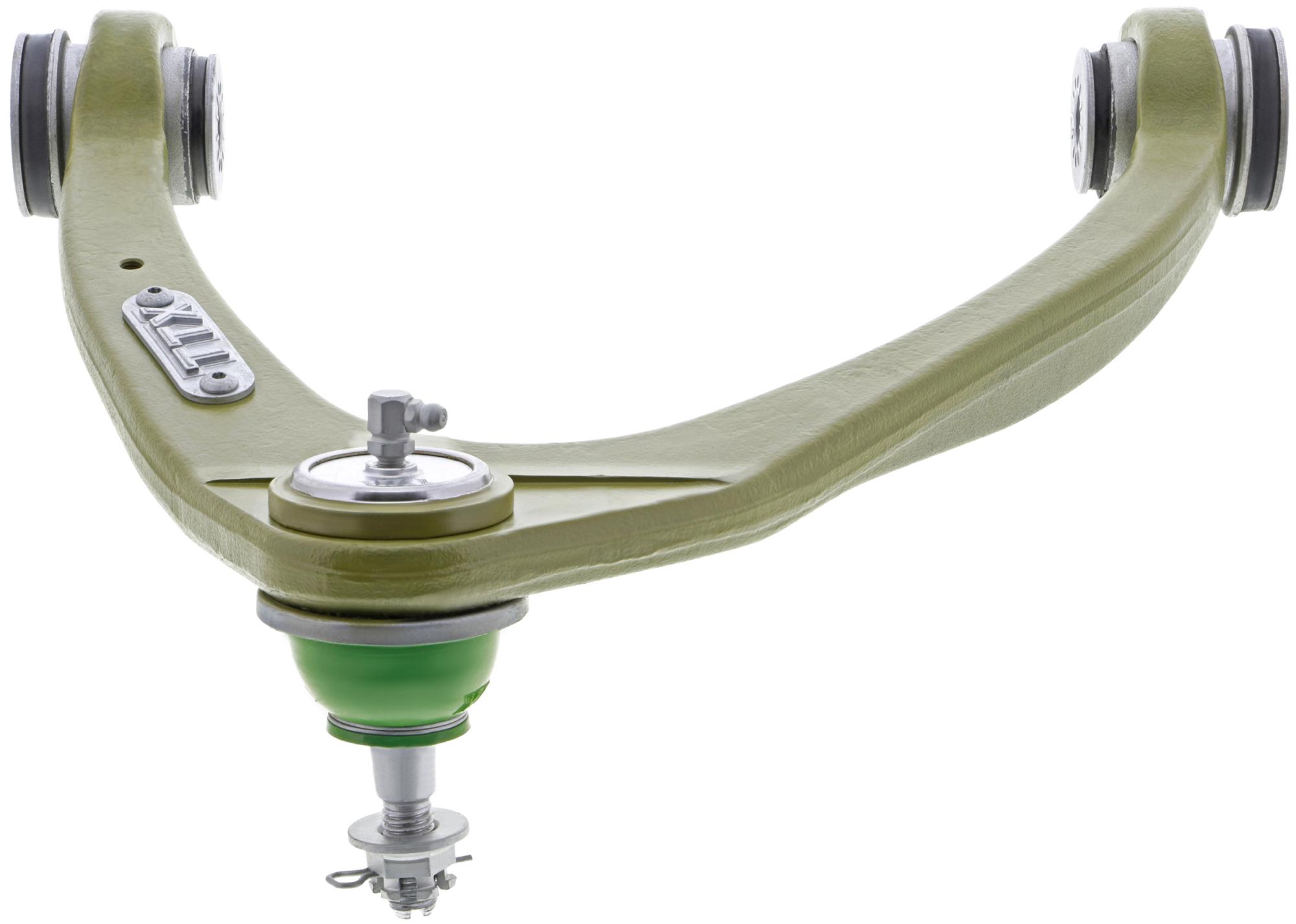

Control Arm and Ball Joint Assembly
Mevotech TTX™ parts are engineered with cutting-edge technology to be the strongest, most durable parts on the market. Built for high-usage commercial and passenger vehicles, SUVs, fleets and working trucks, TTX™ control arms deliver extreme performance. Plus, innovative Labor Saver™ designs, tools and hardware make installations faster and easier.
Details
- MAXIMUM TOUGHNESS: Get longer-lasting performance from patented sintered bearings.
- LOCKS OUT CONTAMINANTS: Ensure a superior seal with a patented sealing ring that permanently locks the boot onto the ball joint housing.
- STRONGER BUILD: Rely on superior strength with a forged steel control arm with a reinforced ball joint head & thicker cross section for added durability.

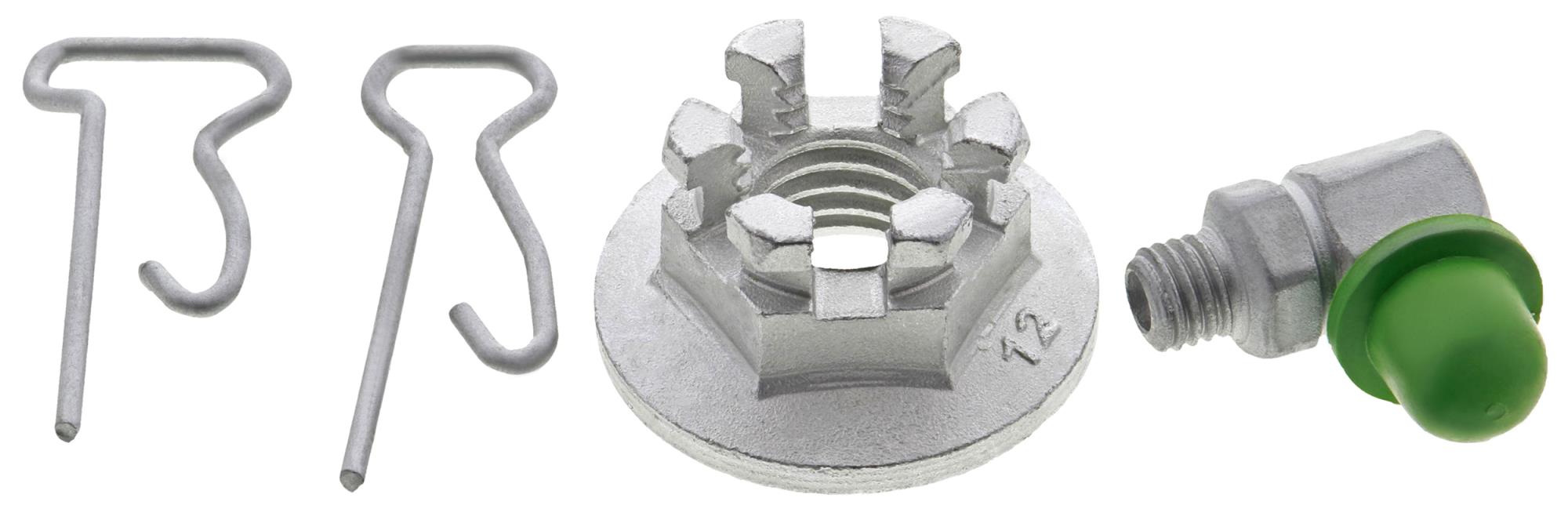

- QUICK AND EASY INSTALLATION: Simply secure ball joint to the vehicle with part specific slotted castle nut & easy snap cotter pin provided.
- SIMPLE TO SERVICE: Make servicing a snap with the 90 degree SAE grease fitting included.
- THE ULTIMATE HIGH-PERFORMANCE DESIGN: Experience higher performance from upgraded rubber bushings with knurling that secures the control arm bushing to the sub-frame.
- LARGER SPHERE DESIGN: Optimize performance with an application-specific ball stud system with larger sphere.
- A STRONGER BOND: Keep fasteners secure and vibration resistant with pre-applied nylok thread adhesive.
- LONGER SERVICE LIFE: Prevent rust build-up with Repel-TEK™ surface treatment for a longer life.
Product Specifications
- Bearing MaterialSintered Metal
- Pre-GreasedYes
- GreaseableYes
- Grease Fitting IncludedYes
- AdjustableNo
- Control Arm MaterialSteel
- Control Arm ColorGold
- Bushings IncludedYes
- Bushing MaterialRubber
- Ball Joint Stud TypeThreaded
- Mounting Hardware IncludedYes
Product Fit Check
Check Again
Year
Make
Model
Sub Model - Drive Type
| Make | Model | Year Range | Position | Configuration | Application Notes | Vehicle QTY |
| Cadillac | Escalade | 2014-2007 | Front Right Upper | 1 | ||
| Cadillac | Escalade | 2017-2015 | Front Right Upper | with Police Package | 1 | |
| Cadillac | Escalade ESV | 2014-2007 | Front Right Upper | 1 | ||
| Cadillac | Escalade ESV | 2016-2015 | Front Right Upper | with Police Package | 1 | |
| Cadillac | Escalade EXT | 2013-2007 | Front Right Upper | 1 | ||
| Chevrolet | Avalanche | 2013-2007 | Front Right Upper | 1 | ||
| Chevrolet | Silverado 1500 | 2012-2007 | Front Right Upper | 1 | ||
| Chevrolet | Silverado 1500 | 2013 | Front Right Upper | Cast Iron Arm | 1 | |
| Chevrolet | Silverado 1500 | 2016-2014 | Front Right Upper | 4WD | Cast Iron Arm | 1 |
| Chevrolet | Silverado 1500 | 2016-2014 | Front Right Upper | RWD | Cast Iron Arm | 1 |
| Chevrolet | Suburban 1500 | 2014-2007 | Front Right Upper | 1 | ||
| Chevrolet | Tahoe | 2014-2007 | Front Right Upper | 1 | ||
| Chevrolet | Tahoe | 2015 | Front Right Upper | PPV | 1 | |
| Chevrolet | Tahoe | 2016 | Front Right Upper | PPV | To Mid Year | 1 |
| GMC | Sierra 1500 | 2012-2007 | Front Right Upper | 1 | ||
| GMC | Sierra 1500 | 2013 | Front Right Upper | Cast Iron Arm | 1 | |
| GMC | Sierra 1500 | 2016-2014 | Front Right Upper | 4WD | Cast Iron Arm | 1 |
| GMC | Sierra 1500 | 2016-2014 | Front Right Upper | RWD | Cast Iron Arm | 1 |
| GMC | Yukon | 2014-2007 | Front Right Upper | 1 | ||
| GMC | Yukon XL 1500 | 2014-2007 | Front Right Upper | 1 |
