Part No: CTXMS50153

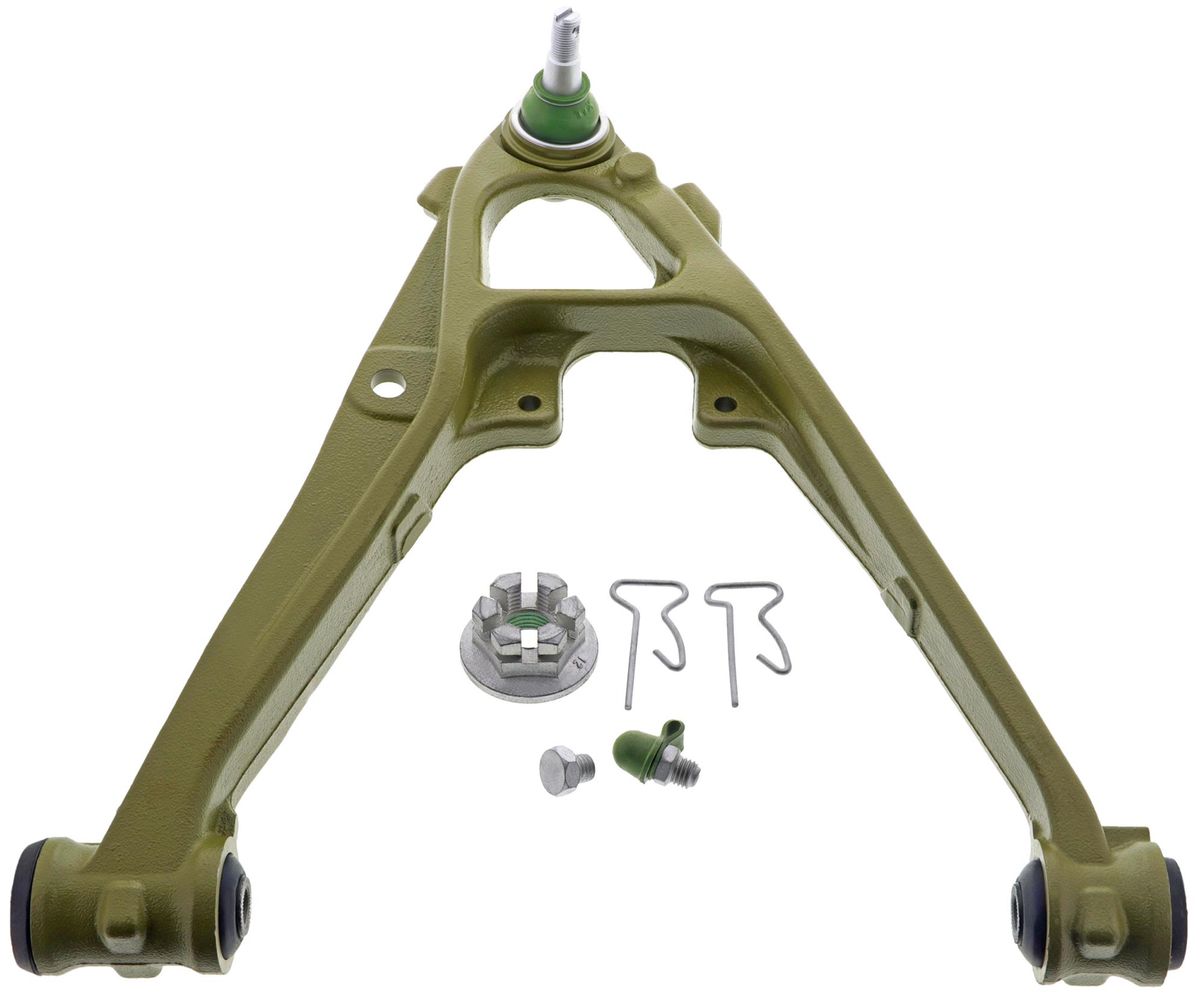

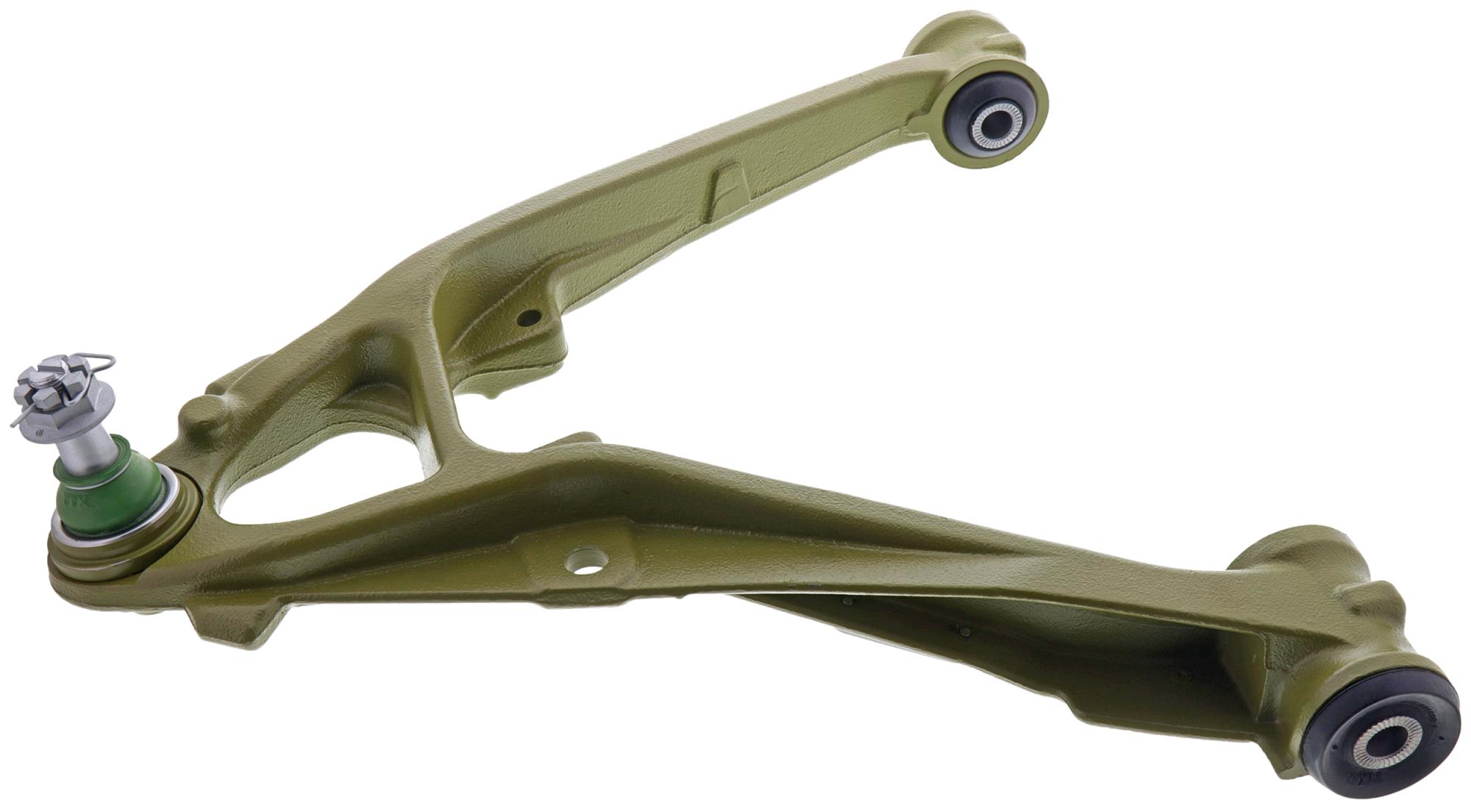

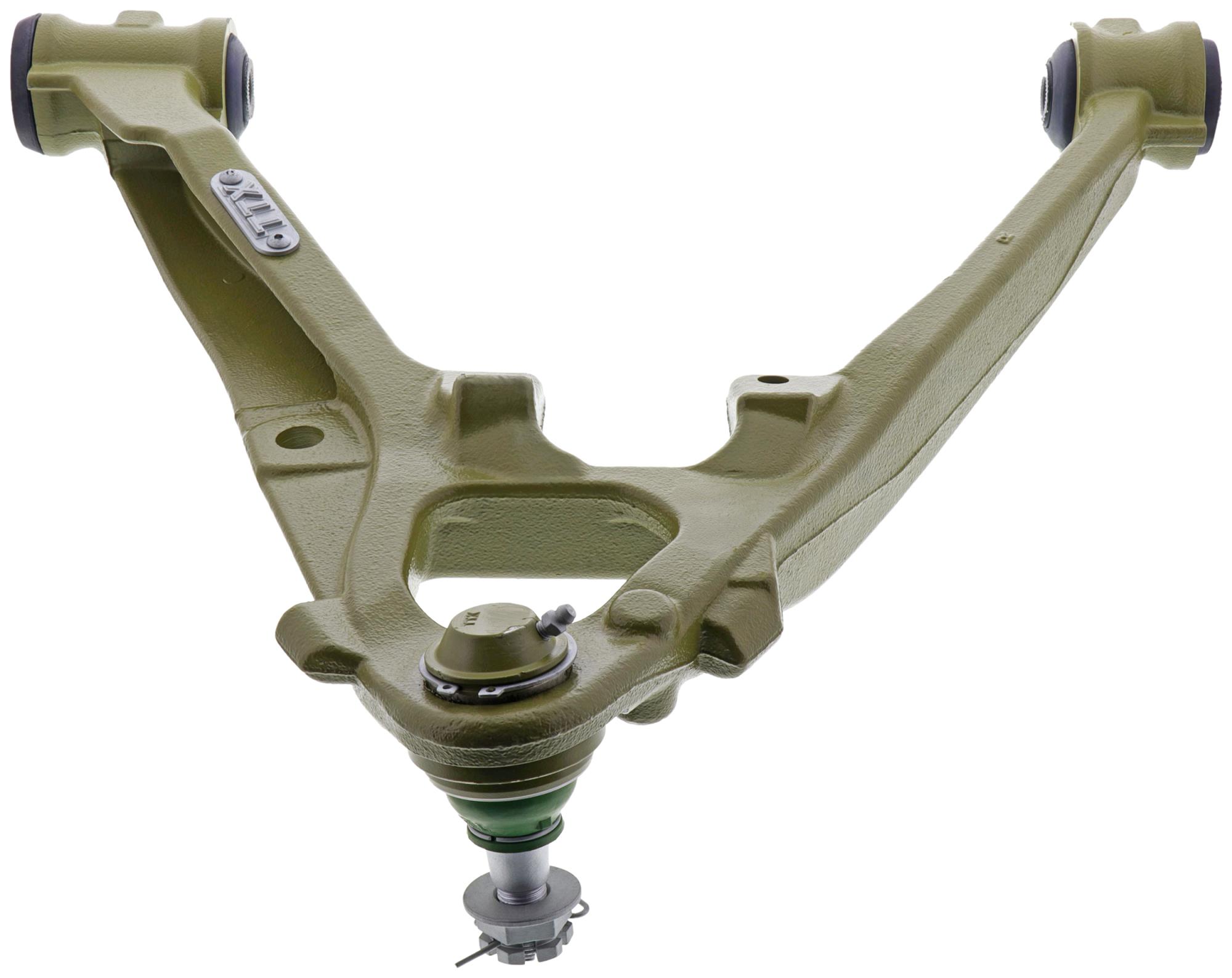

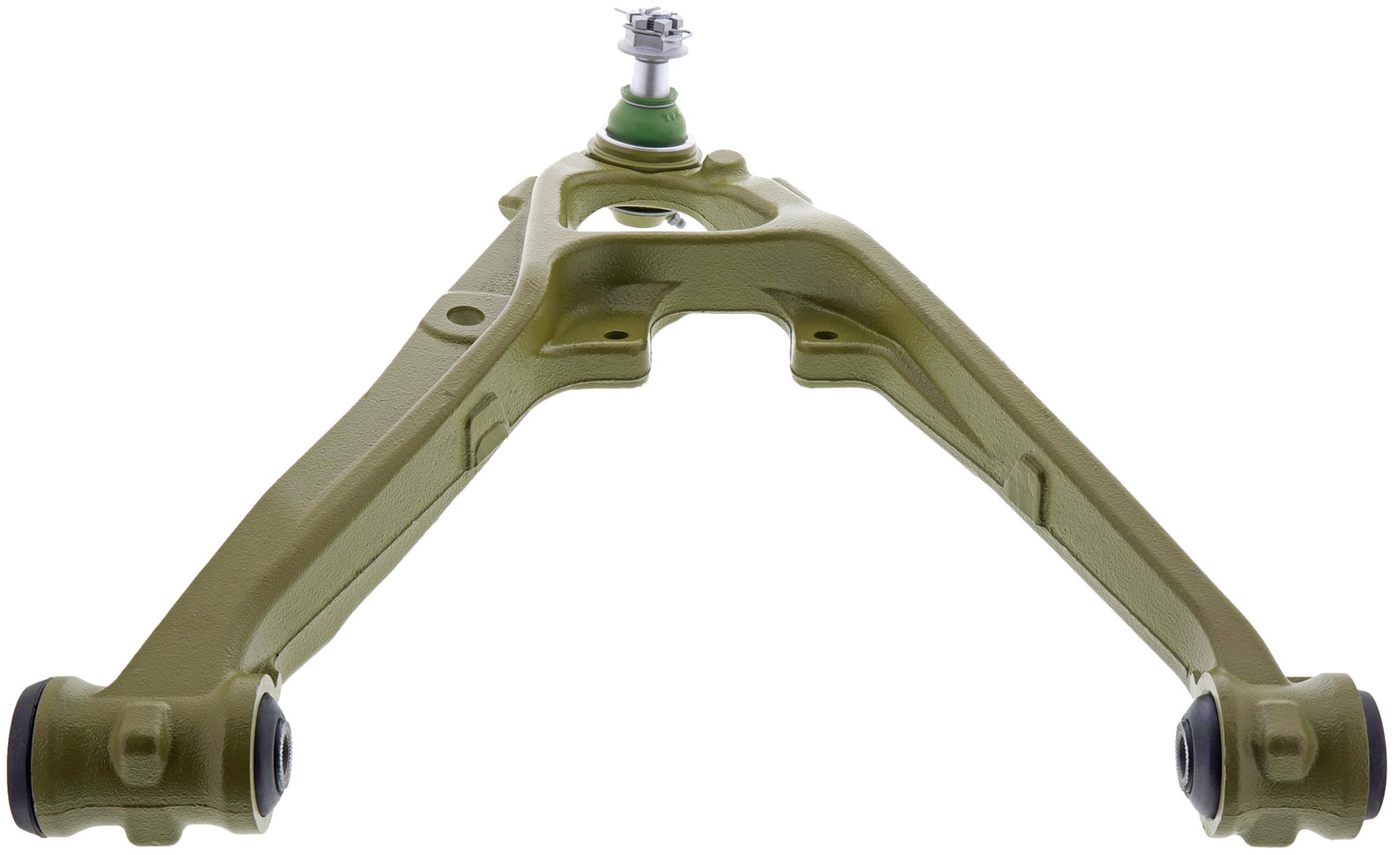

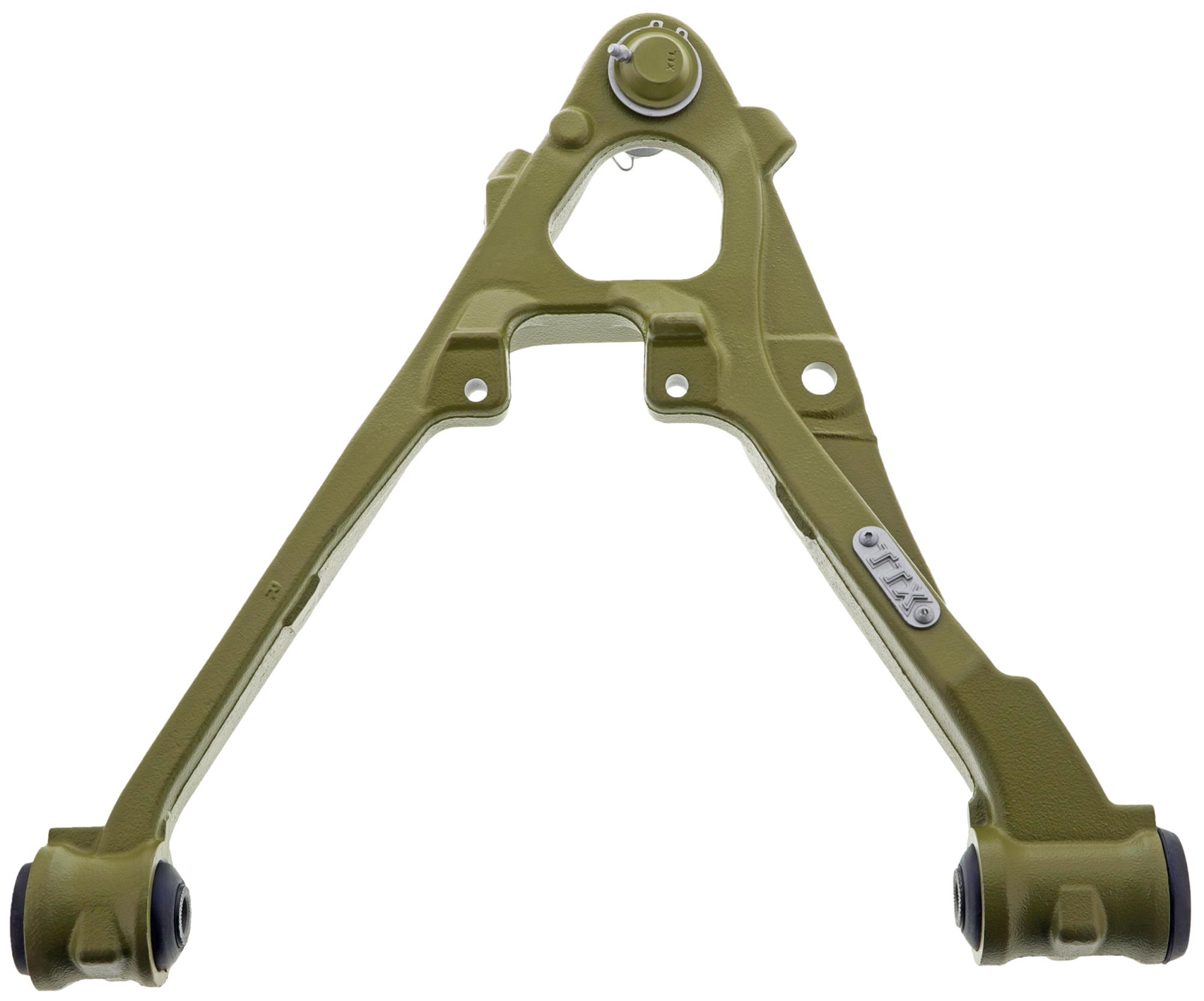

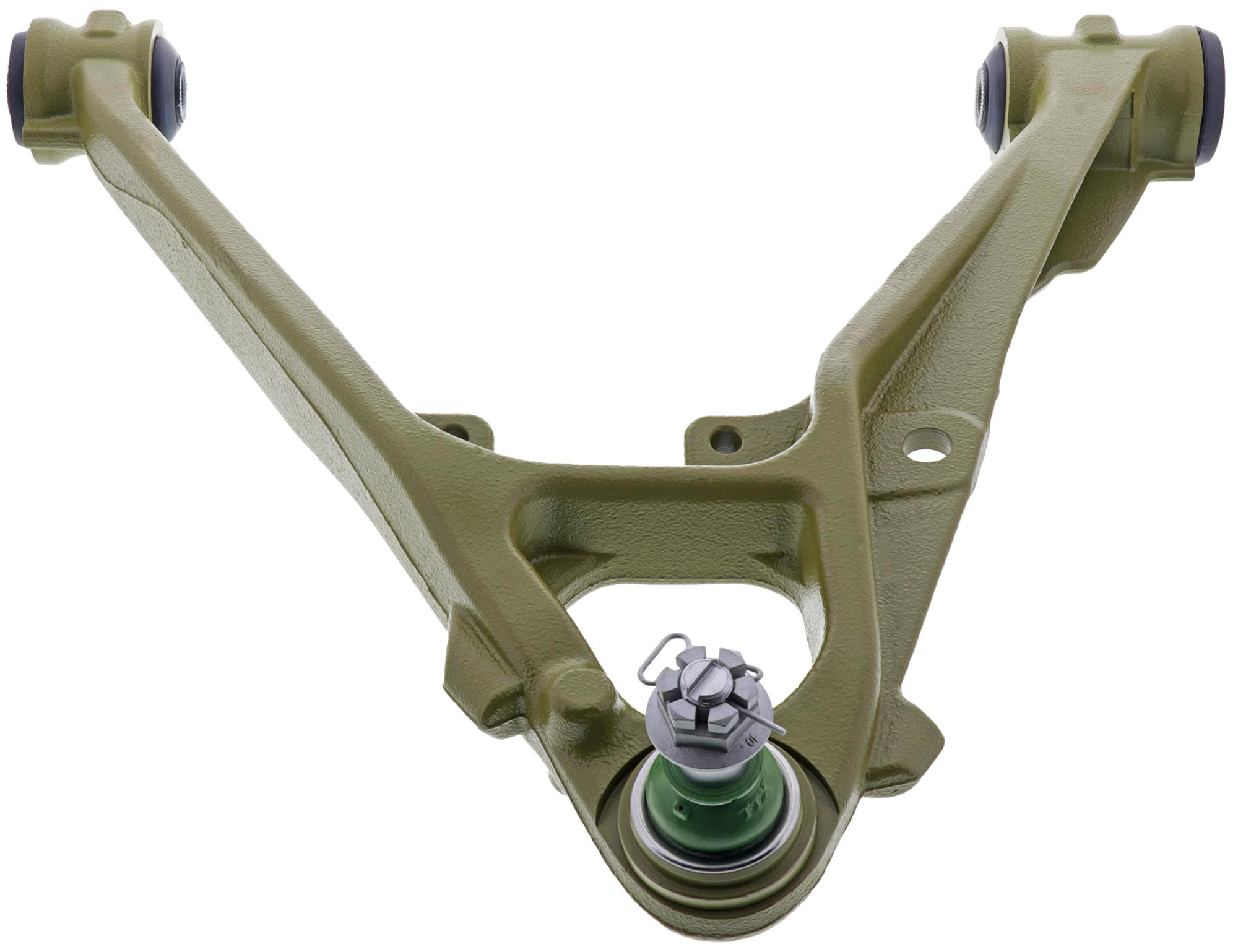

Control Arm and Ball Joint Assembly

Mevotech TTX™ parts are engineered with cutting-edge technology to be the strongest, most durable parts on the market. Built for high-usage commercial and passenger vehicles, SUVs, fleets and working trucks, TTX™ control arms deliver extreme performance. Plus, innovative Labor Saver™ designs, tools and hardware make installations faster and easier.

Details

  • MAXIMUM TOUGHNESS: Get longer-lasting performance from patented sintered bearings.

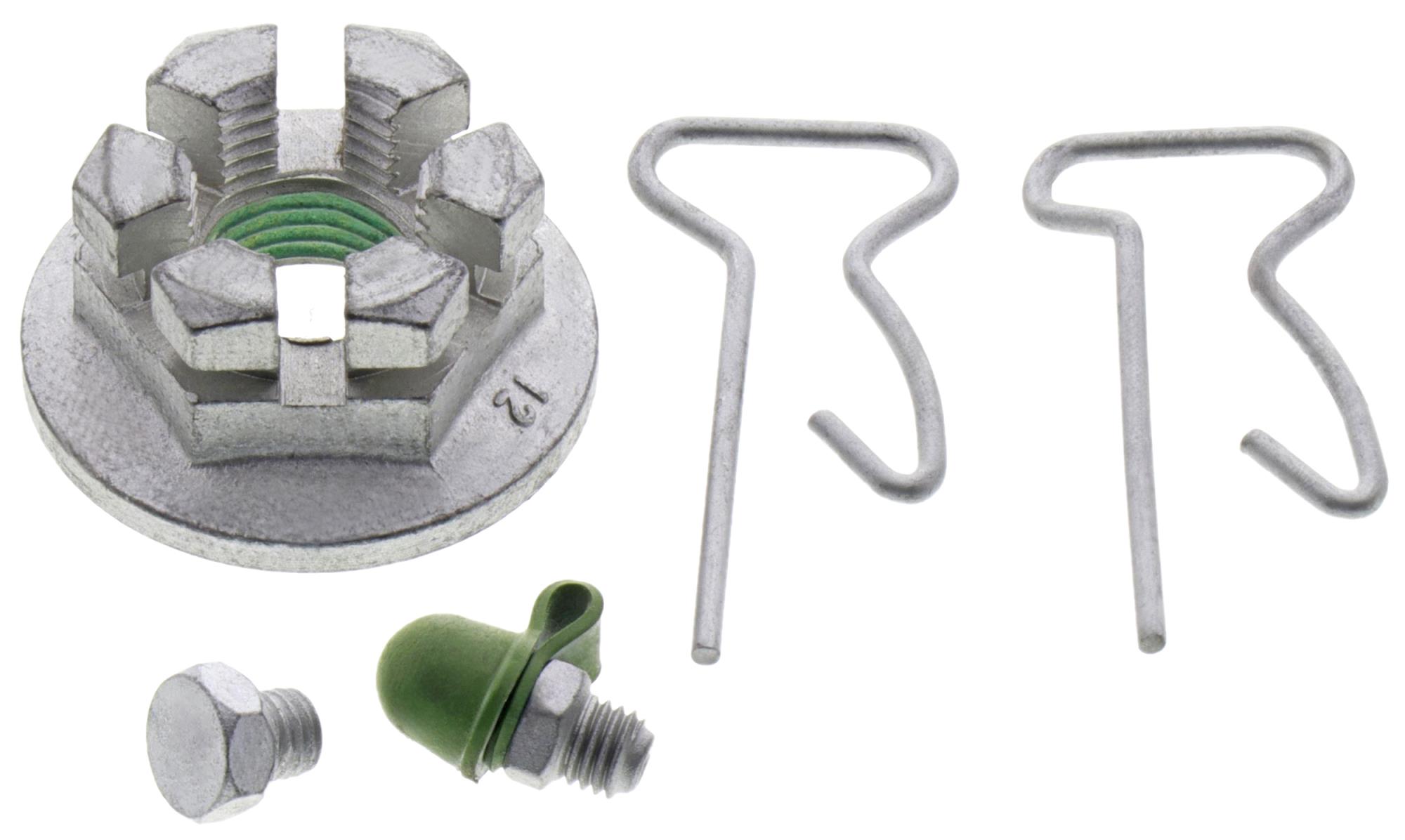

  • QUICK AND EASY INSTALLATION: Simply secure ball joint to the vehicle with part specific slotted castle nut & easy snap cotter pin provided.
  • SUPERIOR SEAL: Lock out moisture and contaminants with Integri-Boot™ design built into the ball joint assembly.
  • SIMPLE TO SERVICE: Make servicing a snap with the 180 degree SAE grease fitting included.
  • THE ULTIMATE HIGH-PERFORMANCE DESIGN: Experience higher performance from upgraded rubber bushings with knurling that secures the control arm bushing to the sub-frame.
  • LARGER SPHERE DESIGN: Optimize performance with an application-specific ball stud system with larger sphere.
  • EXCEPTIONAL FIT AND FUNCTION: Prevent deformation during installation with this ball joint designed with a thicker, stronger flange.
  • A STRONGER BOND: Keep fasteners secure and vibration resistant with pre-applied nylok thread adhesive.
  • OPTIMAL PERFORMANCE: Meet or exceed OE specifications with cast steel construction.
  • LONGER SERVICE LIFE: Prevent rust build-up with Repel-TEK™ surface treatment for a longer life.

Product Specifications

  • Ball Joint Mounting TypePress In
  • Bearing MaterialSintered Metal
  • Pre-GreasedYes
  • GreaseableYes
  • Grease Fitting IncludedYes
  • AdjustableNo
  • Control Arm MaterialSteel
  • Control Arm ColorGold
  • Bushings IncludedYes
  • Bushing MaterialRubber
  • Ball Joint Stud TypeThreaded
  • Mounting Hardware IncludedYes

Product Fit Check

Search
Check Again

Buyers Guide

Make Model Year Range Position Configuration Application Notes Vehicle QTY
Cadillac Escalade 2014-2007 Front Right Lower Forged Steel Control Arm 1
Cadillac Escalade ESV 2014-2007 Front Right Lower Forged Steel Control Arm 1
Cadillac Escalade EXT 2013-2007 Front Right Lower Forged Steel Control Arm 1
Chevrolet Avalanche 2013-2007 Front Right Lower Forged Steel Control Arm 1
Chevrolet Silverado 1500 2013-2007 Front Right Lower Forged Steel Control Arm 1
Chevrolet Silverado 1500 2016-2014 Front Right Lower 4WD Forged Steel Control Arm 1
Chevrolet Silverado 1500 2016-2014 Front Right Lower RWD Forged Steel Control Arm 1
Chevrolet Suburban 1500 2014-2007 Front Right Lower Forged Steel Control Arm 1
Chevrolet Tahoe 2014-2007 Front Right Lower Forged Steel Control Arm 1
Chevrolet Tahoe 2015 Front Right Lower PPV Forged Steel Control Arm 1
Chevrolet Tahoe 2016 Front Right Lower PPV Forged Steel Control Arm, Except Mid Model Year 1
GMC Sierra 1500 2013-2007 Front Right Lower Forged Steel Control Arm 1
GMC Sierra 1500 2016-2014 Front Right Lower 4WD Forged Steel Control Arm 1
GMC Sierra 1500 2016-2014 Front Right Lower RWD Forged Steel Control Arm 1
GMC Yukon 2014-2007 Front Right Lower Forged Steel Control Arm 1
GMC Yukon 2016 Front Right Lower Forged Steel Control Arm 1
GMC Yukon XL 1500 2014-2007 Front Right Lower Forged Steel Control Arm 1
