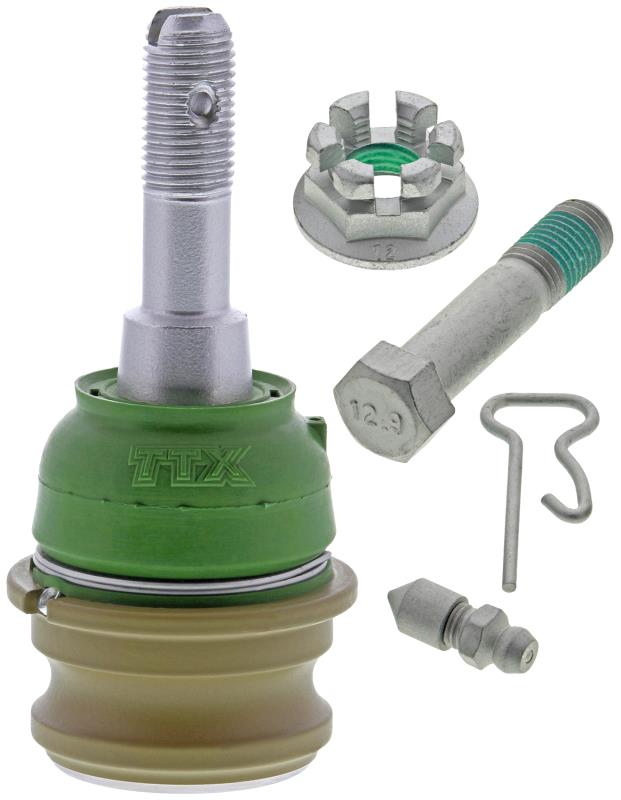

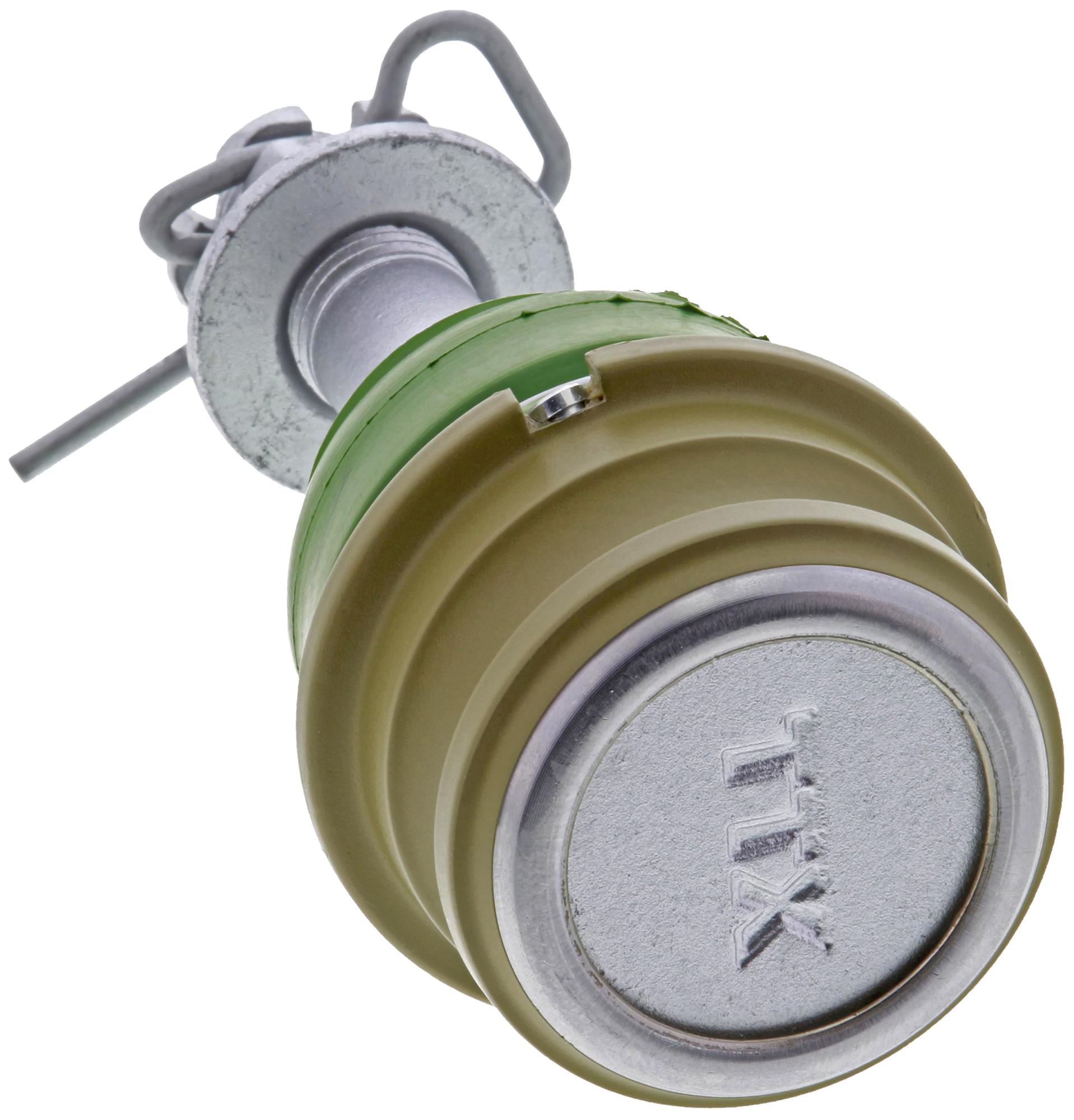

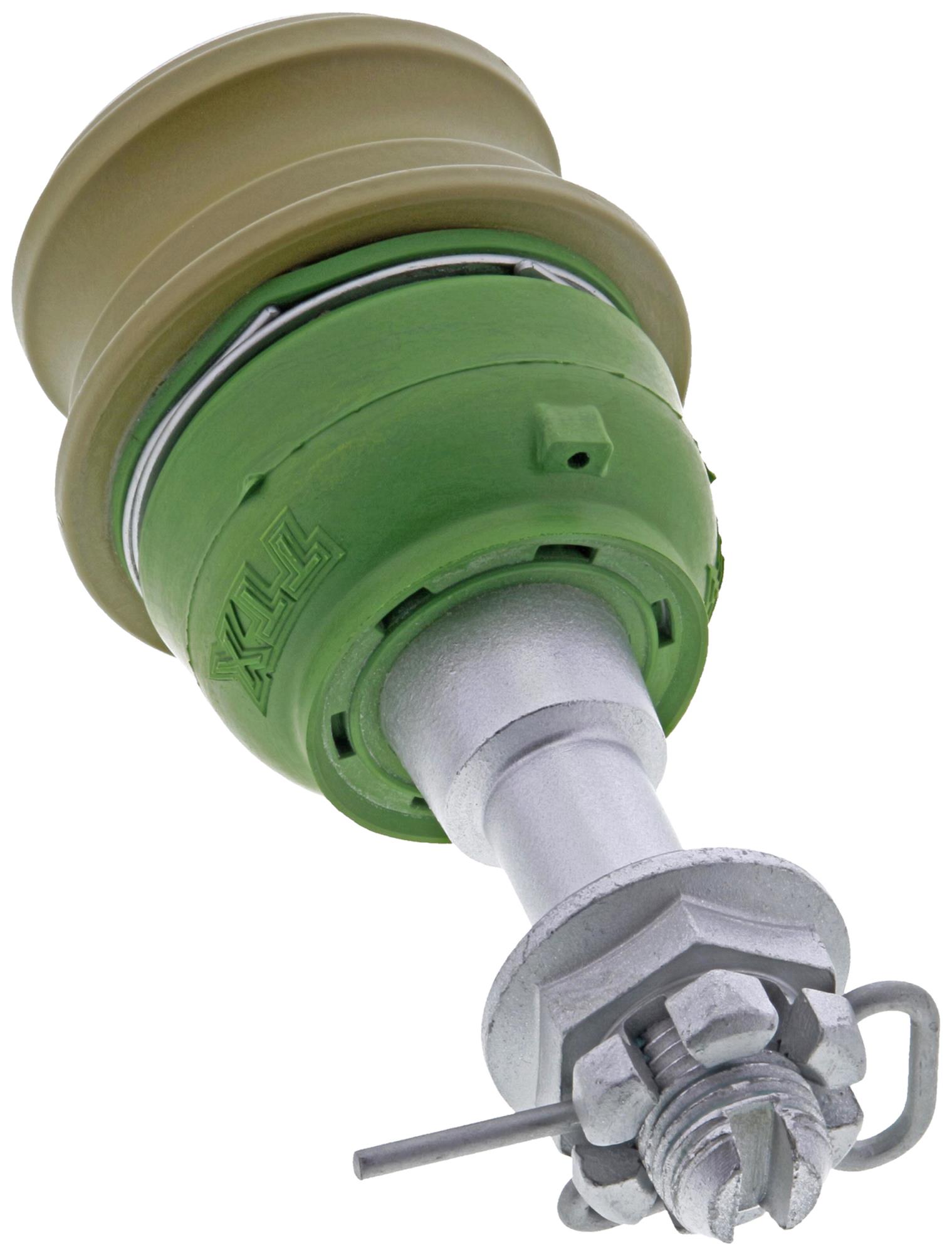

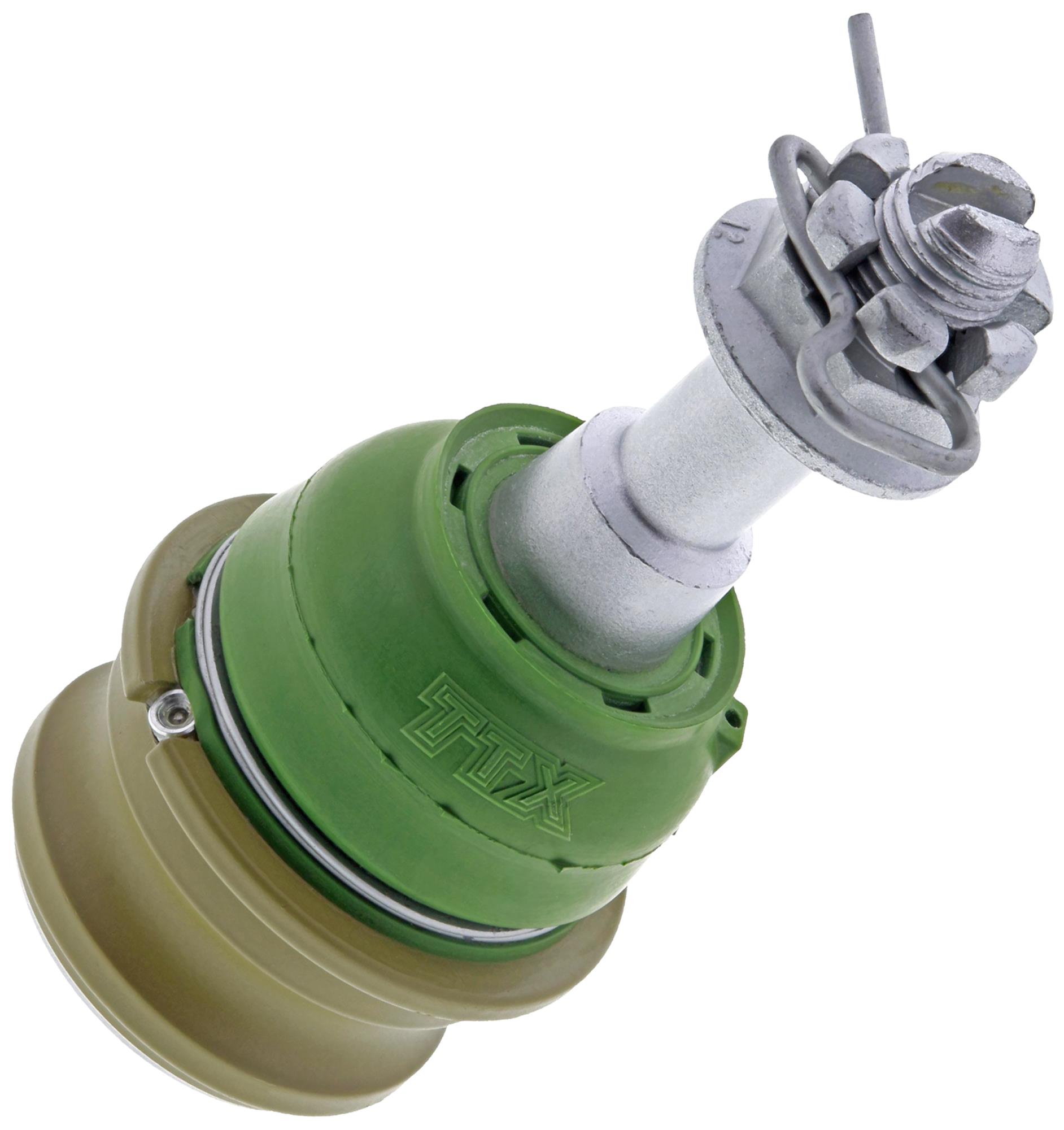

Part No: TXK9513
Ball Joint
Mevotech TTX™ parts are engineered with cutting-edge technology to be the strongest, most durable parts on the market. Built for high-usage commercial and passenger vehicles, SUVs, fleets and working trucks, TTX™ ball joints deliver extreme performance. Plus, innovative Labor Saver™ designs, tools and hardware make installations faster and easier.
Details
- MAXIMUM TOUGHNESS: Get longer-lasting performance from patented sintered bearings.

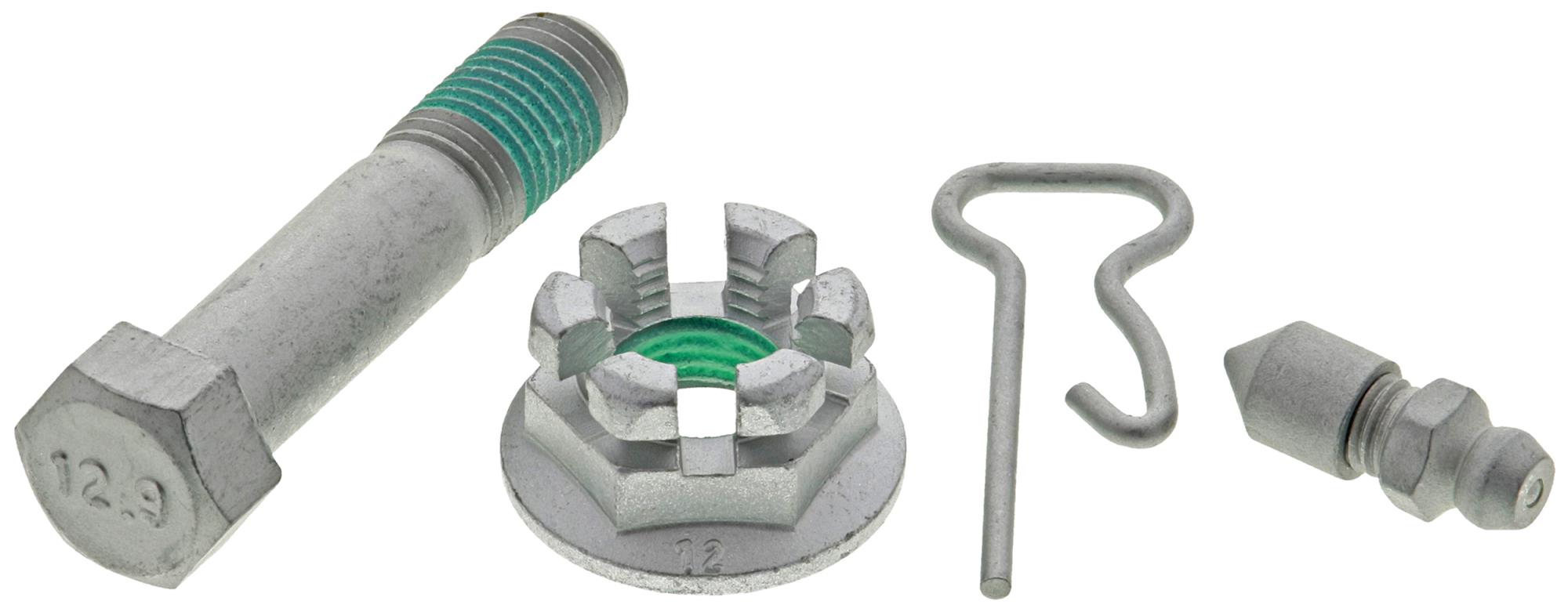

- QUICK AND EASY INSTALLATION: Simply secure ball joint to the vehicle with part specific slotted castle nut & easy snap cotter pin provided.
- SIMPLE TO SERVICE: Make servicing a snap with the flush style SAE grease fitting included.
- ACCURATE FIT: Easily and accurately press fit the ball joint into the larger flange diameter.
- A STRONGER BOND: Keep fasteners secure and vibration resistant with pre-applied nylok thread adhesive.
Product Specifications
- Ball Joint AssemblyYes
- Mounting TypePress-In
- Bearing TypeSintered Metal
- Pre-GreasedYes
- GreaseableYes
- Grease Fitting IncludedYes
- AdjustableNo
- Dust Boot IncludedYes
- Dust Boot MaterialNeoprene
- Boot ColorGreen
- Stud TypeThreaded
- Stud Thread SizeM12 – 1.25
- Mounting Hardware IncludedYes
- Castle Nut IncludedYes
- Cotter Pin IncludedYes
- Mounting Bolts IncludedYes
Product Fit Check
Buyers Guide
| Make | Model | Year Range | Position | Configuration | Application Notes | Vehicle QTY |
|---|---|---|---|---|---|---|
| Subaru | Baja | 2006-2003 | Front Lower | 2 | ||
| Subaru | Crosstrek | 2024-2016 | Front Lower | 2 | ||
| Subaru | Forester | 2025-1998 | Front Lower | 2 | ||
| Subaru | Impreza | 2015-1993 | Front Lower | 2 | ||
| Subaru | Legacy | 2024-1990 | Front Lower | 2 | ||
| Subaru | Outback | 2024-2000 | Front Lower | 2 | ||
| Subaru | WRX | 2021-2013 | Front Lower | 2 | ||
| Subaru | WRX STI | 2021-2013 | Front Lower | 2 | ||
| Subaru | XT | 1989 | Front Lower | 2 | ||
| Subaru | XT | 1991-1990 | Front Lower | 2.7L, H6 | H6 2.7L, Engine CC: 2672, Engine CID: – | 2 |
| Subaru | XV Crosstrek | 2015-2013 | Front Lower | 2 |
